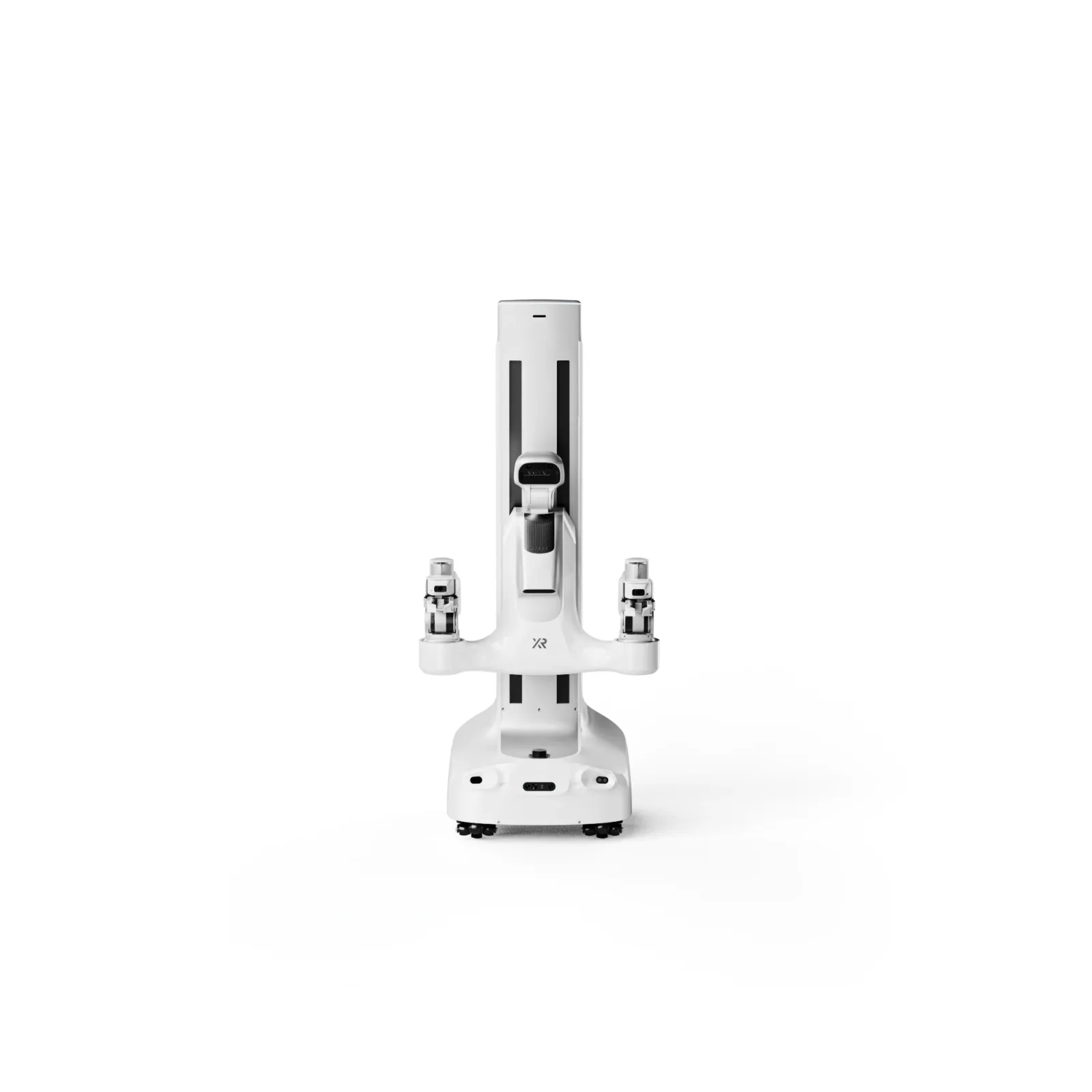

Quantum No.1 Pro
Built by X Square Robots · China
The Quantum No.1 Pro is a Mobile Manipulator developed by X Square Robots (China), launched 2025. Key specifications: arm payload 3 kg, arm reach 649 mm, arm dof 6, repeatability ±1 mm.
RoboScore
Strong evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Ranked #15 of 42 in the Mobile Manipulator standing.
See the standingWhere it has stood45 days · best #14 · worst #18
2 days of that is about Quantum No.1 Pro itself:
- 14 Aug RoboScore rose 0.61 — its evidence changed.
- 7 Sept RoboScore rose 1.36 — its evidence changed.
One reading per day since 10 Aug, when the current ordering began. The rank above is the reading for 24 Sept, taken against 42 robots — the standing itself is live, so a robot added since then counts there and not here yet.
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Quantum No.1 Pro measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
The Quantum No.1 Pro is a general-purpose wheeled dual-arm robot designed for embodied AI research and applications. It features 19 biomimetic degrees of freedom, with a single-arm rated payload of 3 kg and maximum payload of 14 kg (30 seconds). It provides a 1.6-meter vertical workspace and supports multi-level operations on floors, tables, and shelves. The chassis uses dual-wheel differential drive with a maximum movement speed of 1 m/s, can cross 4 cm obstacles, and climb slopes up to 10 degrees. It comes pre-integrated with the WALL-A end-to-end embodied AI foundation model (including open-source version), natively supports ROS2, and provides comprehensive APIs and multi-language SDKs. Sensor fusion enables 360-degree perception via LiDAR, RGBD cameras, ultrasonic, ToF, IMU, fisheye, and wide-angle cameras. It supports both homomorphic robotic arm and VR remote teleoperation modes with 250 Hz low latency. Battery life exceeds 8 hours, with full charge in 1 hour 40 minutes.
At a glance
- Built for manufacturing assembly and research development
- Used across manufacturing, logistics and research academic
- Programmed through python and ROS
- Public API for integration
- Certified to IP68
- Rated for operation at 10°C to 40°C
Buyer decision signals
Viability
Availability
Specifications
Category: Mobile Manipulator- Arm payload
- 3 kg
- Arm reach
- 649 mm
- Arm DOF
- 6
- Repeatability
- ±1 mm
- Navigation
- lidar_slam, vision
- ROS
- Yes
Company profile
- Founded
- 2023
Detailed specifications
What it is built for9
- Applications
- warehouse transport,assembly,inspection,research,teleoperation
- Sub Category
- wheeled humanoid
- Mobility Type
- wheeled
- Humanoid Subtype
- wheeled humanoid
- Industries Served
- manufacturing,logistics,research academic,healthcare,retail service,consumer
- Target Industries
- manufacturing,logistics 3pl,research academic,healthcare,retail service,consumer
- Terrain Capability
- flat indoor,mild incline,rough indoor
- Primary Applications
- manufacturing assembly,research development,other
- Deployment Environment
- indoor
Size & capacity5
- Height Cm
- 169
- Height Mm
- 1690
- Payload Per Arm
- true
- Lifting Capacity Kg
- 6
- Payload Continuous Kg
- 3
Movement & precision6
- Dof Total
- 19
- Dof Per Arm
- 6
- Grip Force N
- 50
- Stair Climbing
- none
- Grip Strength N
- 50
- Obstacle Avoidance
- true
Power & runtime4
- Runtime Hours
- 8
- Charging Method
- tethered
- Charge Time Hours
- 1.67
- Battery Swap Supported
- false
Controls & integration12
- Open Api
- open rest
- Head Cameras
- 3
- Sensor Suite
- lidar,rgbd camera,ultrasonic,tof,imu,fisheye camera,wide angle camera
- Api Available
- true
- Lidar Present
- true
- Sdk Languages
- Python,C++,ROS2
- Air Gap Capable
- true
- Onboard Compute
- Intel Core Ultra 7 155H 16GB RAM 512GB storage
- Network Protocols
- wifi 6,5g,bluetooth,ethernet
- Software Platform
- ROS2
- Vision Processing
- on device
- Programming Interface
- code python,code ros,proprietary app,teleoperation
Safety & certification4
- Operating Temp
- -10°C to 40°C
- Tactile Sensing
- none
- Safety Certification
- IP68
- Human Detection Method
- multi modal
Buying & support6
- Datasheet Url
- Preview PDF online
- Price On Request
- true
- Country Of Origin
- CN
- Is Research Grade
- true
- Availability Status
- available
- Deployment Maturity
- prototype
Other details67
- CPU
- Intel Core Ultra 7 155H
- RAM
- 16GB
- WiFi
- 支持WiFi6、2.4/5G双频
- 公网
- 支持5G
- 存储
- 512G
- 蓝牙
- 支持蓝牙5.2
- Imu Count
- 1
- Wifi Spec
- WiFi6 2.4/5G
- 单点TOF
- 3
- RGBD相机
- 3
- Debug Ports
- HDMI×1, USB×1, RJ45×1
- Ros Support
- ros2 vendor
- Vlm Capable
- onboard small
- IMU传感器
- 1
- Arm Reach Cm
- 64.9
- Gripper Type
- parallel jaw
- 充电速度
- 10%-100% 1h40min
- 存储温度
- -20~60℃
- 存储湿度
- 20%~70%RH（无凝露）
- 工作温度
- -10-40℃
- 工作湿度
- 10%~90%RH（无凝露）
- 广角相机
- 2
- 续航时间
- 8h
- 调试接口
- HDMI*1、USB*1、RJ45*1
- 鱼眼相机
- 2
- Base Payload Kg
- 6
- Cloud Telemetry
- optional
- Payload Peak Kg
- 14
- 全身自由度
- 19
- 单臂自由度
- 6
- 双目RGB相机
- 1
- Cellular Support
- 5G
- Compute Platform
- Intel Core Ultra 7 155H
- Bluetooth Version
- 5.2
- Chassis Length Mm
- 618
- Gripper Stroke Mm
- 0-180
- Shoulder Width Mm
- 658
- Imitation Learning
- multi task
- Neck Yaw Range Deg
- ±90
- 任务负载能力
- 6kg
- 垂直操作空间
- 0-1.6m
- 底盘移动方式
- 双轮差速驱动
- 最大爬坡能力
- 10°
- 最大物理尺寸
- 肩宽 658mm 身高1690mm 底盘长度618mm
- 最大移动速度
- 1m/s
- 最大负载能力
- 7kg（30s）
- 最大越障能力
- 4cm
- 末端夹爪行程
- 0-180mm
- 直线升降能力
- 背部升降机构
- 脖颈运动范围
- 俯仰±30°，偏航±90°
- 超声波传感器
- 6
- Charging Time Hours
- 1.67
- Programming Methods
- hand coded,teleop demonstration,vlm language,imitation learning ui
- Tool Use Capability
- vendor demo
- Neck Pitch Range Deg
- ±30
- Operating Temp Max C
- 40
- Operating Temp Min C
- -10
- Teleoperation Method
- vr headset,full body suit
- Bimanual Coordination
- full bimanual
- 末端最大夹持力
- 50N
- 机械臂运动范围
- J1：-160°~160°；J2：0°~210°；J3：-160°~0；J4：-90°~90°；J5：-90°~90°；J6：-110°~110°；
- Degrees Of Freedom Total
- 19
- 机械臂重复定位精度
- 1mm
- Tethered Operation Available
- false
- Manipulation Repeatability Mm
- 1
- Arm Reach Single No Gripper Mm
- 649
- 最大臂展（单臂不含夹爪）
- 649mm
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
1 other robot in this category has one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with X Square Robots or an authorized seller.
Request a quote — goes straight to X Square Robots.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Compare with peers
More by X Square Robots
Frequently asked questions
- Who makes the Quantum No.1 Pro?
- The Quantum No.1 Pro is developed by X Square Robots, based in China.
- What type of robot is the Quantum No.1 Pro?
- The Quantum No.1 Pro is a Mobile Manipulator made by X Square Robots.
- How much does the Quantum No.1 Pro cost?
- Pricing for the Quantum No.1 Pro is not publicly listed — contact X Square Robots for a quote.
- When was the Quantum No.1 Pro launched?
- The Quantum No.1 Pro was launched in 2025.
- What are the key specifications of the Quantum No.1 Pro?
- Key specifications of the Quantum No.1 Pro: arm payload 3 kg, arm reach 649 mm, arm dof 6, repeatability ±1 mm, navigation lidar_slam, vision.
