Overview

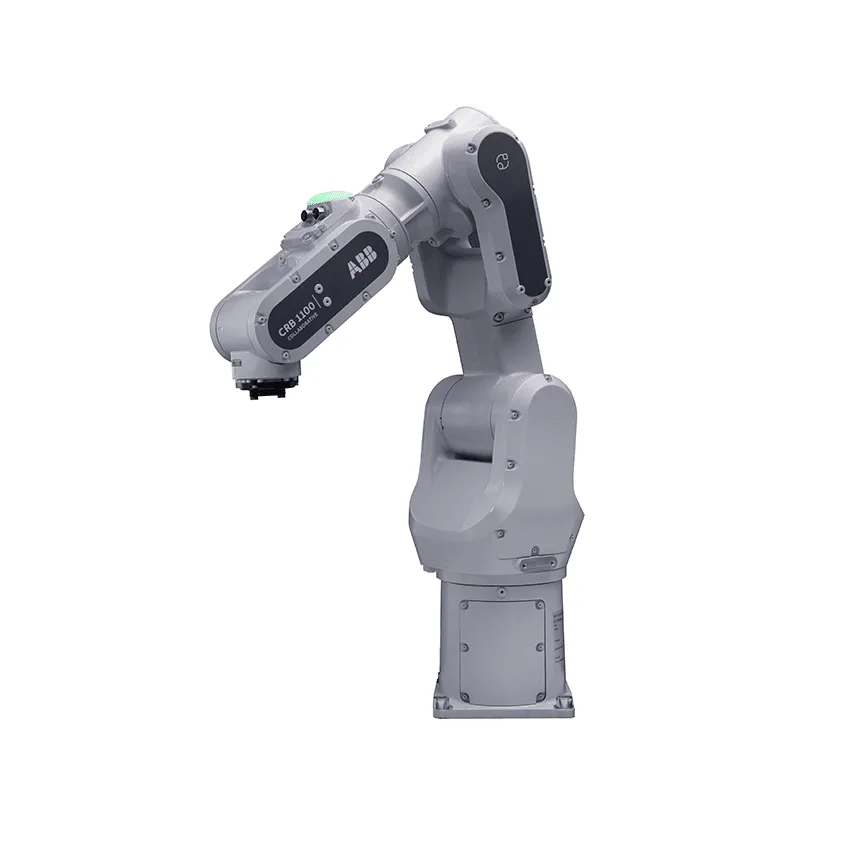

The SWIFTI CRB 1100 is a six-axis collaborative robot manufactured by ABB Ltd's Robotics & Discrete Automation division. With a 4 kg payload capacity, 580 mm reach, and 21 kg weight, it is designed for lightweight assembly, pick-and-place, and grinding and polishing applications. The cobot operates at speeds up to 5.05 m/s and carries an IP40 rating for dust and splash protection.
Flagship features
- Combines ABB’s SafeMove comprehensive safety functionality for safer operation around humans
- Provides five times higher speed than other 4 kg cobots and up to 10 times higher position repeatability
- Integrated air supplies for vacuum grippers, enhancing versatility and performance in various applications
- Ideal for assembly, kitting, material handling, and polishing tasks
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- ≤ 4 kg
- Reach
- 1100 mm
- Repeatability
- ±0.05 mm
- Weight
- 21 kg
- TCP speed
- 5.05 m/s
- IP rating
- IP40
- Safety cert.
- ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- none
Detailed specifications
Other15
- Price Tier
- 20-40K
- Applications
- pick_and_place,assembly,grinding_and_polishing
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Operating Temp
- 5°C to 45°C
- Deployment Notes
- No specific deployment notes provided.
- Mounting Options
- all directions
- Compatible Vision
- FRAMOS Industrial Depth Camera D435e
- Software Platform
- Wizard Easy Programming
- Fieldbus Protocols
- Ethernet,DeviceNet
- Availability Status
- available
- Compatible Grippers
- Robotiq 2F-85
- Extras.Contact Emails
- sales@unchainedrobotics.de,info@unchainedrobotics.de,contact@unchainedrobotics.de
- Programming Interface
- teach_pendant,visual_block
- Additional Information
- - Combines ABB’s SafeMove comprehensive safety functionality for safer operation around humans. - Provides five times higher speed than other 4 kg cobots and up to 10 times higher position repeatability. - Integrated air supplies for vacuum grippers, enhancing versatility and performance in various applications. - Ideal for assembly, kitting, material handling, and polishing tasks.
