Overview

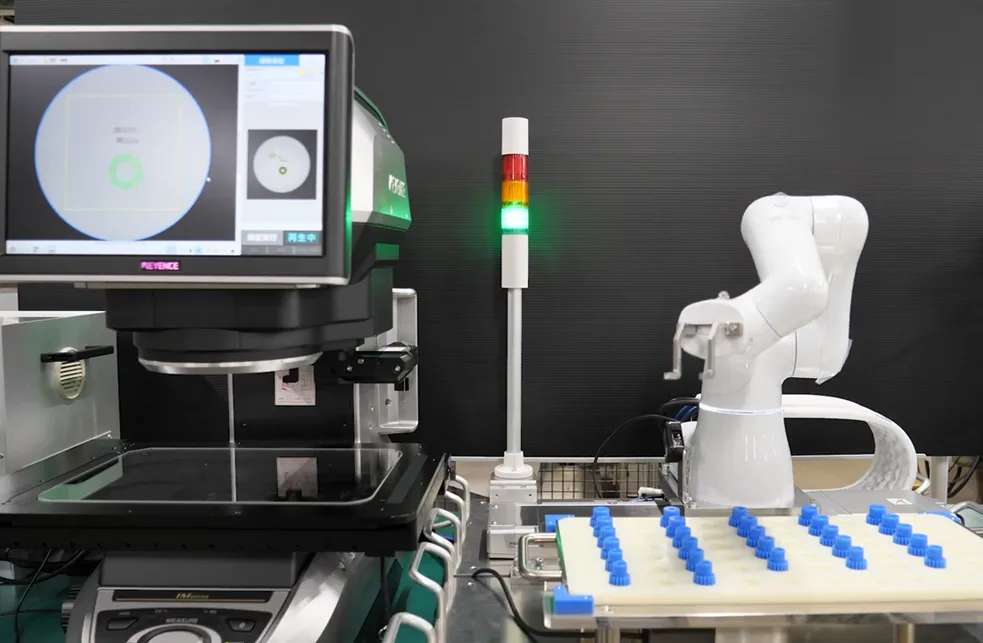

COBOTTA is a collaborative robot designed for inspection process automation and simple task automation. It features ease of use and can be integrated with peripheral equipment for comprehensive process control. The robot is suitable for various applications including inspection, paper feeding, ejection, and other collaborative manufacturing tasks.
Flagship features
- The COBOTTA PRO features a top TCP speed of 2,500 mm/s, making it one of the fastest collaborative robots in the market
- It offers integrated control with the CRC9 robot controller for enhanced functionality
- Designed for both clean and traditional industrial environments, it has a high cleanliness classification (ISO Class 5)
- Custom options include touch sensing soft covers to enhance collaborative work safety
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 0.5 kg
- Reach
- 342 mm
- Repeatability
- ±0.03 mm
- Weight
- 11 kg
- TCP speed
- 0.5 m/s
- IP rating
- IP54
- Safety cert.
- ISO 10218-1:2011, ISO 13849-1:2015, ISO/TS 15066:2016
- Force limiting
- Yes
- F/T sensing
- joint level all
- No-code
- Yes
- Teach pendant
- tablet-style
- ROS 2
- No
- API / SDK
- Yes
Detailed specifications
Motion & kinematics2
- Torque
- 0.5 Nm
- Axis Speeds
- {"base":"0.5","tool":"1.2","elbow":"0.8","wrist":"0.9","shoulder":"0.7"}
Compute1
- Ros Compatible
- true
Other20
- Price Tier
- 40-80K
- Applications
- assembly,inspection
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Contact Emails
- sales@denso-wave.com,info@denso-wave.com,support@denso-wave.com
- Model Variants
- COBOTTA PRO 900,COBOTTA PRO 1300
- Operating Temp
- 0 to 50° C
- Company Country
- JP
- Controller Model
- RC8
- Deployment Notes
- Used in educational environments and production lines, demonstrating effectiveness in direct collaboration with human workers.
- Compatible Vision
- DENSO Robotics cameras
- Industries Served
- automotive,electronics,pharmaceutical
- Software Platform
- Cobotta World
- Training Required
- basic_<1day
- Fieldbus Protocols
- EtherCAT,ProfiNET,EtherNet IP
- Availability Status
- available
- Compatible Grippers
- vacuum gripper
- Countries Available
- JP
- Programming Interface
- drag_and_drop
- Additional Information
- - The COBOTTA PRO features a top TCP speed of 2,500 mm/s, making it one of the fastest collaborative robots in the market. - It offers integrated control with the CRC9 robot controller for enhanced functionality - Designed for both clean and traditional industrial environments, it has a high cleanliness classification (ISO Class 5). - Custom options include touch sensing soft covers to enhance collaborative work safety.
