Overview

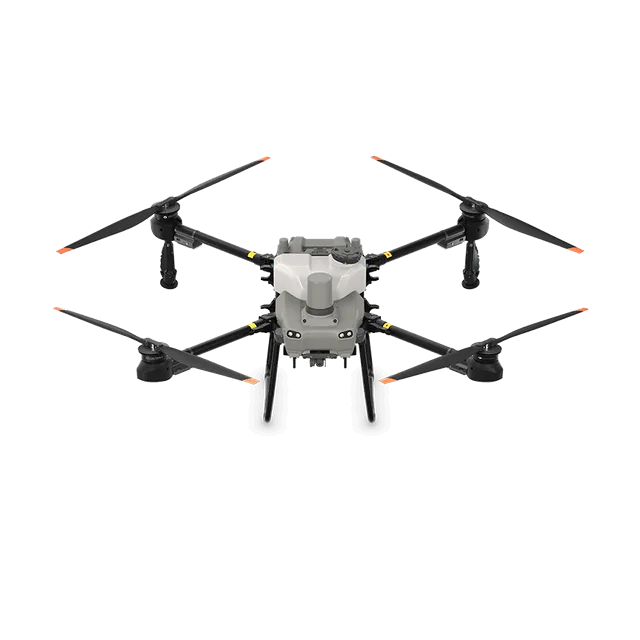

DJI AGRAS T25 is a compact agricultural drone designed for solo operation. It can carry a spraying payload of up to 20 kg or a spreading payload of up to 25 kg. It is equipped with front and rear phased array radars, a binocular vision system, and a high-resolution FPV gimbal camera. It supports surveying, spraying, and spreading missions across various terrains. It covers up to 12 hectares per hour for field operations and can spread 1,000 kg of granules per hour. It features a foldable design with 21% smaller unfolded dimensions than its predecessor. It includes a dual atomizing spraying system with flow rate up to 16 L/min (2-sprinkler) or 24 L/min (4-sprinkler optional). The spreading system has a 35 L hopper with real-time weighing. The drone uses O3 transmission with 2 km range and optional DJI Relay. It supports multidirectional obstacle sensing and terrain following up to 50 degrees. It is compatible with D6000i generator and DB800 battery with 9-min fast charging (30% to 95%).
Detailed specifications
Power & battery2
- Battery Capacity Ah
- 15.5
- Charger Max Power W
- 5400
Other15
- Charging Time Min
- 9
- Transmission System
- O3 (quad-antenna)
- Generator Ac Output W
- 1500
- Spread Flow Rate Kgpm
- 72
- Spraying Tank Capacity Kg
- 20
- Spreading Tank Capacity L
- 35
- Field Coverage Ha Per Hour
- 12
- Spreading Rate Kg Per Hour
- 1000
- Obstacle Bypassing Direction
- forward
- Terrain Following Max Degrees
- 50
- Mapping Speed Hectare Per 10min
- 13
- Spray Flow Rate 2 Sprinkler Lpm
- 16
- Spray Flow Rate 4 Sprinkler Lpm
- 24
- Orchard Mapping Time Min Per 5 Ha
- 10
- Remote Controller Screen Size Inch
- 7
