Overview

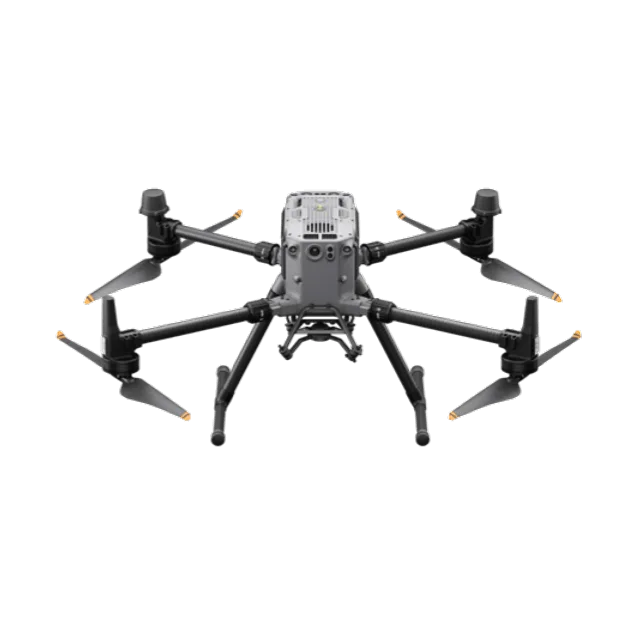

The Matrice 350 RTK is DJI's upgraded flagship industrial drone platform. It features a 55-minute max flight time, IP55 protection rating, DJI O3 Enterprise Transmission with triple-channel 1080p HD live feeds and 20 km max transmission range, 4G enhanced transmission, a new TB65 dual-battery system with 400 charge cycles, 6-directional sensing and positioning, night-vision FPV camera, multi-payload support (up to 2.7 kg), CSM radar for obstacle avoidance, and multi-layered redundancy design. It is designed for aerial operations such as public safety, inspection, mapping, and surveying.
Detailed specifications
Power & battery7
- Battery Model
- TB65
- Battery Cycles
- 400
- Battery Hot Swap
- true
- Rc External Battery
- WB37
- Battery Auto Heating
- true
- Battery Station Model
- BS65
- Battery Station Modes
- Storage Mode,Ready-to-Fly Mode
Sensors2
- Fpv Camera
- Night-Vision FPV Camera
- Csr Radar Range M
- 30
Safety & certifications1
- Rc Ip Rating
- IP54
Other23
- Notes
- Activation required via DJI Pilot 2; all data from controlled environment tests; varies by environment/usage/firmware
- Software
- DJI Pilot 2,DJI FlightHub 2,DJI Terra
- Redundancy
- Multi-layered redundancy design (aircraft and sensor systems)
- Sdk Available
- Payload SDK,Mobile SDK,Cloud API
- Gimbal Support
- single downward, dual downward, single upward (up to 3 payloads)
- Max Payload Kg
- 2.7
- Sensing System
- 6-Directional Sensing & Positioning (binocular vision + infrared)
- Propeller Options
- Standard 2110s,High-Altitude Low-Noise Propellers (for 3000-7000m)
- Remote Controller
- DJI RC Plus
- Live Feed Channels
- triple-channel 1080p HD
- Payload Interfaces
- E-Port,SkyPort V2,X-Port
- Rc Brightness Nits
- 1200
- Rc Operating Hours
- 6
- Compatible Payloads
- Zenmuse H30 Series,Zenmuse H20 Series,Zenmuse H20N,Zenmuse P1,Zenmuse L2,Zenmuse S1,Zenmuse V1,Third-party payloads via Payload SDK
- Max Flight Time Min
- 55
- Rc Screen Size Inch
- 7
- Transmission System
- DJI O3 Enterprise Transmission
- Max Flight Altitude M
- 7000
- Data Security Features
- Media Data Encryption,Local Data Mode,One-Tap Clear All Device Data,AES-256 Video Transmission Encryption
- Operating Temp Celsius
- -20 to 50
- Accessories Sold Separately
- CSM Radar,4G Dongle Kit,High-Altitude Low-Noise Propellers,Gimbal connector,SkyPort,X-Port
- Max Transmission Distance Km
- 20
- Max Wind Speed Resistance Ms
- 12
