The Emerald is a Industrial Arm developed by Eddyfi Technologies (Canada). Key specifications: safety cert. ISO 18563-1, ISO 22232-1.
RoboScore
Speculative — thin evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
5 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 5 scored · blanks don't count
Ranked in the Industrial Arm standing, against 773 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Emerald measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview

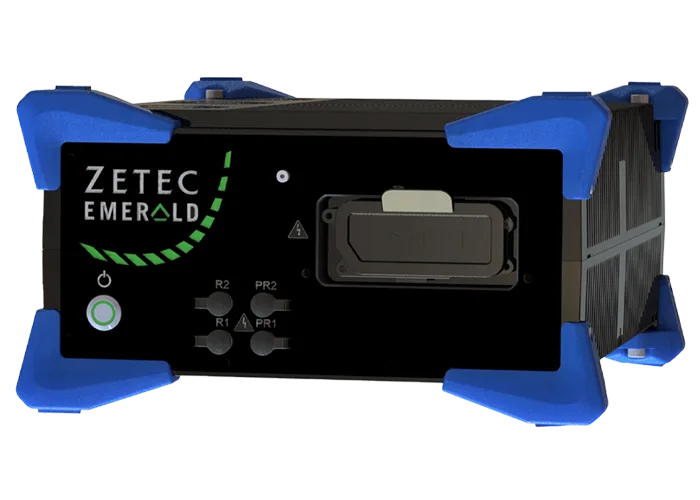

Emerald is a compact, phased array ultrasonic system that offers extreme performance. It is designed to handle the most challenging inspection conditions found in oil & gas, power generation, in-service railway, manufacturing, heavy industry, and aerospace.
Buyer decision signals
Viability
10 Years of Advancing NDT
Specifications
Detailed specifications pending — claim this page to add yours.
Company profile
- Funding raised
- $27.4M
- Founded
- 2009
Detailed specifications
Safety & certification3
- Operating Temp
- -10C to 45C (14F to 113F)
- Temperature Range Max C
- 45
- Temperature Range Min C
- -10
Buying & support1
- Datasheet Url
- Preview PDF online
Other details41
- Gain
- Up to 124 dB (0.1 dB step), 76 dB Analog / 48 dB Digital
- Voltage
- 100 to 240 VAC
- Filtering
- Analog / Digital (FIR)
- Frequency
- 50 or 60 Hz
- Air Intake
- No
- Acquisition
- A-Scan/Peak/Conditional data recording
- Maximum PRF
- ≤ 30 kHz
- Firing Modes
- FMC, PWI, Sparse
- PA Connector
- 1x IPEX type (2x IPEX or 2x ZPAC with splitter module)
- Rectification
- Digital
- UT Connectors
- 4 x LEMO 00 (8 additional LEMO 00 with splitter module)
- I/O Capability
- 12 inputs, 9 outputs
- Max Focal Laws
- 2048
- Input Impedance
- 50 Ω
- Data Compression
- 1, 2, 4, 8, 16
- Digitizing Range
- 800%
- Max A Scan Range
- 65k samples
- Bandwidth ( 3 DB)
- PA: 0.5 to 18 MHz, UT: 0.5 to 22.5 MHz
- Data Connectivity
- Ethernet 5 GBit/second
- Measurement Gates
- 6 + 1 synchronization gate (peak, crossing, auto-crossing, homing)
- TCG Dynamic Range
- 40 dB
- Encoder Interfaces
- 3 quadrature-type
- Max Data File Size
- Limited by hard drive
- Amplitude Resolution
- 14-bit elementary A-Scan, 16-bit PA
- Digitizing Frequency
- 100 MHz
- Channel Configuration
- 64/128 PR
- Max Number Of Samples
- 16k
- Instrument Calibration
- Compliant with ISO 18563-1 / ISO 22232-1
- Acquisition Triggered On
- Free running, encoder position, external signal
- Dimensions (W × H × D)
- 294 × 162 × 373 mm (11.5 × 6.4 × 14.7 in)
- Automated Probe Detection
- Yes (with Eddyfi Technologies' probe ID chip)
- Simultaneous FMC Channels
- 2
- Storage Temperature Range
- -40C to 70C (-40F to 158F)
- TFM Frame Size (Off Line)
- Unlimited
- TFM Frame Size (On Board)
- 1M points
- Automated Scanner Detection
- Yes (with Eddyfi Technologies' probe ID chip)
- Operating Temperature Range
- -10C to 45C (14F to 113F)
- Parallel PA Channels Processing
- Up to 2 channels
- Maximum Applied Voltage (50 Ω Load)
- PA: 150Vpp (Bipolar) / 75V (Unipolar) UT: 200V
- Maximum Number Of Reconstruction Channels
- 128
- Maximum Simultaneous TFM Frames (On Board)
- 2 (up to 1M points per frame)
