The QuartZ is a Industrial Arm developed by Eddyfi Technologies (Canada). Key specifications: programming proprietary app, industries Manufacturing, Tubes, Pipes and Plates, Aerospace.
RoboScore
Speculative — thin evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
5 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 5 scored · blanks don't count
Ranked #732 of 971 in the Industrial Arm standing.
See the standingWhere it has stood72 days · best #485 · worst #732
Nothing changed about this robot itself — what you can see is the field shifting around it, or its maker's news rising and ageing.
One reading per day since 3 Aug, when the current ordering began. The rank above is the reading for 14 Oct, taken against 971 robots — the standing itself is live, so a robot added since then counts there and not here yet.
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how QuartZ measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview

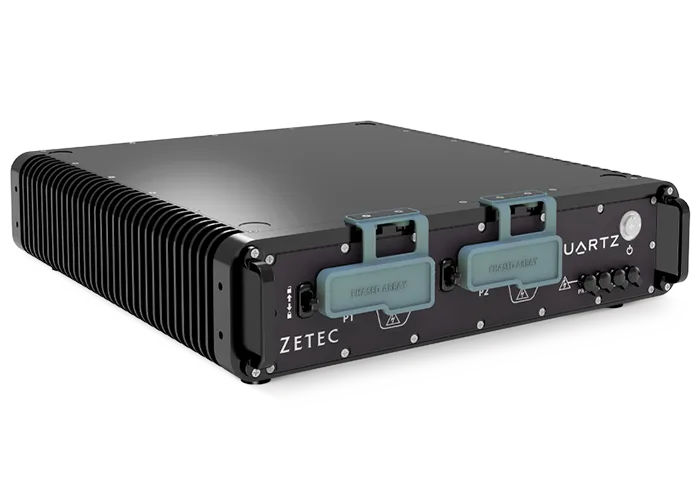

QuartZ is the answer for complex and high-speed inspections and is optimally designed for the oil & gas, manufacturing, and transportation markets. QuartZ achieves an excellent balance between speed, power, and flexibility for the most complex inspection environments and applications. QuartZ is ideal for inspecting tubes, pipes, plates or forgings, composite materials as well as train wheels, rails, and axles. When combined with UltraVision software’s legendary power and software development kit (SDK) flexibility, QuartZ is the perfect choice for creating custom inspection solutions.
At a glance
- Built for spot welding, arc welding and material handling
- Used across automotive, electronics and food beverage
- Programmed through UltraVision
- Public API for integration
Buyer decision signals
Viability
10 Years of Advancing NDT
Specifications
Detailed specifications pending — claim this page to add yours.
Company profile
- Founded
- 2009
Detailed specifications
What it is built for3
- Industries
- automotive,electronics,food beverage,pharmaceutical,metal fabrication,plastics,logistics,aerospace,general manufacturing
- Applications
- tubes,pipes,plates,aerospace,transportation
- Primary Applications
- spot welding,arc welding,material handling,assembly,painting,palletizing
Sensing & perception2
- Sensor Suite
- Ultrasonic sensors,Phased Array channels,UT channels
- Ultrasonic Present
- Yes
Controls & integration3
- Api Available
- Yes
- Software Platform
- UltraVision
- Connectivity Options
- ethernet
Buying & support1
- Datasheet Url
- Preview PDF online
Other details12
- Pulser
- {"pulse_width":"25 ns to 500 ns","pulse_amplitude_pa":"35 V to 100 V","pulse_amplitude_ut":"50 V to 200 V"}
- Weight
- 8.34 Kg (18 lb)
- Voltage
- 120 VAC or 240 VAC
- Frequency
- 50 Hz or 60 Hz
- Dimensions
- 490 × 420 × 90mm (19.3 × 16.5 × 3.5 in)
- Ut Channels
- 2 channels (in Pulse/Echo or Pitch/Catch configurations
- Connectivity
- {"encoder":"2 axes (quadrature, clock direction)","data_interfaces":"Ethernet 1000 Base-T"}
- Maximum Power
- 75 VA
- Pa Firing Modes
- Up to 32 consecutive elements. Up to two apertures of 16 consecutive elements
- Data Acquisition
- {"prf":"Up to 20 kHz","filters":"Analog / Digital band-pass, high-pass and low-pass","compression":"1, 2, 4, 8, and 16","a_scan_length":"Up to 16,384 points","data_throughput":"Up to 30 MB/s","parallel_firing":"2 beams","maximum_data_file":"20 GB","measurement_gates":"4 gates + 1 synchronization gate","real_time_averaging":"1, 2, 4, 8, and 16","digitizing_frequency":"25 MHz, 50 MHz or 100 MHz","gain_setting_range_pa":"70 dB (analog) + 30 dB (digital)","gain_setting_range_ut":"70 dB (analog) + 24 dB (digital)","bandwidth_at_minus_3_db":"500 kHz to 18 MHz","maximum_number_of_samples":"16384","maximum_number_of_focal_laws":"1024","summed_data_amplitude_resolution":"16 bits"}
- Phased Array Channels
- 32:128 PR
- Phased Array Connector
- 2 x ZPAC connector (custom ZIF with latch). Allows connecting 2 probes without splitter. Automatic probe recognitions (with Eddyfi Technologies' probes).
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
4 other robots in this category have one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Eddyfi Technologies or an authorized seller.
Request a quote — goes straight to Eddyfi Technologies.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- 2019Milestone10 Years of Advancing NDT
- 2009LaunchLaunch of ECA Technology
- 2009FundingEddyfi Technologies Founded
- —PartnershipGlobal Expansion
- —LaunchEddyfi unveils VersaTrax robotics inspection technology
- —DeploymentABrio regularly uses VersaTrax for sewer inspection
Compare with peers
More by Eddyfi Technologies
Eddyfi Technologies in the news
the maker1 event · last 12 months
Eddyfi redefines non-destructive testing with sensors and robotics
Eddyfi Technologies in the news
the maker1 event · last 12 months
News about Eddyfi Technologies, the maker — not about this robot specifically, except rows marked this robot. Collected and classified independently across 1 outlet, so a maker cannot add to it. It never changes this robot's RoboScore — the evidence half of the RoboIndex — and it can move it up a board by at most 15 points. See all Eddyfi Technologies news
Frequently asked questions
- Who makes the QuartZ?
- The QuartZ is developed by Eddyfi Technologies, based in Canada.
- What type of robot is the QuartZ?
- The QuartZ is a Industrial Arm made by Eddyfi Technologies.
- How much does the QuartZ cost?
- Pricing for the QuartZ is not publicly listed — contact Eddyfi Technologies for a quote.
- What are the key specifications of the QuartZ?
- Key specifications of the QuartZ: programming proprietary app, industries Manufacturing, Tubes, Pipes and Plates, Aerospace.
