The Panther 2 is a Industrial Arm developed by Eddyfi Technologies (Canada). Key specifications: programming , industries Aerospace, Aircraft and Aerospace NDT.
Robo Index
Speculative — thin evidence
5 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 5 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Panther 2 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview

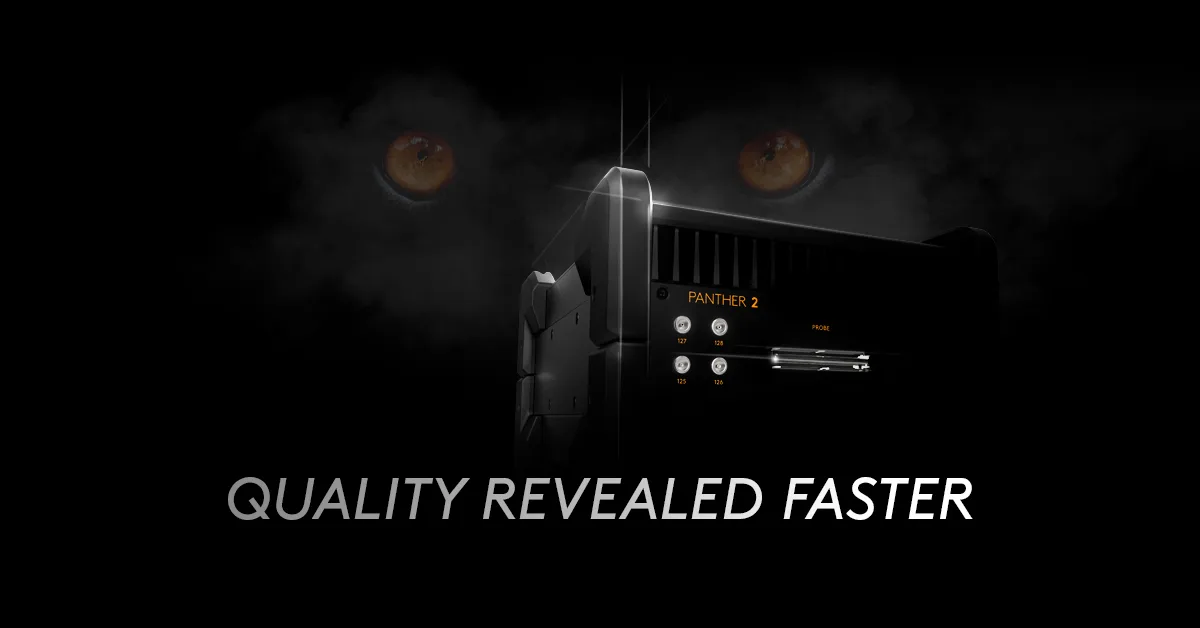

Panther™ 2 by Eddyfi Technologies is the ultimate phased array ultrasonic testing (PAUT) instrument with a complete total focusing method (TFM) toolbox delivering data results faster than any other commercially available solution. With advanced inspection data results made accessible with a complete software ecosystem to suit specific needs, including an open software development kit (SDK), Panther 2 is your go-to for flexible and scalable testing requirements.
Buyer decision signals
Viability
10 Years of Advancing NDT
Specifications
Detailed specifications pending — claim this page to add yours.
Company profile
- Funding raised
- $27.4M
- Founded
- 2009
Detailed specifications
Power & battery2
- Power Supply
- 110–240 VAC, 50–60 Hz
- Voltage Amplitude
- Maximum 100 V with 1 V step
Sensors2
- Maximum PRF
- Up to 30 kHz
- Maximum Input Signal
- 1.8 Vpp
Compute1
- Crosstalk Between Two Channels
- < 50 dB
Other21
- Gain
- Up to 120 dB (0.1 dB step)
- Views
- A-scan, B-scan, C-scan, D-scan, echodynamic, top, side, front, 3D
- Weight
- 6 kg (13.2 lbs)
- Applications
- Phased Array Weld Inspection,Welding Defects
- Data Transfer
- USB3 or RJ45 cable
- Datasheet Url
- Preview PDF online
- Configurations
- 32:128PR, 64:64PR, 64:128PR, 256:256PR with or without TFM
- Operating Temp
- -10-50°C (14-120°F)
- Amplitude Range
- Up to 800%
- Frequency Range
- 0.4-20 MHz
- Input Impedance
- 50 Ω
- Analog Amplifier
- Ultralow noise amplifier
- Storage Temperature
- -10-60°C (14-140°F)
- Acquisition Triggers
- Time, event, encoder
- Operating Temperature
- -10-50°C (14-120°F)
- Dimensions (W × H × D)
- 298 × 220 × 159 mm (11.7 × 8.7 × 6.3 in)
- FMC/PWI Data Acquisition
- Post-Process TFM Reconstruction
- Inspection Data File Size
- Hard drive limit
- A Scan/Peak Data Recording
- 800% amplitude range
- Bipolar Square Pulse Width
- 30 ns to 2,000 ns
- CAD Geometry With CIVA™™
- Software Compatibility
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Eddyfi Technologies or an authorized seller.
Request a quote — goes straight to Eddyfi Technologies.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- 2019Milestone10 Years of Advancing NDT
- 2009LaunchLaunch of ECA Technology
- 2009FundingEddyfi Technologies Founded
- —PartnershipGlobal Expansion
- —LaunchEddyfi unveils VersaTrax robotics inspection technology
- —DeploymentABrio regularly uses VersaTrax for sewer inspection
Compare with peers
More by Eddyfi Technologies
Frequently asked questions
- Who makes the Panther 2?
- The Panther 2 is developed by Eddyfi Technologies, based in Canada.
- What type of robot is the Panther 2?
- The Panther 2 is a Industrial Arm made by Eddyfi Technologies.
- How much does the Panther 2 cost?
- Pricing for the Panther 2 is not publicly listed — contact Eddyfi Technologies for a quote.
- What are the key specifications of the Panther 2?
- Key specifications of the Panther 2: programming , industries Aerospace, Aircraft and Aerospace NDT.
