Overview

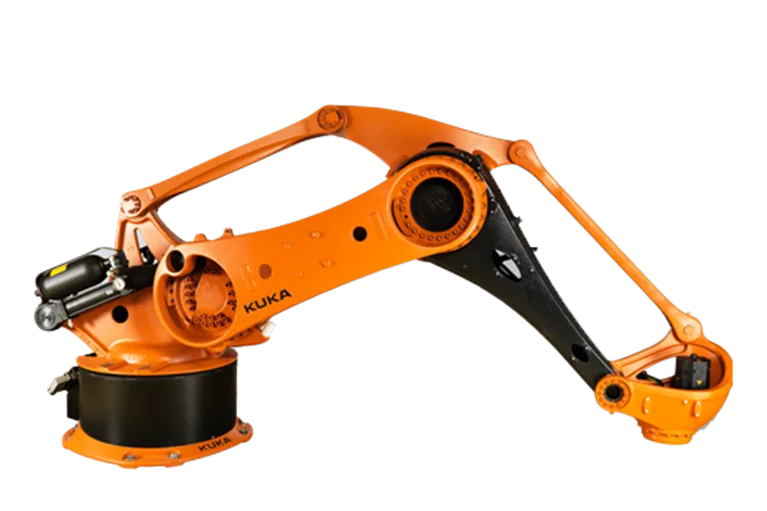

The KR 700 PA is designed for extremely heavy payload applications, managing up to 700 kg, making it invaluable in automotive production and other heavy industries.
Flagship features
- Designed specifically for high-speed, heavy-load palletizing applications
- Can handle 15 cycles per minute, emphasizing speed for high throughput
- Mountable on a pedestal or directly on the floor, offering installation flexibility
- The 'KR C2' controller is a legacy controller, but the robot itself is current for its specific heavy-palletizing niche
Specifications
Category: Industrial Arm- Arm class
- palletizing
- Axes
- 4
- Payload
- 700 kg
- Reach
- 3320 mm
- Repeatability
- ±0.08 mm
- Weight
- 2850 kg
- Mounting
- floor, pedestal
- Controller
- KR C2
- Programming
- teach pendant
- Tool flange
- ISO 9409-1
- Safety cert.
- IP65
- Force limiting
- No
- Maturity
- scaled
- Industries
- logistics
Detailed specifications
Motion & kinematics1
- Dof
- 4
Other9
- Speed
- 15
- Applications
- palletizing
- Cycle Time S
- 4
- Sub Category
- palletizing
- Datasheet Url
- View Link
- Model Variants
- KR 700 KR C2
- Company Country
- DE
- Procedure Types
- Palletizing
- Additional Information
- - Designed specifically for high-speed, heavy-load palletizing applications. - Can handle 15 cycles per minute, emphasizing speed for high throughput. - Mountable on a pedestal or directly on the floor, offering installation flexibility. - The 'KR C2' controller is a legacy controller, but the robot itself is current for its specific heavy-palletizing niche.
