Overview

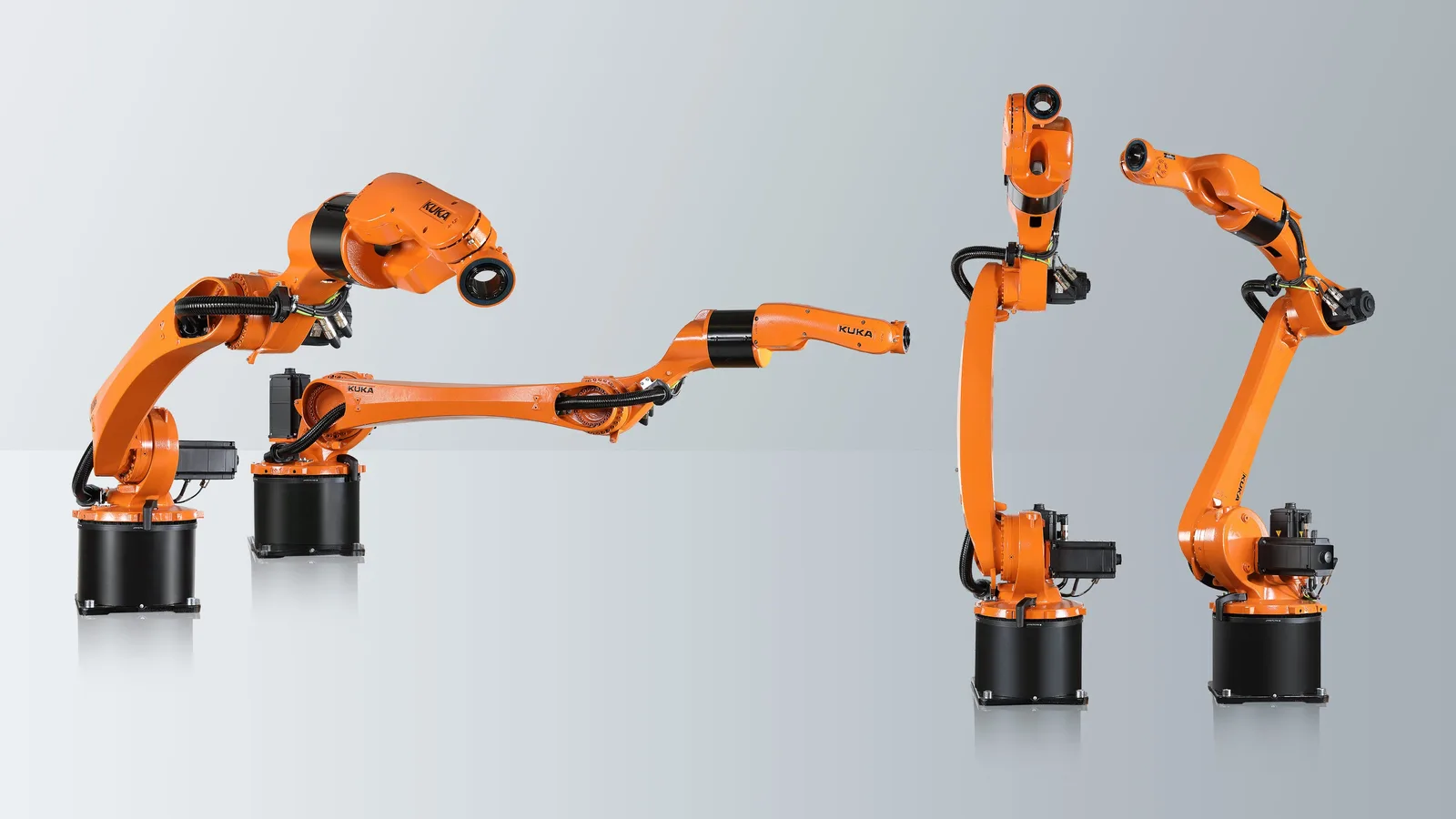

KUKA KR CYBERTECH ARC is a specialized arc welding robot designed for high-reach welding applications. With an 8 kg payload capacity and 2101 mm maximum reach, it provides exceptional coverage and precision for complex welding tasks in automotive, heavy equipment, and industrial manufacturing.
Specifications
Category: Industrial Arm- Arm class
- welding
- Axes
- 6
- Payload
- ≤ 8 kg
- Reach
- ≤ 2010 mm
- Repeatability
- ±0.04 mm
- IP rating
- IP 54
- Mounting
- Angle, Ceiling, Floor
- Controller
- KR C5
- Programming
- teach pendant
- Tool flange
- Hollow Wrist
- Safety cert.
- IP 54, IP 65
- Force limiting
- No
- Maturity
- commercial
- Industries
- automotive, electronics manufacturing
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Max Joint Speed Deg S
- 630
Compute1
- Ros Compatible
- false
Other10
- Price Tier
- 40-80K
- Applications
- arc_welding,pick_and_place,machine_loading/unloading
- Sub Category
- arc_welding
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Model Variants
- KR 6 R1840-2 arc HW,KR 6 R2010-2 arc HW E,KR 8 R1440-2 arc HW,KR 8 R1440-2 arc HW E,KR 8 R1640-2 arc HW
- Company Country
- DE
- Fieldbus Protocols
- ethernet_ip,profinet,devicenet
- Availability Status
- available
- Additional Information
- Newest Kuka controller with advanced safety and performance features,Integrated software firewall for network security,Maintenance-free cooling system,High compatibility with previous KUKA programs,Designed for 400 – 480 VAC power supply
