Overview

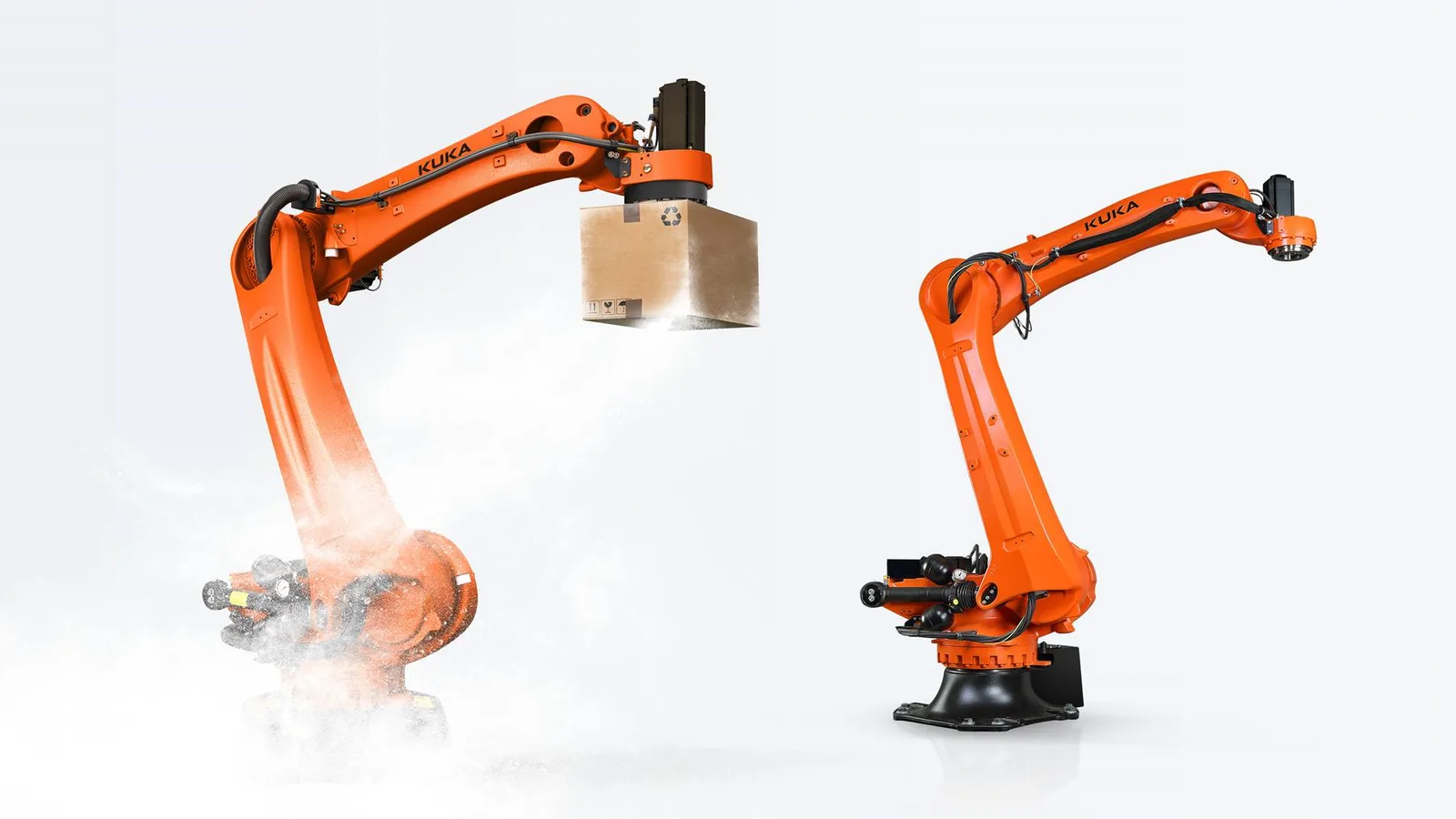

The KR QUANTEC portfolio of high payload robots delivers success with the best reach and payload in this category. With an all-purpose design, it is built to work in virtually any market segment, from automotive to foundry to medical. A reliable, versatile and efficient high-quality solution featuring a modular system with flexible robots, fast delivery times and low total cost of ownership. The robots offer the capability to upgrade payloads in the field and deliver ideal process quality through Motion Modes software add-ons.
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 6
- Payload
- 120 kg
- Reach
- 2701 mm
- Repeatability
- ±0.05 mm
- Weight
- 1150 kg
- IP rating
- IP 65, IP 67
- Mounting
- floor, ceiling
- Controller
- KR C5
- Programming
- visual block,code ros
- Safety cert.
- IP65, IP67
- Force limiting
- Yes
- Maturity
- commercial
- Industries
- automotive, foundry, medical
Detailed specifications
Motion & kinematics1
- Dof
- 5
Compute1
- Ros Compatible
- false
Other20
- Industries
- healthcare
- Price Tier
- 80-150K
- Applications
- palletizing
- Sub Category
- palletizing
- Api Available
- false
- Pricing Model
- purchase
- Model Variants
- KR 120 R3200 PA,KR 120 R3200 PA arctic,KR 120 R3200 PA-HO,KR 140 R3200-2 PA,KR 140 R3200-2 PA-HO,KR 180 R3200 PA,KR 180 R3200 PA arctic,KR 180 R3200 PA-HO,KR 180 R3200-2 PA,KR 180 R3200-2 PA-HO,KR 240 R3200 PA,KR 240 R3200 PA arctic,KR 240 R3200 PA-HO,KR 240 R3200-2 PA,KR 240 R3200-2 PA-HO
- Operating Temp
- -30°C to 45°C
- Company Country
- DE
- Deployment Notes
- The KR QUANTEC series is suitable for use in various industries including automation, manufacturing, and more. It has notable deployments in automotive and foundry sectors.
- Price On Request
- true
- Software Platform
- KR C5
- Training Required
- basic_<1day
- Availability Status
- available
- Primary Applications
- visual_inspection,assembly
- Additional Information
- Best-in-class performance for conventional and digitized environments.,Process-optimized motion modes available for specific applications.,ESD protected for handling sensitive electronic components.,Low total cost of ownership with reduced downtime.,Rapid deployment suited for various industrial applications.
- Internal Cable Routing
- through_arm
- Service Network Density
- global
- Temperature Range Max C
- 45
- Temperature Range Min C
- -30
