Overview

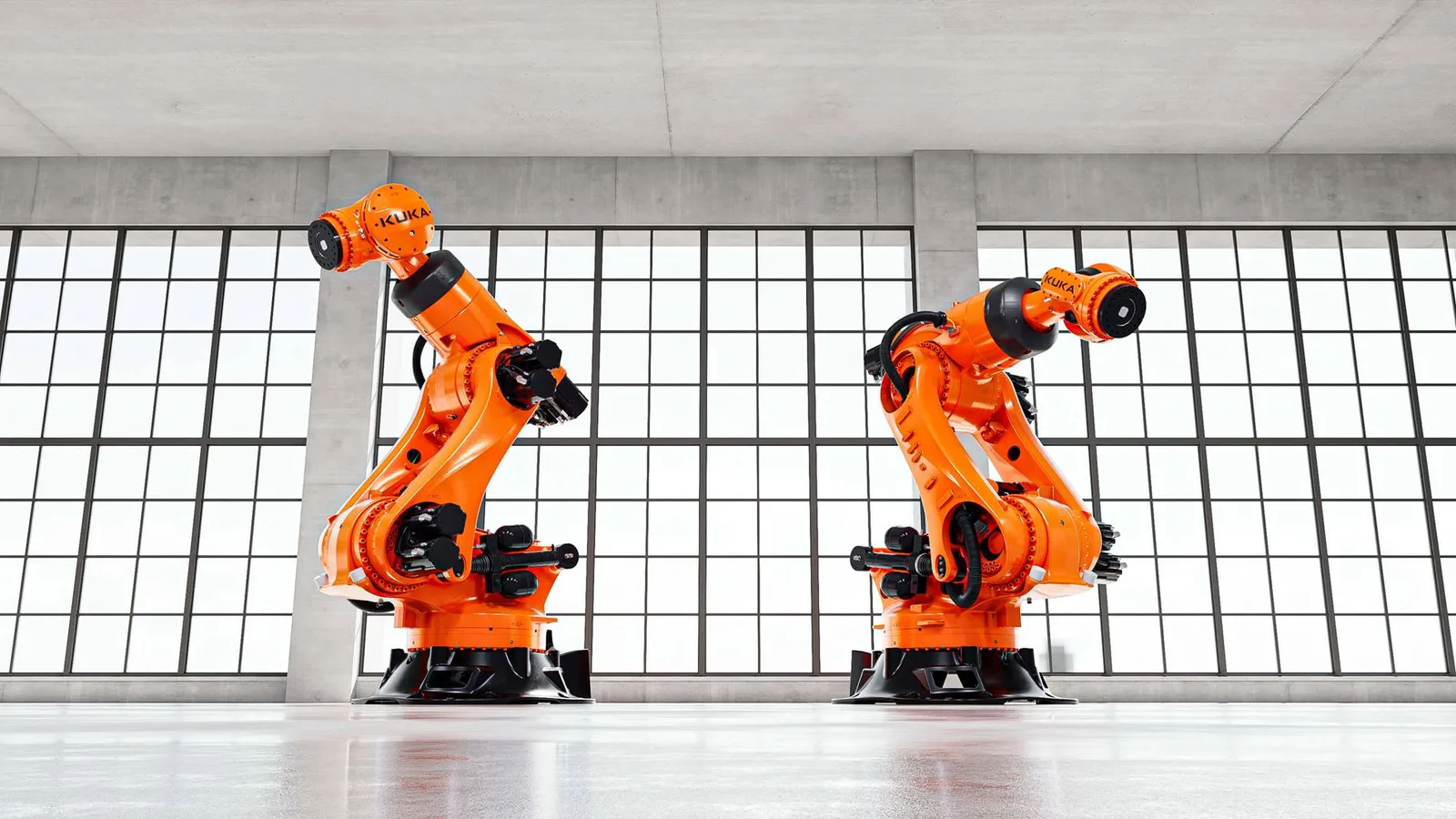

The KR titan stands as KUKA's flagship heavy-duty robot, managing payloads of 750-1300 kg, built to operate efficiently in the most demanding industrial settings.
Flagship features
- Heavy-duty industrial robot for high-payload applications (up to 1000 kg)
- Large working envelope with 3202 mm reach
- Designed for applications including palletizing, assembly, and machine tending
- Features a hollow arm design for internal routing of cables and media
- Uses KUKA's own KRL programming language and standard teach pendant
- Part of KUKA's established KR titan series known for reliability
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 6
- Payload
- 1000 kg
- Reach
- 3601 mm
- Repeatability
- ±0.1 mm
- Weight
- 4690 kg
- IP rating
- IP 65
- Mounting
- floor
- Controller
- KR C5
- Programming
- teach pendant
- Tool flange
- ISO 9409-1
- Safety cert.
- CE, ISO 10218-1
- Force limiting
- No
- Maturity
- scaled
- Industries
- automotive, foundry, packaging
Detailed specifications
Motion & kinematics1
- Dof
- 6
Other8
- Price Tier
- 150K+
- Applications
- palletizing,mechanical machining,assembly,spot welding,measuring,cutting,applying
- Sub Category
- heavy_payload
- Model Variants
- KR 1000 L750 titan,KR 1000 L950 titan PA,KR 1000 titan F,KR 1000 1300 titan PA,KR 1000 1300 titan PA-F
- Company Country
- DE
- Deployment Notes
- The KR 1000 titan is used in the production of heavy-duty diesel engines at FAW Group in China and for stacking steel beams at Mannstaedt GmbH.
- Availability Status
- available
- Additional Information
- - Heavy-duty industrial robot for high-payload applications (up to 1000 kg). - Large working envelope with 3202 mm reach. - Designed for applications including palletizing, assembly, and machine tending. - Features a hollow arm design for internal routing of cables and media. - Uses KUKA's own KRL programming language and standard teach pendant. - Part of KUKA's established KR titan series known for reliability.
