Overview

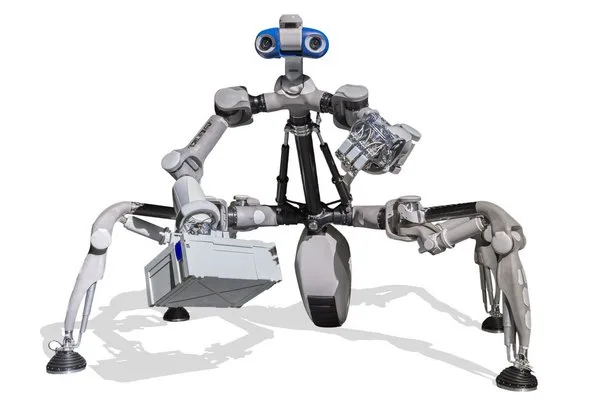

MANTIS is a multi-legged robot with six extremities developed for interdisciplinary research in mobile manipulation. It operates in two postures: using the four rear legs for locomotion and the two front legs for manipulation in one posture, while walking on all six extremities in its locomotion posture. This versatility allows it to navigate complex scenarios effectively. It is designed as an autonomous system with integrated computing and a diverse sensory suite for environment interaction and internal monitoring.
Flagship features
- Micro UAV (~52g) with 148mm rotor diameter
- Dual sensor payload: 2x EO cameras (2560×720 snapshot) + 1x thermal camera (256×192)
- Dynamic optical stabilization enables stable indoor flight without GNSS
- Dynamic Power Data Link with frequency hopping for secure transmission >1 km
- Front and side obstacle avoidance sensors for indoor maneuvering
Specifications
Category: Mobile Manipulator- Arm payload
- 5 kg
- Arm reach
- 900 mm
- Repeatability
- ±0.03 mm
- Base speed
- 10 m/s
- Battery
- 0.33 h
- Navigation
- gnss
Detailed specifications
Motion & kinematics4
- Hand Dof
- 8
- Dof Total
- 39
- Dof Per Arm
- 6
- Dof Per Hand
- 8
Power & battery1
- Power Supply
- LiPo primary battery: 45.6 V and 10 Ah
Sensors1
- Sensor Suite
- laser range finder,stereo_camera,imu,temperature sensors,current sensors,tactile sensor arrays,rotational absolute encoders,force-torque sensors
Compute1
- Onboard Compute
- Mini ITX computer with DFKI ZynqBrain
Safety & certifications1
- Safety Certification
- ISO 10218-1,ISO 13849-1
Other16
- Actuation
- {"arms":"2 x 6-DOF","head":"4-DOF","legs":"4 x 6-DOF","hands":"2 x 8-DOF","torso":"5-DOF"}
- Height Mm
- 2960
- Speed Mph
- 2.2
- Applications
- space robotics,security robotics,logistics,production,consumer
- Sub Category
- micro-uav
- Datasheet Url
- Preview PDF online
- Company Country
- DE
- Deployment Notes
- Used in various research projects including space robotics and mobile manipulation.
- Running Speed Ms
- 10
- Walking Speed Ms
- 0.98
- Industries Served
- space,security,logistics
- Software Platform
- Mantis Studio
- Programming Interface
- no_code_gui
- Additional Information
- - Micro UAV (~52g) with 148mm rotor diameter - Dual sensor payload: 2x EO cameras (2560×720 snapshot) + 1x thermal camera (256×192) - Dynamic optical stabilization enables stable indoor flight without GNSS - Dynamic Power Data Link with frequency hopping for secure transmission >1 km - Front and side obstacle avoidance sensors for indoor maneuvering
- Deployment Environment
- both
- Locomotion Posture Dimensions
- 2.96 m x 1.84 m x 0.32 m
