The PRENTIC SF7-K759 is a Industrial Arm developed by Chaifu Robot (China). Key specifications: repeatability ±0.04 mm, industries electronics, metal_fabrication, general_manufacturing.
Robo Index
Adequate evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how PRENTIC SF7-K759 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview

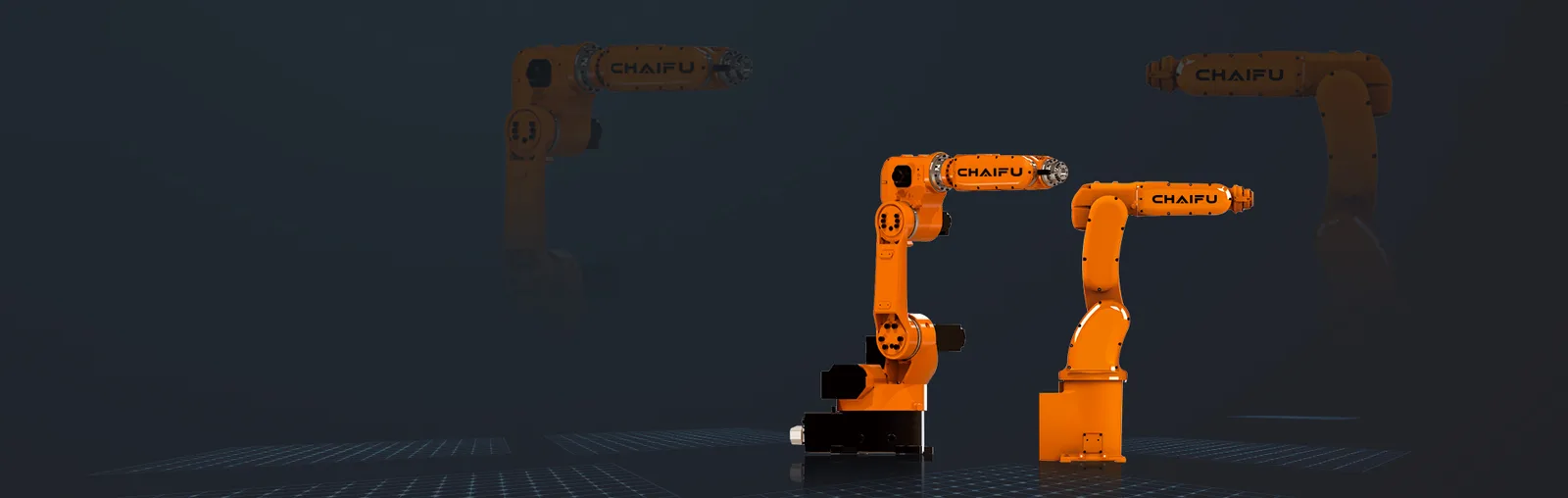

The PRENTIC SF7-K759 is a compact desktop industrial robot arm from Chaifu Robot's PRENTIC series. It is a 6-axis vertical multi-joint robot with a 738 mm reach, 7 kg payload, and ±0.04 mm repeatability. It features IP65 protection for humid environments, AC servo motor drive, and flexible mounting options. Designed for 3C, handling, spraying, welding, packaging, and assembly applications in tight spaces.
Buyer decision signals
Viability
Company established
Availability
Specifications
Detailed specifications pending — claim this page to add yours.
Company profile
- Founded
- 2011
Detailed specifications
Motion & kinematics5
- Dof
- 6
- Max Torque J4 Nm
- 15.6
- Max Torque J5 Nm
- 15.6
- Max Torque J6 Nm
- 8.5
- Axis Max Ranges Deg
- {"j1":"±171°","j2":"+65°/-141°","j3":"+170°/-66°","j4":"±180°","j5":"±119°","j6":"±360°"}
Power & battery1
- Power Capacity Kva
- 1.5
Other10
- Applications
- pick_and_place,assembly,arc_welding,painting
- Sub Category
- vertical multi-joint
- Body Height Mm
- 880
- Operating Temp
- 0-45°C
- Base Dimensions Mm
- 210x235
- Availability Status
- available
- Vibration Limit M S2
- 4.9
- Moment Of Inertia J4 Kgm2
- 0.43
- Moment Of Inertia J5 Kgm2
- 0.43
- Moment Of Inertia J6 Kgm2
- 0.13
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Chaifu Robot or an authorized seller.
Request a quote — goes straight to Chaifu Robot.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Nov 2011MilestoneCompany established
- 2020MilestoneSouthern China operation center established
- —MilestoneNorthern China operation center established
Compare with peers
More by Chaifu Robot
Frequently asked questions
- Who makes the PRENTIC SF7-K759?
- The PRENTIC SF7-K759 is developed by Chaifu Robot, based in China.
- What type of robot is the PRENTIC SF7-K759?
- The PRENTIC SF7-K759 is a Industrial Arm made by Chaifu Robot.
- How much does the PRENTIC SF7-K759 cost?
- Pricing for the PRENTIC SF7-K759 is not publicly listed — contact Chaifu Robot for a quote.
- What are the key specifications of the PRENTIC SF7-K759?
- Key specifications of the PRENTIC SF7-K759: repeatability ±0.04 mm, industries electronics, metal_fabrication, general_manufacturing.
