Overview

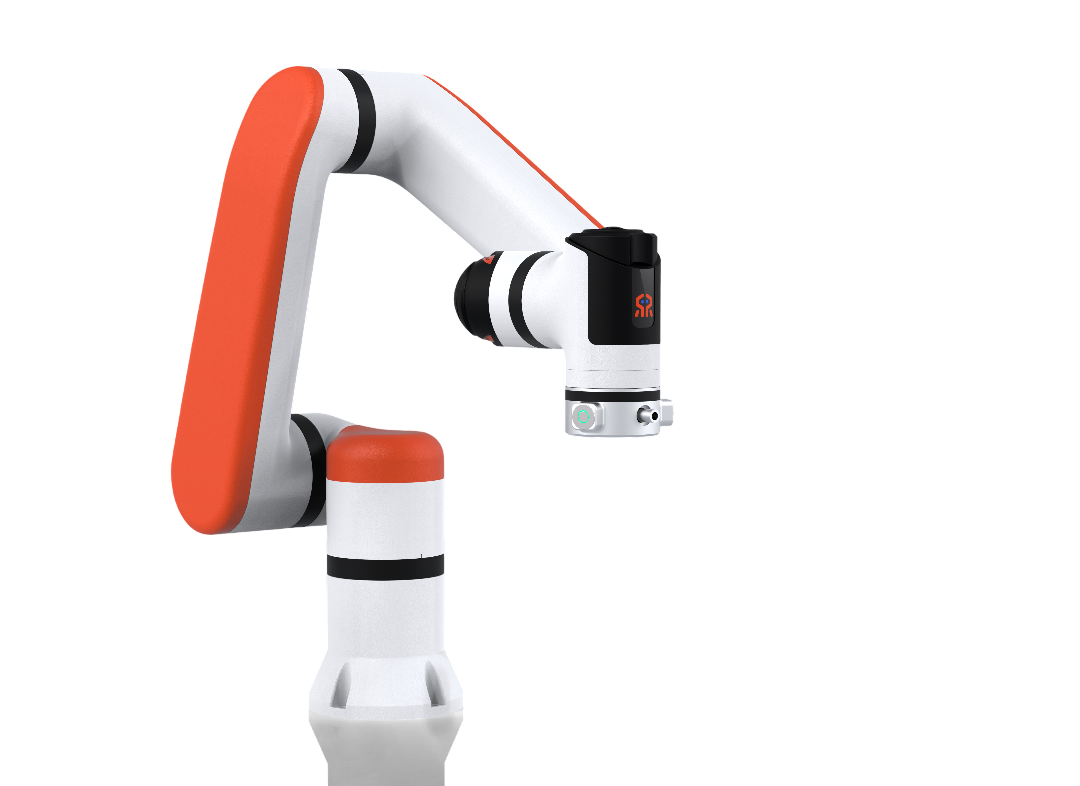

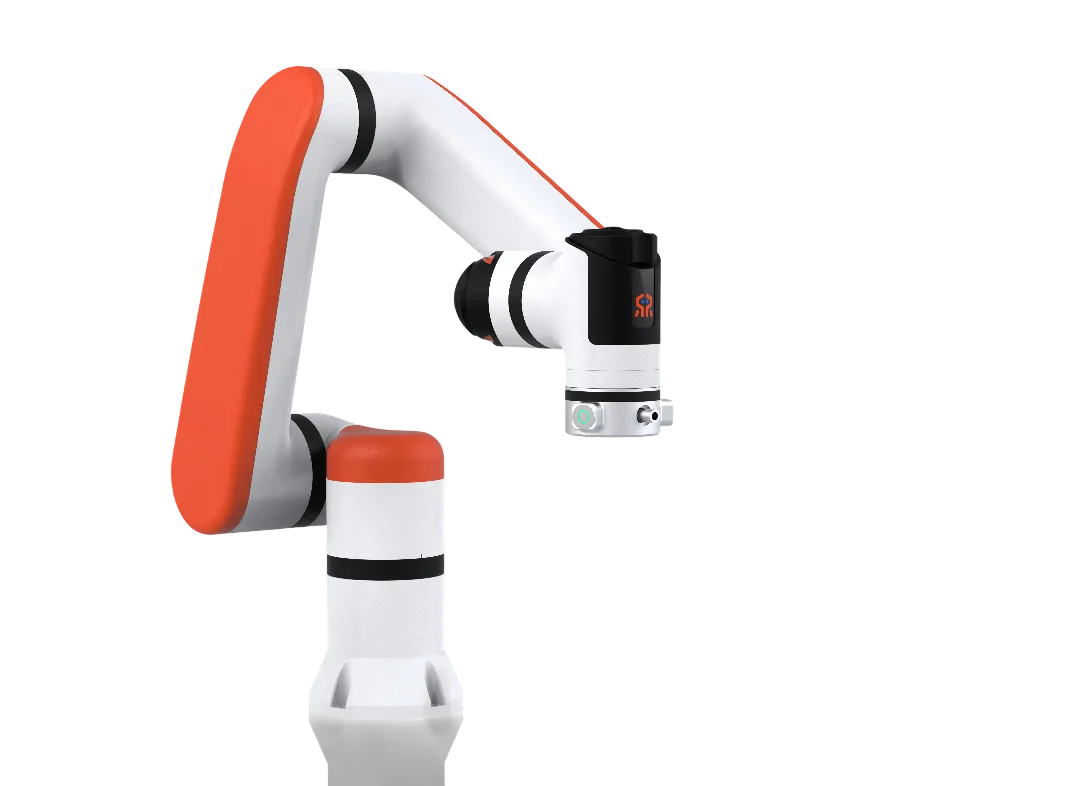

The RealMan ECO65-B is a 6-axis collaborative robot with a payload of 5 kg and a reach of 610 mm. With a repeatability of ±0.05 mm and a compact integrated design (only 7.8 kg including controller), it is ideal for cost-effective robotics in industrial automation. Equipped with a built-in safety module, it supports standard industrial communication interfaces and versatile programming via multiple platforms. Control is provided via an easy-to-use interface, ensuring efficient and stable operation. Typical applications include automated assembly, material handling, sorting, and simple processing.
Key facts
- Weight
- 7.8 kg
Detailed specifications
Motion & kinematics2
- Dof Total
- 6
- Repeatability Mm
- 0.05
Compute1
- Ros Compatible
- true
Safety & certifications1
- Safety Certification
- IP54
Other10
- Applications
- assembly, material_handling, sorting
- Max Reach Mm
- 610
- Api Available
- true
- Datasheet Url
- https://a.storyblok.com/f/298593/x/b385895d22/eco65_base_mounting_hole_position_diagram.pdf, https://a.storyblok.com/f/298593/x/2bf6de6983/realman-l.pdf
- Company Country
- CN
- Deployment Notes
- Used by NASA for multi-robot inspections, improving quality control processes with dual robotic detection.
- Industries Served
- automotive, 3C electronics, manufacturing
- Programming Interface
- drag_and_drop
- Additional Information
- - Integrated controller and arm design for ease of use. - High repeatability of ±0.05mm for precise applications. - Power supply voltage of 20-30V DC with a need for a 20A instantaneous current during initialization. - Continuous service life of 30,000 hours under rated load, certified by MTBF testing. - Communication modes include WIFI, Bluetooth, USB, and RS485.
- Deployment Environment
- indoor
