Overview

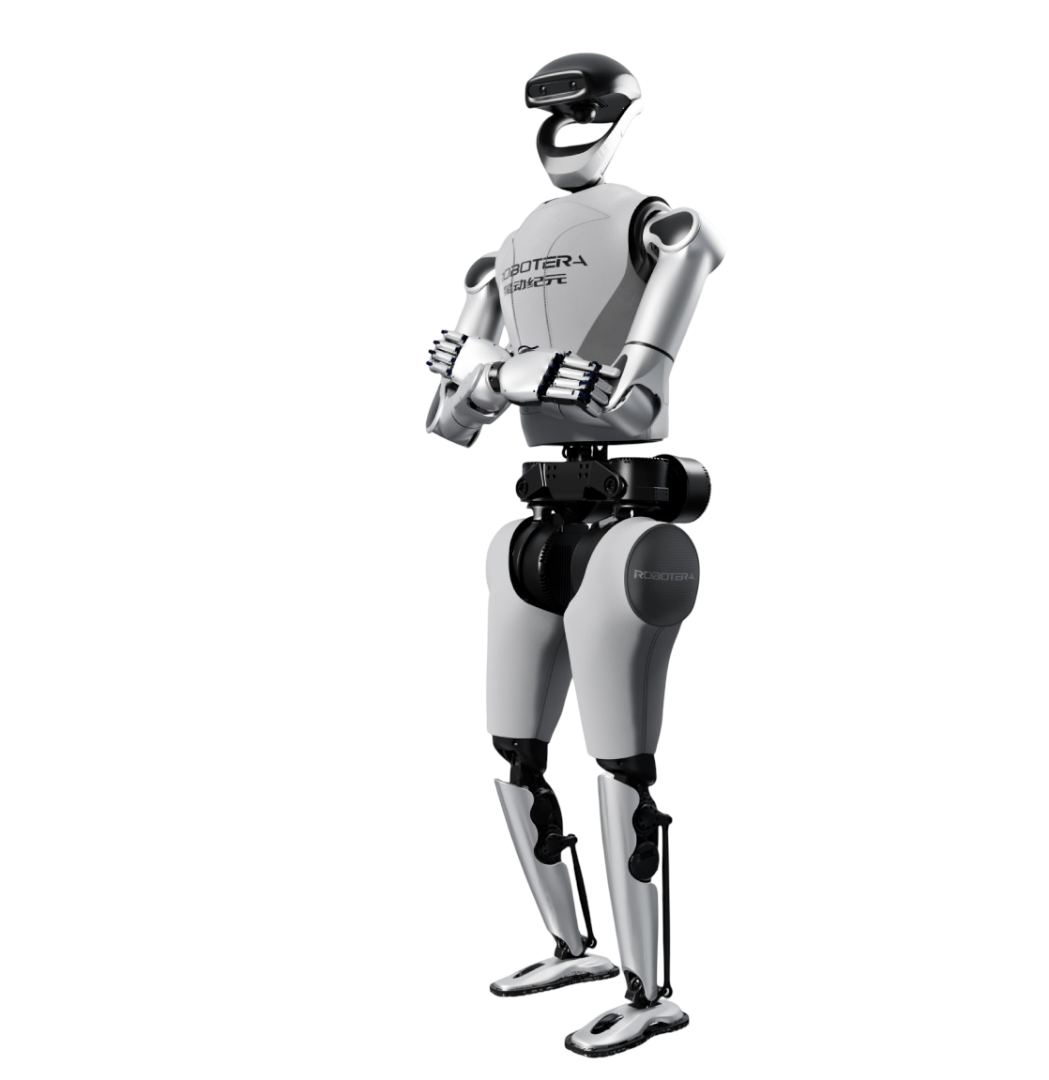

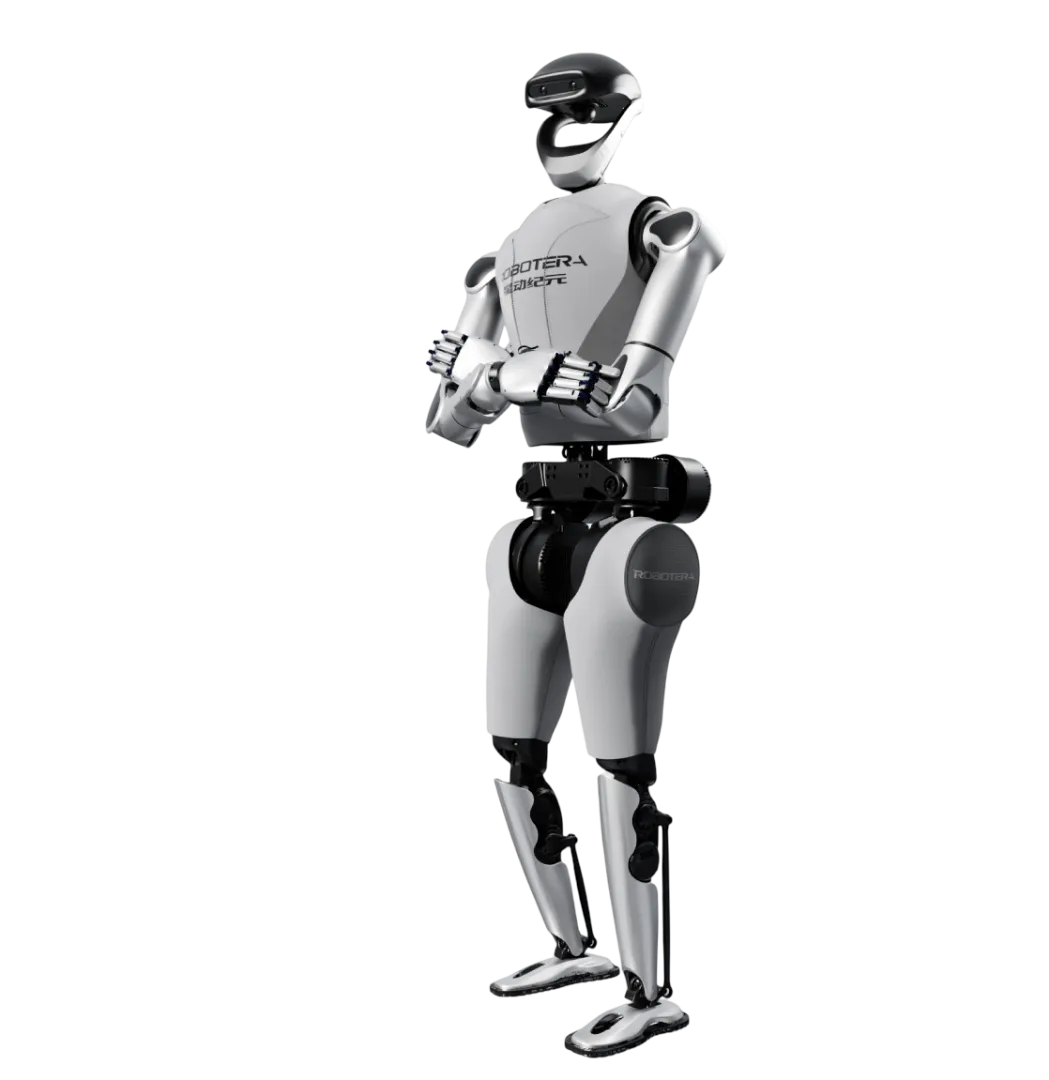

ROBOTERA L7 is a full-size high-performance bipedal humanoid robot designed for multi-scenario deployment. Standing 171cm tall and weighing 65kg, it features 55 degrees of freedom (DOF) and supports walking, running at 4 m/s, and executing 360° rotations. Made of aerospace-grade aluminum alloy combined with carbon fiber, it offers efficient heat dissipation for its high-power joints.
Key facts
- Weight
- 65 kg
Detailed specifications
Motion & kinematics6
- Hand Dof
- 12
- Dof Total
- 55
- Dof Per Arm
- 7
- Dof Per Hand
- 12
- Max Joint Torque Nm
- 400
- Max Joint Speed Rad S
- 25
Sensors1
- Sensor Suite
- binocular vision, 3D LiDAR, microphone array
Compute2
- Ros Compatible
- true
- Onboard Compute
- X86 (80 TOPS) + NVIDIA AGX Orin (275 TOPS)
Other18
- Height Mm
- 1710
- Price Tier
- 150K+
- Applications
- warehouse_transport, assembly, inspection, cleaning, eldercare_assistance, hospitality, construction, research, teleoperation, hazardous_env
- Api Available
- true
- Datasheet Url
- https://a.storyblok.com/f/298593/x/b1a97fd4c5/l7-brochure-robotera-en.pdf
- Operating Temp
- 0°C to 40°C
- Company Country
- CN
- Processing Tops
- 355
- Deployment Count
- 200
- Deployment Notes
- Applicable to warehousing, industrial assembly, commercial services, education and multi-robot collaboration. 50% of business is overseas.
- Running Speed Ms
- 4
- Walking Speed Ms
- 4
- Industries Served
- industrial, manufacturing, logistics, service, retail, entertainment, domestic
- Availability Status
- available
- Lifting Capacity Kg
- 20
- Programming Interface
- code_ros, proprietary_app
- Additional Information
- - National-leading performance in self-developed joint modules - 360° Rotational Jump with explosive power - 2.1m arm span for wide-ranging operations - Intelligent capabilities including sorting, handling, data collection, and remote teleoperation.
- Deployment Environment
- indoor
