Overview

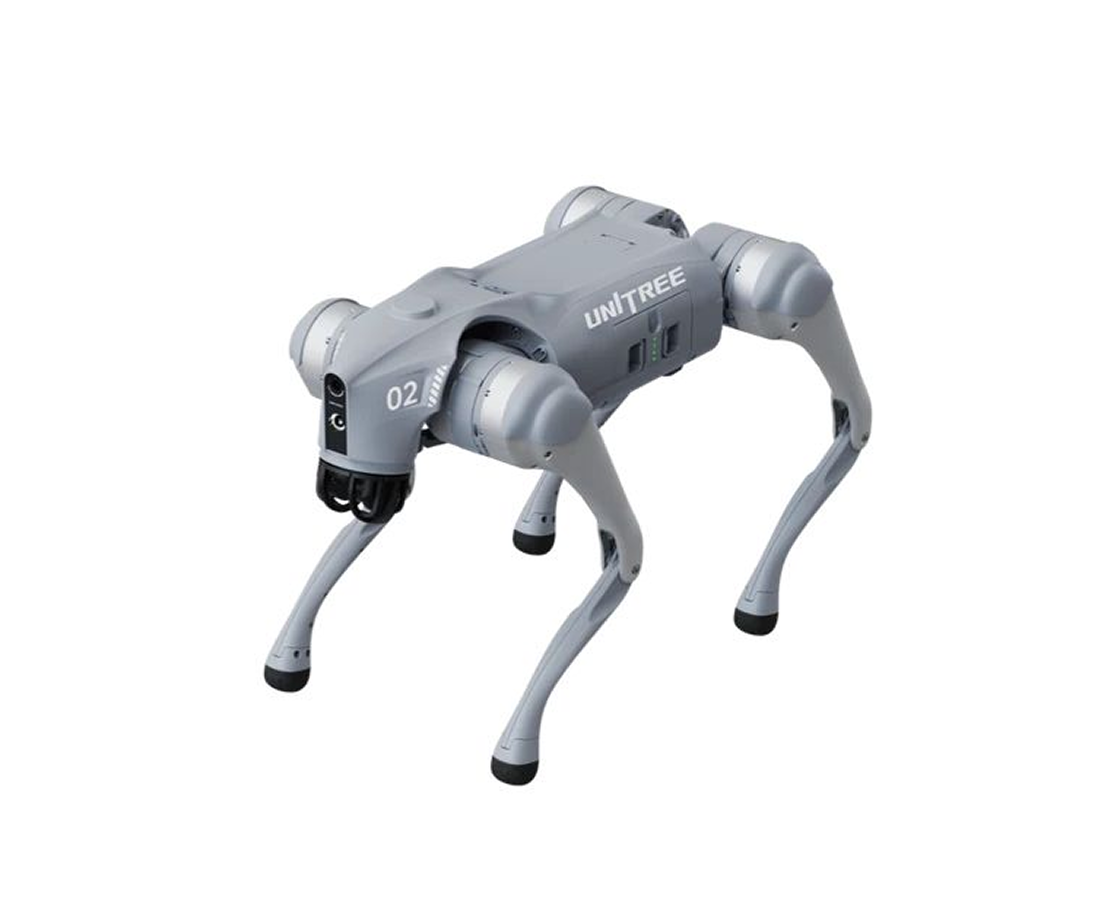

The Unitree Go2 Air Robot Dog is an advanced robotic platform designed for outdoor and indoor environments. With its ultra-wide 4D LiDAR system, it enhances navigation and obstacle avoidance capabilities, achieving pose and movement versatility including jumping, cheering, and pouncing. The robot is equipped with a standard 8000mAh battery and supports optional configurations like the 15000mAh long-range battery, providing improved battery life and motor efficiency.
Key facts
- Weight
- 15 kg
Detailed specifications
Motion & kinematics2
- Dof Total
- 12
- Joint Torque Max N M
- 45
Power & battery3
- Peak Power W
- 3000
- Charge Time Hours
- 1.25
- Battery Capacity MAh
- 8000
Sensors1
- Sensor Suite
- 4D LIDAR, HD Camera
Compute1
- Onboard Compute
- 8-core High-perf CPU
Other27
- Height Mm
- 400
- Price Tier
- 20-40K
- Applications
- research
- Datasheet Url
- https://www.docs.quadruped.de/projects/go2/html/Overview_1.html#robot-specifications
- Dimensions Cm
- 70x31x40
- Pricing Model
- purchase
- Model Variants
- Go2 Pro (without controller), Go2 Pro (with controller), Go2 Air (without controller), Go2 Air (with controller)
- Operating Temp
- 5°C to 35°C
- Warranty Years
- 0.5
- Company Country
- CN
- Navigation Type
- lidar_slam
- Processing Tops
- 100
- Deployment Notes
- Notable deployment at the Hangzhou Asian Games where it assisted in transporting discus and javelin.
- Running Speed Ms
- 5
- Walking Speed Ms
- 2.5
- Industries Served
- education, research
- Availability Status
- available
- Lifting Capacity Kg
- 12
- Programming Interface
- APP graphical programming, manual controller
- Additional Information
- - Standard Ultra-wide 4D LIDAR upgrades recognition system by 200%. - Features advanced AI mode allowing for unique gaits like upside-down walking and climbing. - Battery capacity increased to 8,000mAh, with optional 15,000mAh battery. - New wireless vector positioning and control technology improves positioning accuracy by 50%. - Can autonomously construct point cloud maps using 3D LiDAR mapping.
- Deployment Environment
- both
- Dimension Crouching Cm
- 76x31x20
- Max Climb Angle Degrees
- 30
- Max Climb Drop Height Cm
- 15
- Motion Range Body Degrees
- -48~48
- Motion Range Shank Degrees
- -156~-48
- Motion Range Thigh Degrees
- -200~90
