Overview

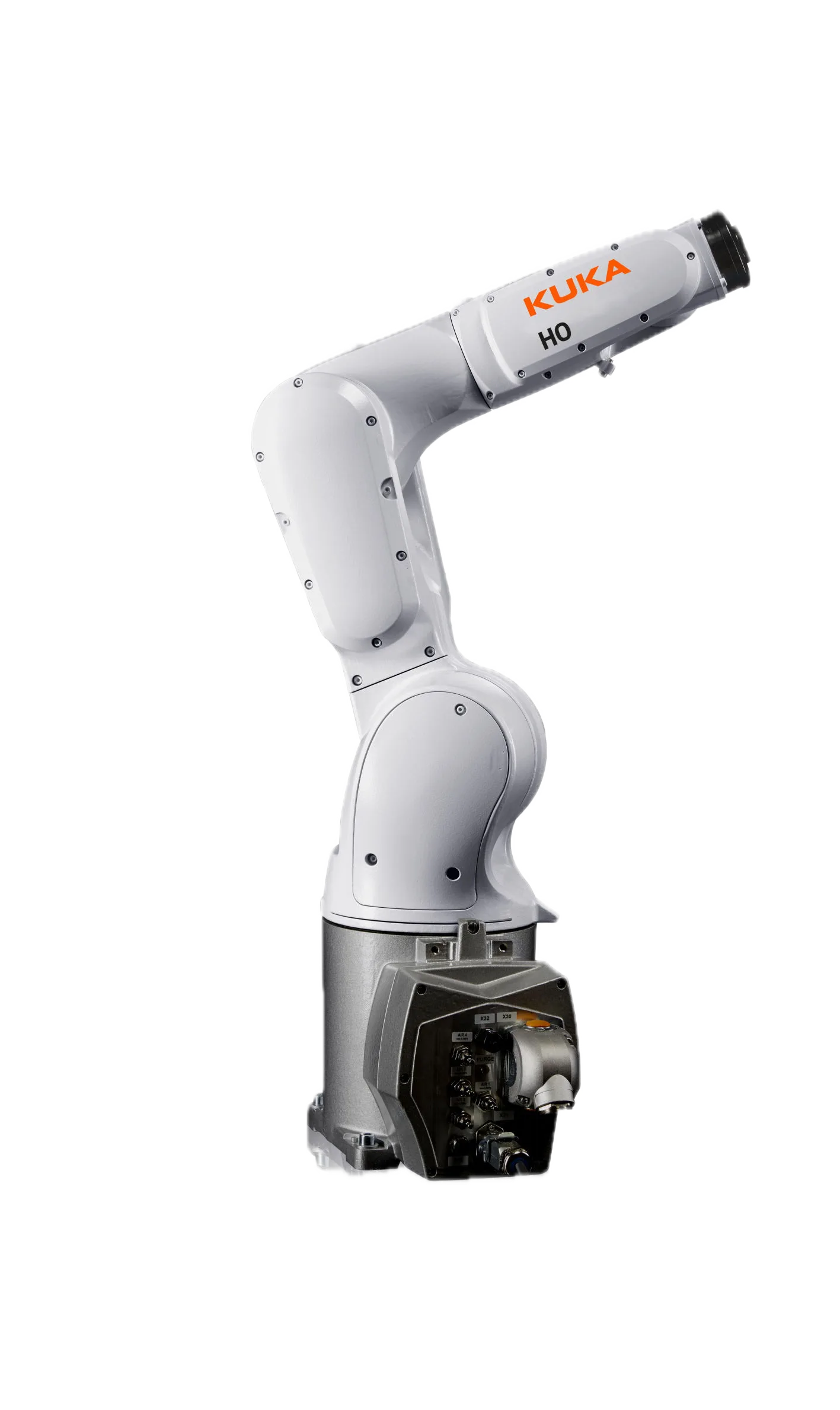

The KR 10 R1100-2 HO is a food-safe robot with a maximum payload of 11 kg and a reach of 1101 mm designed for food handling.
Flagship features
- Marketed as one of the fastest robots in its class, ideal for high-speed pick-and-place operations
- Compact design enables use in confined spaces
- Offered with multiple controller options (KR C5 micro, KR C4 smallsize-2, KR C4 compact), providing flexibility based on application requirements
- The 'HO' variant likely denotes a hollow wrist for internal cable routing, common for spot welding or handling applications, though this is not explicitly confirmed on the page
- Reseller page (robotec.org) provides a 'Get Quotation' form, indicating price is not publicly listed
- Specific applications mentioned: palletizing, assembly, packaging, pick & place
Specifications
Category: Industrial Arm- Arm class
- small payload
- Payload
- 11.1 kg
- Reach
- 1101 mm
- Repeatability
- ±0.02 mm
- Weight
- 55 kg
- IP rating
- IP65/IP67
- Mounting
- floor, ceiling, wall
- Controller
- KR C5 micro; KR C4 smallsize-2; KR C4 compact
- Programming
- teach pendant,proprietary app
- Industries
- general_manufacturing
Detailed specifications
Other3
- Sub Category
- articulated
- Company Country
- DE
- Additional Information
- - Marketed as one of the fastest robots in its class, ideal for high-speed pick-and-place operations. - Compact design enables use in confined spaces. - Offered with multiple controller options (KR C5 micro, KR C4 smallsize-2, KR C4 compact), providing flexibility based on application requirements. - The 'HO' variant likely denotes a hollow wrist for internal cable routing, common for spot welding or handling applications, though this is not explicitly confirmed on the page. - Reseller page (robotec.org) provides a 'Get Quotation' form, indicating price is not publicly listed. - Specific applications mentioned: palletizing, assembly, packaging, pick & place. - The page is hosted by Robotec, a KUKA distributor/reseller, likely in Thailand. - No information found on ROS support, programming interface, API, or software ecosystem.
