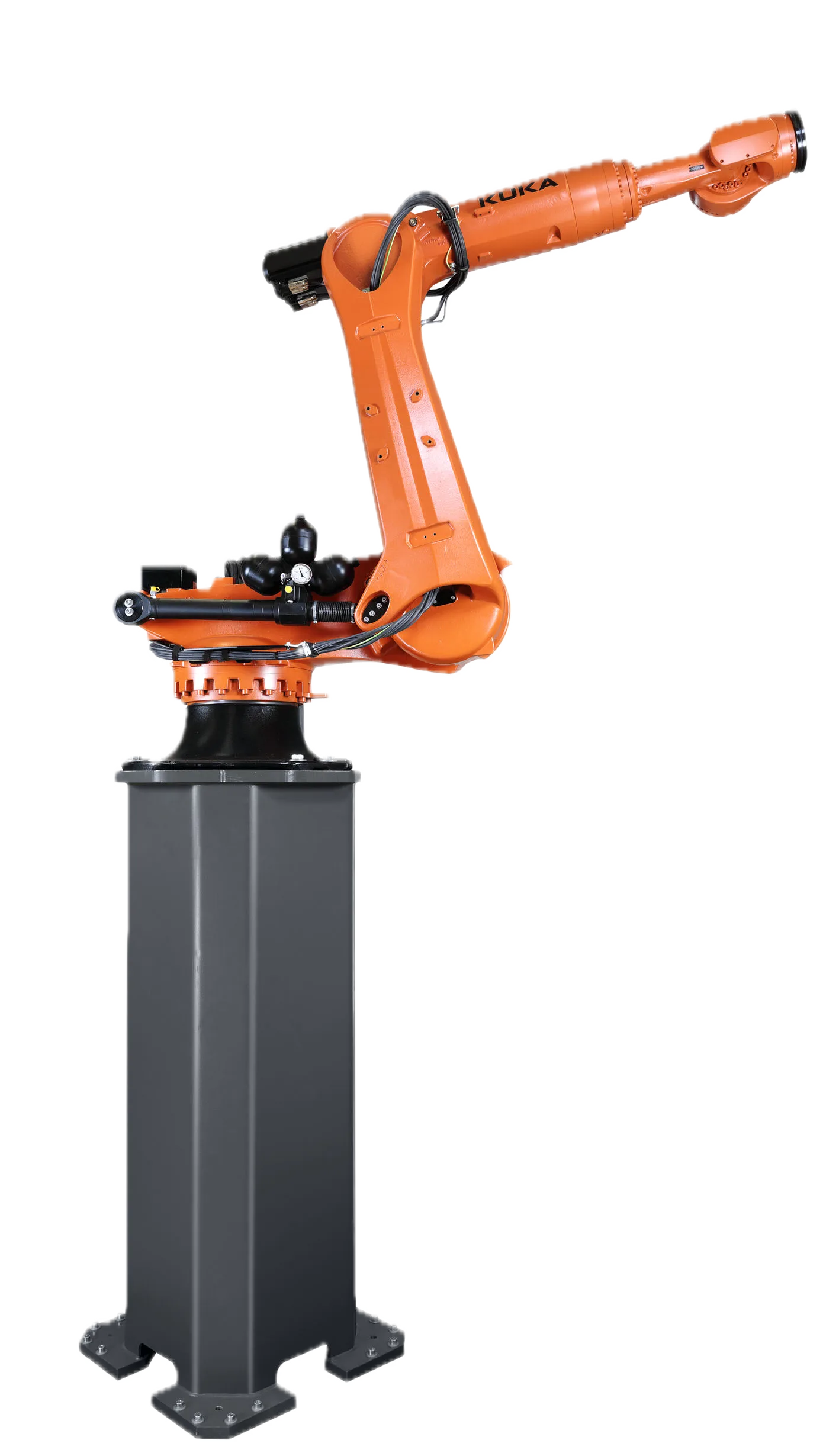

KR 120 R3900-2 K C01
Built by KUKA Robotics · Germany· Launched 2015
#35 of 247 ranked Industrial Arm robots (1,069 listed)#111 on the Robots list (all categories)
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Very strong evidence
No named customers yet. The score uses the rest of its record.
5 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 5 checks with data. Checks without data are left out.
Overview
The KR QUANTEC portfolio of high payload robots delivers success with the best reach and payload in this category.
Flagship features
- Part of the KR QUANTEC-2 family, which includes models from 120 kg to 300 kg payload, all using a shared platform for reduced spare parts complexity
- Common for spot welding, material handling, and machine tending in automotive and general manufacturing
- KUKA's global service network with certified centers in over 50 countries ensures rapid support
- KUKA Connect IoT platform available for monitoring and analytics
- Teach pendant is a smartPAD with touchscreen and 6D mouse
- Dual-channel safety (SafeOperation) is available on the controller for advanced safety functions
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Medium payload
- IP65
- Floor, ceiling, wall
- KR C5; KR C4
- Teach pendant,offline programming
- ISO 9409-1
- CE, ISO 10218-1
- Automotive, metal fabrication
- 120 kg
- 3904 mm
- ±0.05 mm
- 1280 kg
Carries more than 80% of 862 Industrial Arm robots with this spec
Reaches further than 97% of 732 Industrial Arm robots with this spec
More precise than 36% of 650 Industrial Arm robots with this spec
Heavier than 88% of 360 Industrial Arm robots with this spec
Detailed specifications
What it is built for3
- Industries
- wood,furniture
- Applications
- assembly,handling
- material handling
Movement & precision2
- 6
- Max Speed M S
- 3
Safety & certification3
- 0 °C to 55 °C
- Temperature Range Max C
- 55
- Temperature Range Min C
- 0
Buying & support3
- 80-150K
- Datasheet Url
- View Link
- Price On Request
- Yes
Other details12
- Controller
- KR C5, KR C5-2
- Maximum Payload
- 146 kg
- Ip Rating Wrist
- IP65 / IP67
- Construction Type
- Console
- Mounting Positions
- Floor
- Version Environment
- Standard
- Internal Cable Routing
- through arm and wrist
- Tool Flange Diameter Mm
- 102
- Speed With Rated Payload
- {"A1":"105 °/s","A2":"101 °/s","A3":"110 °/s","A4":"190 °/s","A5":"180 °/s","A6":"260 °/s"}
- Prot. Rating, In Line Wrist
- IP65 / IP67
- Ambient Temperature During Operation
- 0 °C to 55 °C
- Ambient Temperature During Storage/Transport
- -40 °C to 60 °C
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2026DeploymentKR IONTEC used for automated trailer unloading
- 2026MilestoneKR50-R2500 featured at Modex 2026
- 2026LaunchKR AGILUS ultra launch
- 2026DeploymentKUKA Modex 2026 palletizing system
- 2025MilestoneKR IONTEC ultra listed in KUKA portfolio since 2025
- Mar 2024LaunchKUKA launches KR TITAN ultra robot in Shelby Township, Michigan
- Jan 2024MilestoneKR FORTEC launch coverage published
- Oct 2022LaunchLBR iisy 3 R760 becomes available on the market
Compare with
- Compare KR 120 R3900-2 K C01 with ABB IRB-2600RoboScore 80.7
- Compare KR 120 R3900-2 K C01 with KR 120 R3900-2 KRoboScore 78.0
- Compare KR 120 R3900-2 K C01 with YK500TWRoboScore 75.0
- Compare KR 120 R3900-2 K C01 with ABB IRB 120 FlexMoveRoboScore 72.8
- Compare KR 120 R3900-2 K C01 with ABB IRB-4600RoboScore 72.8
More by KUKA Robotics
KUKA Robotics in the news
the maker8 events · last 12 months
- Oct 30Case study: KUKA robots unload trailers
- Oct 19TD SYNNEX Expands Robotics Portfolio with KUKA Group
- Oct 14Autowash Rolls Out Kuka Robots That Map Every Car for a Four Minute Touchless Wash
KUKA Robotics in the news
the maker8 events · last 12 months
News about KUKA Robotics, the maker, not about this robot specifically, except rows marked this robot. Collected and classified independently across 7 outlets, so a maker cannot add to it. It never changes this robot's RoboScore (the evidence half of the RoboIndex) and it can move it up a board by at most 15 points. See all KUKA Robotics news
Frequently asked questions
- Who makes the KR 120 R3900-2 K C01?
- The KR 120 R3900-2 K C01 is developed by KUKA Robotics, based in Germany.
- What type of robot is the KR 120 R3900-2 K C01?
- The KR 120 R3900-2 K C01 is a Industrial Arm made by KUKA Robotics.
- How much does the KR 120 R3900-2 K C01 cost?
- The KR 120 R3900-2 K C01 is priced at US$19,000.
- When was the KR 120 R3900-2 K C01 launched?
- The KR 120 R3900-2 K C01 was launched in 2015.
- What are the key specifications of the KR 120 R3900-2 K C01?
- Key specifications of the KR 120 R3900-2 K C01: arm class medium payload, payload 120 kg, reach 3904 mm, repeatability ±0.05 mm, weight 1280 kg.
