Overview

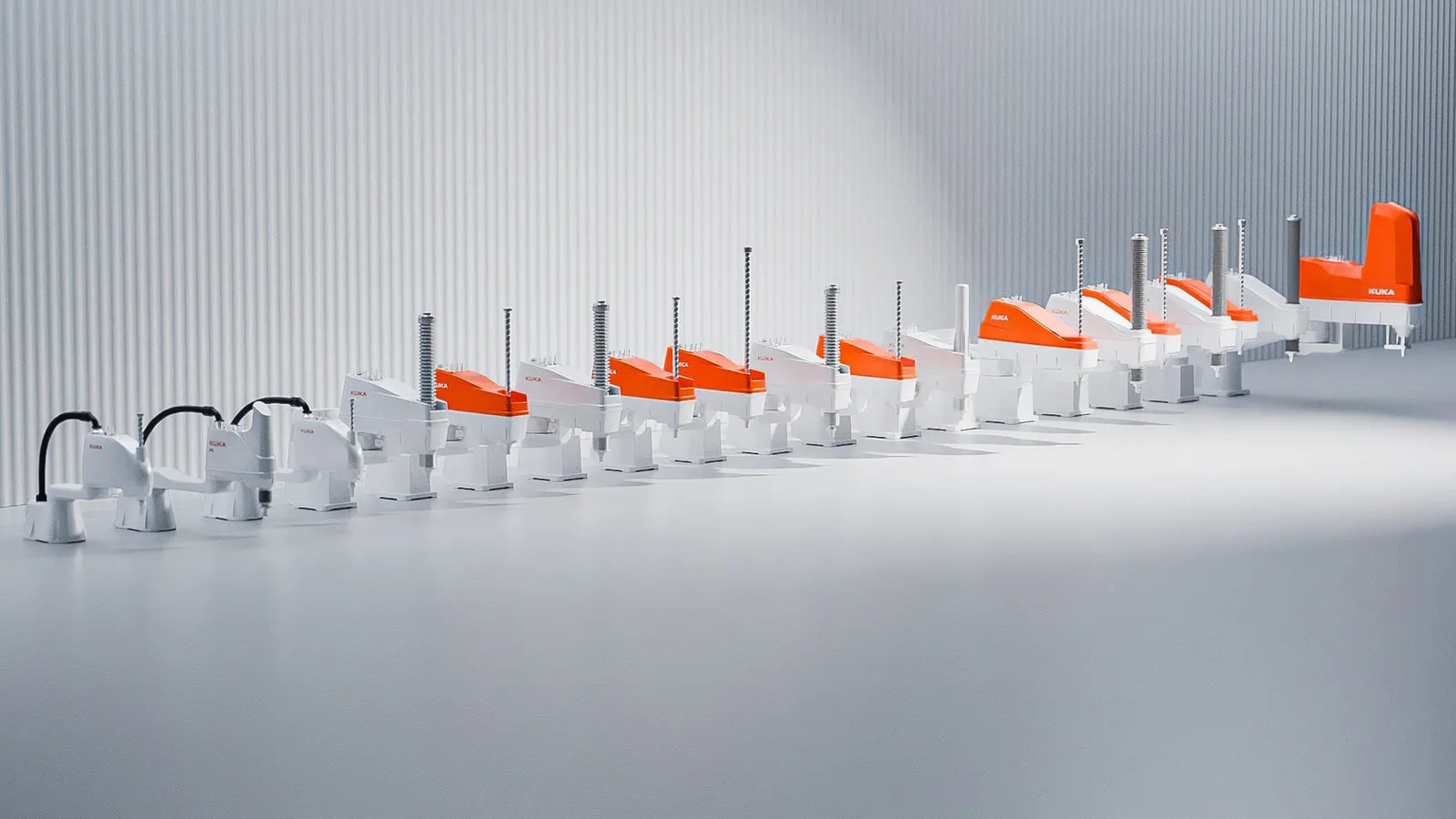

KUKA KR SCARA is a selective compliance assembly robot arm designed for precise and flexible industrial applications. With a payload capacity ranging from 6 to 60 kg and a maximum reach of 500 to 1200 mm, it excels in assembly, handling, and precision tasks across various manufacturing industries.
Flagship features
- Ultra-compact design with minimal footprint
- Internal media supply system for air, power, and data
- Certified for cleanroom use (ISO 5)
- ESD protected for handling sensitive electronic components
- Low maintenance and energy consumption
- Quick and easy integration into existing production processes
Specifications
Category: Industrial Arm- Arm class
- scara
- Axes
- 4
- Payload
- 12 kg
- Reach
- 650 mm
- Repeatability
- ±0.02 mm
- IP rating
- IP54
- Mounting
- floor
- Controller
- KR C5
- Programming
- teach pendant
- Safety cert.
- CE, ISO 5
- Force limiting
- No
- Maturity
- commercial
- Industries
- electronics manufacturing, biomedicine, food industry
Detailed specifications
Motion & kinematics1
- Dof
- 4
Other20
- Duty Cycle
- continuous_24_7
- Industries
- electronics,biomedicine,food_beverage,renewable_energies
- Price Tier
- 40-80K
- Applications
- pick_and_place,assembly,visual_inspection
- Cycle Time S
- 0.36
- Sub Category
- SCARA
- Datasheet Url
- View Link
- Pricing Model
- purchase
- Model Variants
- KR 6 R500 Z200-2,KR 6 R700 Z170 HO,KR 6 R700 Z200-2,KR 12 R650 Z340 CR,KR 12 R650 Z400,KR 12 R750 Z340 CR,KR 12 R750 Z400,KR 12 R750 Z600,KR 12 R850 Z340 CR,KR 12 R850 Z400,KR 13 R850 Z340 HO,KR 20 R1000 Z390 CR,KR 20 R1000 Z450,KR 20 R1200 Z390 CR,KR 20 R1200 Z450,KR 20 R800 Z390 CR,KR 20 R800 Z450,KR 60 R1200 Z400
- Operating Temp
- 5°C to 40°C
- Company Country
- DE
- Price On Request
- false
- Availability Status
- available
- Primary Applications
- assembly,material_handling,testing
- Additional Information
- - Ultra-compact design with minimal footprint - Internal media supply system for air, power, and data - Certified for cleanroom use (ISO 5) - ESD protected for handling sensitive electronic components - Low maintenance and energy consumption - Quick and easy integration into existing production processes
- Internal Cable Routing
- through_arm
- Service Network Density
- global
- Temperature Range Max C
- 40
- Temperature Range Min C
- 5
- Cycle Time 25 305 25 Sec
- 0.36
