Overview

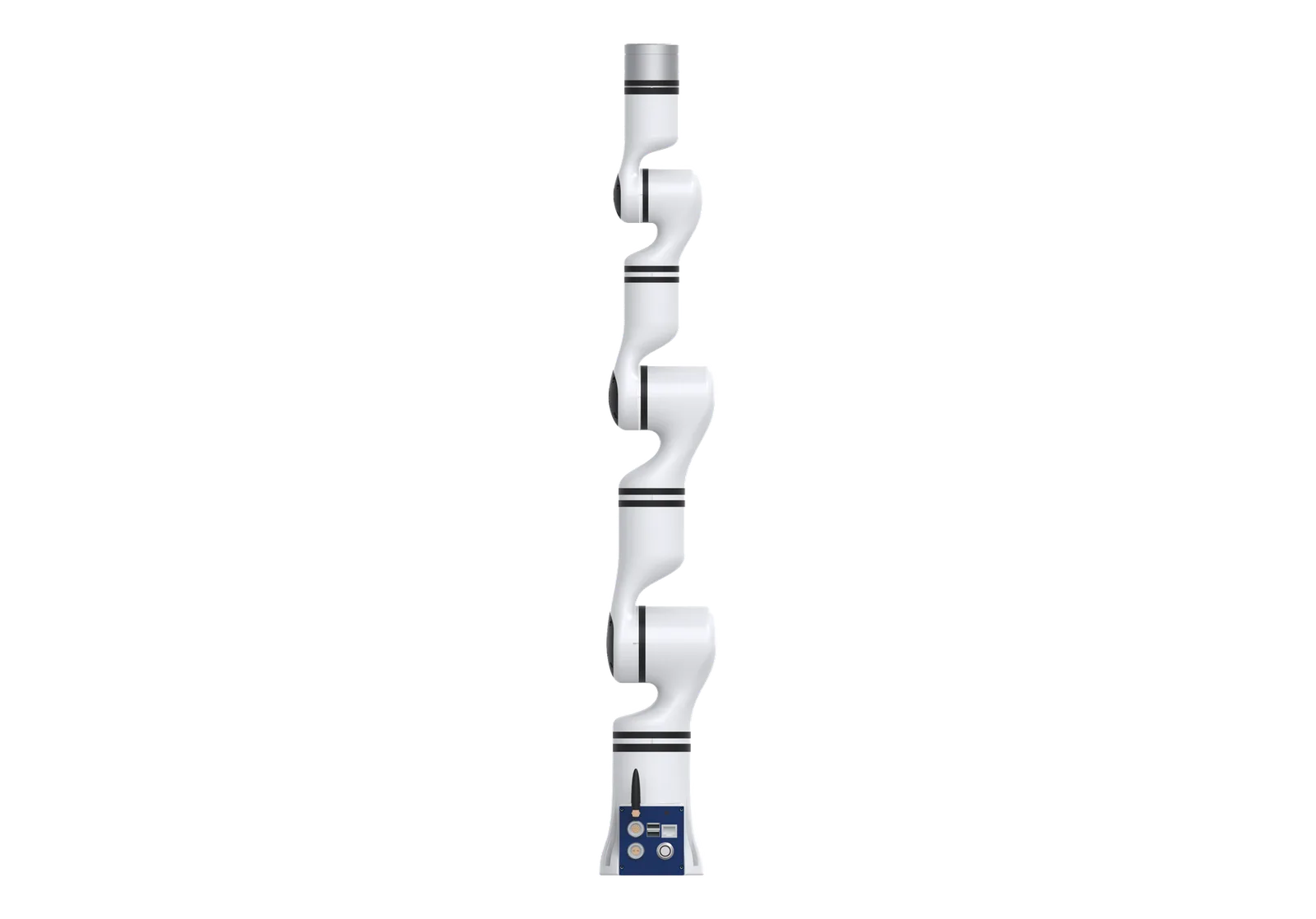

The RM65-B is a 6-degrees of freedom (DOF) ultra-lightweight humanoid robotic arm designed for various applications. It weighs 7.2kg and has a payload capacity of 5kg, making it suitable for a range of tasks in industrial and health sectors. Its design mimics the human arm, enabling seamless integration into existing environments without requiring modifications.
Flagship features
- Ultra-lightweight design: 7.2 kg with integrated controller
- Payload-to-weight ratio: ~0.69 (5 kg payload / 7.2 kg arm)
- Peak load up to 9 kg (momentary)
- Integrated controller eliminates need for separate cabinet
- Power: DC 24 V, max 200 W, typical 100 W — suitable for battery/mobile operation
- Connectivity: Wi-Fi, Ethernet, Bluetooth, USB serial, RS485, Modbus-RTU
Specifications
Category: Industrial Arm- Arm class
- small payload
- Payload
- 5 kg
- Reach
- 610 mm
- Repeatability
- ±0.05 mm
- Weight
- 7.2 kg
- IP rating
- IP54
- Mounting
- floor, ceiling, wall
- Controller
- Integrated
- Programming
- teach pendant,code python,code ros,proprietary app
- Safety cert.
- IP54
- Industries
- general_manufacturing, electronics, logistics
Detailed specifications
Motion & kinematics6
- Dof Total
- 6
- Repeatability
- ±0.05mm
- Joint Motion Range
- {"J1":"±178°","J2":"±130°","J3":"±135°","J4":"±178°","J5":"±128°","J6":"±360°"}
- Joint Maximum Speed
- {"J1-J2":"180°/s","J3-J6":"225°/s"}
- Force Torque Sensing
- joint_level_partial
- Integrated Force Torque Sensor
- optional_addon
Power & battery3
- Power Supply Voltage
- DC24V
- Max Power Consumption
- 200W
- Comprehensive Power Consumption
- 100W
Compute2
- Ros Compatible
- true
- Onboard Compute
- Integrated Controller
Other10
- Material
- Aluminum alloy
- Applications
- industrial production,health and wellness
- Sub Category
- humanoid-configuration
- Api Available
- true
- Max Speed M S
- 1.8
- Working Radius
- 610mm
- Company Country
- CN
- Deployment Notes
- Used in various sectors including mobile phone defect detection, transformer painting, and suction cup loading and unloading.
- Additional Information
- - Ultra-lightweight design: 7.2 kg with integrated controller. - Payload-to-weight ratio: ~0.69 (5 kg payload / 7.2 kg arm). - Peak load up to 9 kg (momentary). - Integrated controller eliminates need for separate cabinet. - Power: DC 24 V, max 200 W, typical 100 W — suitable for battery/mobile operation. - Connectivity: Wi-Fi, Ethernet, Bluetooth, USB serial, RS485, Modbus-RTU. - Control modes: drag teaching, teach pendant, API/JSON based control. - Software ecosystem: ROS, RViz, MoveIt, simulation tools, Windows/Linux support. - Programming language support: C/C++, C#, Python. - Aluminum alloy construction. - Joint speeds: J1-J2 180°/s, J3-J6 225°/s. - Joint ranges: J1 ±178°, J2 ±130°, J3 ±135°, J4 ±178°, J5 ±128°, J6 ±360°. - Mounting: table/ceiling vertical, wall horizontal. - Applications: compact factory cells, AMR integration, R&D/education, exhibitions. - No explicit customer case studies or deployment numbers listed. - No safety certifications (e.g., CE, ISO 10218) listed. - Price is not publicly listed; only 'Add to Quote' available. - The term 'humanoid' in description refers to form factor scale, not actual humanoid robot. - Seller: robotslatam.com (Latin American reseller). - Competitors: other ultra-lightweight arms like UFactory xArm, Franka Emika, Kinova. - Financing options not mentioned.
- Deployment Environment
- indoor
