Overview

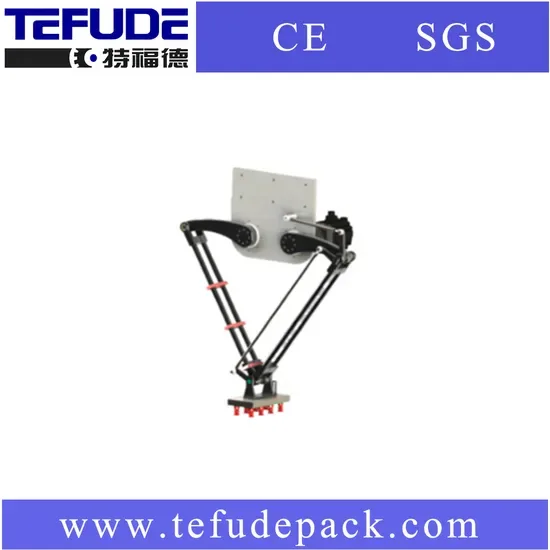

The intelligent 4 axis parallel robot is developed by TEFUDE, also known as a small industrial robot arm or pack robot, is a robotic arm of picking up and placing various objects within confined spaces with multiple degrees of freedom. This small robotic arm adds a rotational axis (R-axis) to the traditional three-axis (X, Y, and Z) . The 4 axis parallel robot not only maintains freedom in the three linear axes (X, Y, and Z), but also adds a rotational degree of freedom. It can flexibly rotate (or tilt) while simultaneously moving up and down, left and right, and forward and backward, enabling controlled and controlled material movement.
Detailed specifications
Motion & kinematics2
- Dof
- 2
- Dof Per Arm
- 4
Power & battery1
- Power Consumption W
- 1600
Other12
- Price Tier
- 40-80K
- Applications
- pick_and_place,loading_in_carton,secondary_loading_in_tray,centralized_encase
- Cycle Time S
- 0.75
- Sub Category
- delta
- Fda Clearance
- FDA-compliant
- Price Currency
- USD
- Procedure Types
- pick and place, loading in case, packaging
- Price On Request
- false
- Compatible Vision
- Visual identification system
- Availability Status
- available
- Countries Available
- China
- Additional Information
- - High-speed operation with fast dynamic response. - Suitable for multi-variety product handling. - Compact structure with high stiffness and bearing capacity. - Fully symmetric parallel mechanism for better isotropy. - Engineer available for overseas installation.
