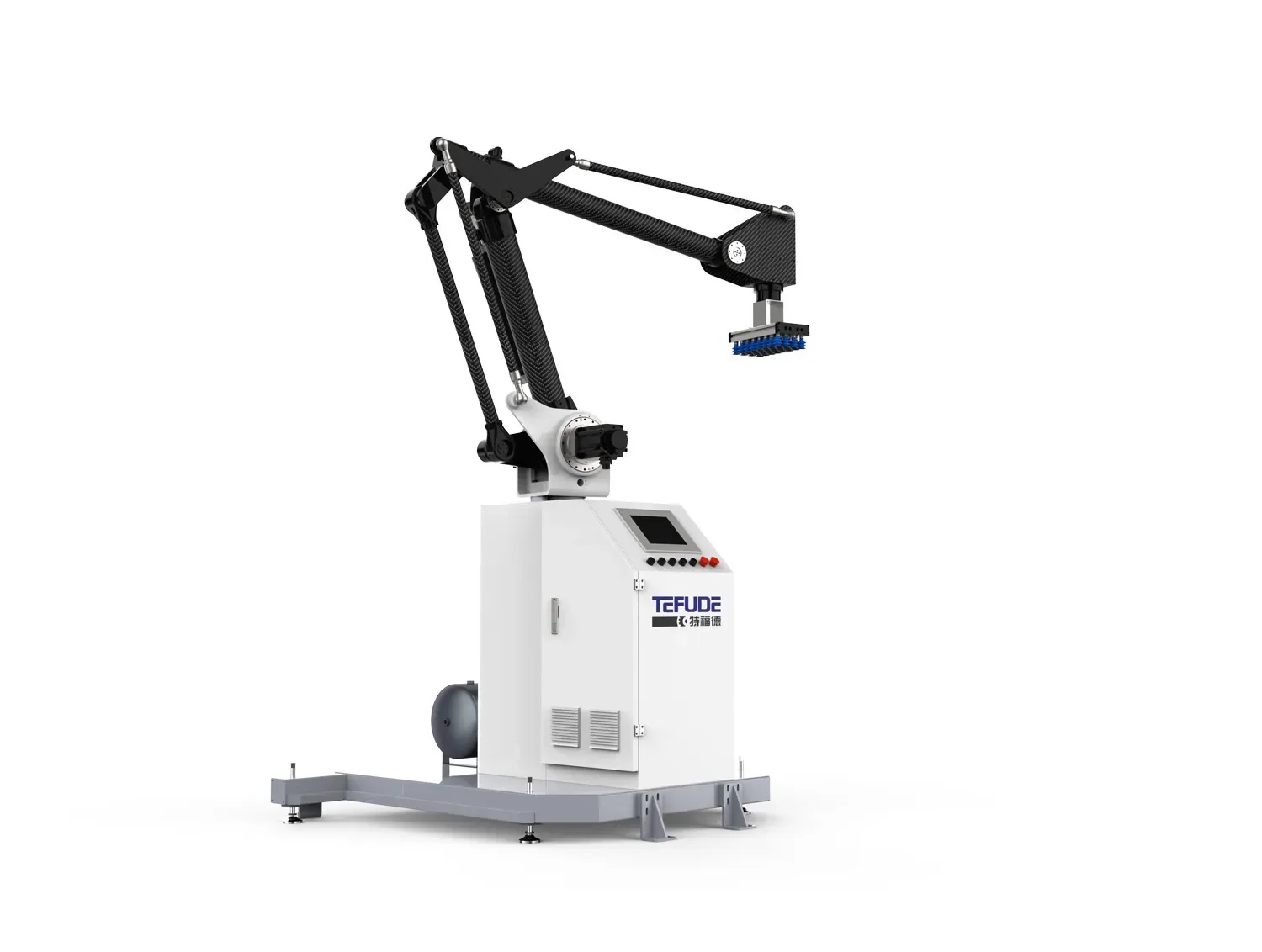

TFD-RP4-2200-50 Palletizing Robot
Built by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY · China
The TFD-RP4-2200-50 Palletizing Robot is a Industrial Arm developed by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY (China). Key specifications: repeatability ±0.1 mm, mounting floor, programming visual block,no code gui, industries food_and_beverage, chemical, logistics.
Robo Index
Speculative — thin evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how TFD-RP4-2200-50 Palletizing Robot measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview
A high-payload 4-axis palletizing robot designed for stacking cartons, bags, or bundled products onto pallets. It features an intelligent control system, path-planning algorithms, and graphical programming for easy operation. With a 50kg payload capacity and a 2200mm reach, this robot is intended for industries such as food and beverage, chemical, and logistics. It integrates force-control or ultrasonic sensors for collision avoidance, improving workplace safety and automation efficiency.
Buyer decision signals
Viability
Patent application filed
Specifications
Category: Industrial Arm- Repeatability
- ±0.1 mm
- Mounting
- floor
- Programming
- visual block,no code gui
- Industries
- food_and_beverage, chemical, logistics
Company profile
- Founded
- 2012
Detailed specifications
Motion & kinematics1
- Repeat Angle Accuracy
- ±0.2°
Power & battery1
- Power Supply Voltage
- AC380
Other13
- Drive Mode
- Electric
- Noise Level
- <75dB
- Installation
- Floor Mounting
- Rotation Angle
- ±360°
- Stacking Speed
- 6-15 times/min
- No Code Capable
- true
- Machine Weight Kg
- 175
- Relative Humidity
- RH:20-80%
- Training Required
- intermediate_1-5days
- I O Interface Inputs
- 8
- Pallet Specification
- 1200x1300mm
- I O Interface Outputs
- 8
- Pick And Place Height Vertical Mm
- 2200
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY CO., LTD. or an authorized seller.
Request a quote — goes straight to FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY CO., LTD..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Aug 2012MilestonePatent application filed
- 2012MilestoneCompany established
- —MilestoneHigh-tech enterprise
- —Launch4-axis robotic arm system with 1600 mm working range
- —MilestoneTEFUDE 4-axis robotic arm marketed for food industries
- —LaunchTFD-RD4 four-axis robot product page
- —MilestoneTFD-RD4 product description on TEFUDE site
- —MilestoneTEFUDE company established
Compare with peers
Frequently asked questions
- Who makes the TFD-RP4-2200-50 Palletizing Robot?
- The TFD-RP4-2200-50 Palletizing Robot is developed by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY, based in China.
- What type of robot is the TFD-RP4-2200-50 Palletizing Robot?
- The TFD-RP4-2200-50 Palletizing Robot is a Industrial Arm made by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY.
- How much does the TFD-RP4-2200-50 Palletizing Robot cost?
- Pricing for the TFD-RP4-2200-50 Palletizing Robot is not publicly listed — contact FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY for a quote.
- What are the key specifications of the TFD-RP4-2200-50 Palletizing Robot?
- Key specifications of the TFD-RP4-2200-50 Palletizing Robot: repeatability ±0.1 mm, mounting floor, programming visual block,no code gui, industries food_and_beverage, chemical, logistics.
