TFD-R1100
Built by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY · China
The TFD-R1100 is a Industrial Arm developed by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY (China), listed at $11,800 USD (unverified). Key specifications: arm class medium payload, payload 12 kg, reach 2200 mm, repeatability ±0.1 mm.
Robo Score
Strong evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Ranked in the Industrial Arm standing, against 774 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how TFD-R1100 measures up, requirement by requirement. The Robo Score (trust) above is shown for every buyer, regardless.
Overview

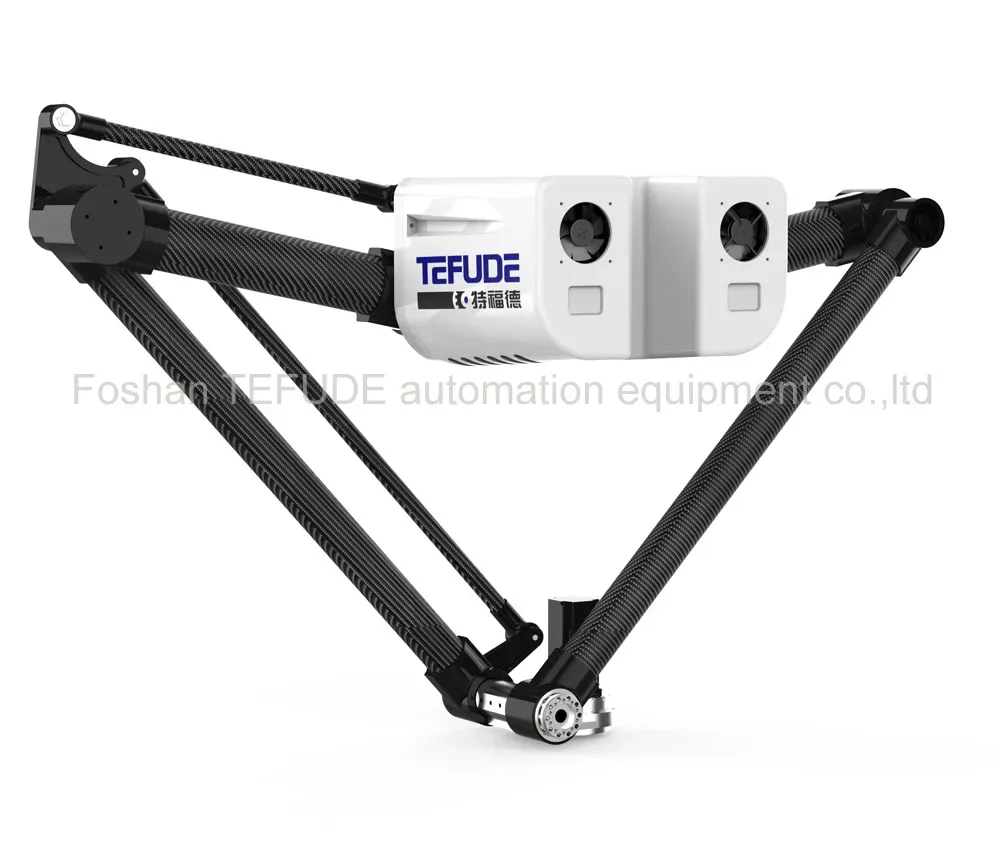

Parallel manipulator robot for cake, bread, biscuit single-item picking, locating and placing. Suitable for high-speed pick-and-place packing automation.
Flagship features
- This product is a Delta/parallel robot for industrial pick-and-place, packaging, and palletizing, not a cleaning robot or service robot
- Maximum cycle rate of 80 cycles/min on the RD2-800 model (25/305/25 mm stroke)
- Repeat positioning accuracy of ±0.1mm
- Third-axis (rotation/flipping) available on RD3 models
- Stainless steel frame with food-grade materials suitable for food & pharma
- Hoisting installation
Buyer decision signals
Viability
Patent application filed
Price
purchase
Aggregated from public sources — unverified
Availability
Specifications
Category: Industrial Arm- Arm class
- medium payload
- Payload
- 12 kg
- Reach
- 2200 mm
- Repeatability
- ±0.1 mm
- Weight
- 57 kg
- IP rating
- IP54
- Mounting
- floor
- Programming
- proprietary app
- Safety cert.
- CE
- Industries
- food_and_beverage, pharmaceutical, logistics
Company profile
- Founded
- 2012
Detailed specifications
Motion & kinematics1
- Dof
- 4
Power & battery3
- Power Supply
- 380V 50Hz
- Total Power Kw
- 4
- Working Range Voltage
- 1.5KW/220V 50/60Hz
Other22
- Drive Mode
- Electric
- Price Tier
- 10-20K
- Applications
- pick_and_place,packing,sorting
- Control Mode
- Point to Point Control
- Sub Category
- 4-axis delta/parallel robot
- Customization
- Available
- Pricing Model
- purchase
- Muscle Size Kg
- 1~11
- Noise Level Db
- 75
- Pallet Size Mm
- 2560x1860x2200
- Warranty Years
- 1
- Company Country
- CN
- Online Instruction
- true
- After Sales Service
- 1 Year Warranty and Lifelong Service
- Availability Status
- available
- Engineer Assignment
- lifelong maintenance
- Production Capacity
- 50 set/month
- Machine Dimensions Mm
- 1500x1300x2200
- Additional Information
- - This product is a Delta/parallel robot for industrial pick-and-place, packaging, and palletizing, not a cleaning robot or service robot. - Maximum cycle rate of 80 cycles/min on the RD2-800 model (25/305/25 mm stroke). - Repeat positioning accuracy of ±0.1mm. - Third-axis (rotation/flipping) available on RD3 models. - Stainless steel frame with food-grade materials suitable for food & pharma. - Hoisting installation. - AC380V power supply required. - I/O expandable. - Company offers custom engineering and global support.
- Overseas Service Content
- Maintain,Repair,Debugging,Training
- Overseas Service Countries
- Indonesia,Dubai,Türkiye,Malaysia
- Pick And Place Speed Times Per Min
- 200
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY CO., LTD. or an authorized seller.
Request a quote — goes straight to FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY CO., LTD..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Aug 2012MilestonePatent application filed
- 2012MilestoneCompany established
- —MilestoneHigh-tech enterprise
- —Launch4-axis robotic arm system with 1600 mm working range
- —MilestoneTEFUDE 4-axis robotic arm marketed for food industries
- —LaunchTFD-RD4 four-axis robot product page
- —MilestoneTFD-RD4 product description on TEFUDE site
- —MilestoneTEFUDE company established
Compare with peers
More by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY
Frequently asked questions
- Who makes the TFD-R1100?
- The TFD-R1100 is developed by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY, based in China.
- What type of robot is the TFD-R1100?
- The TFD-R1100 is a Industrial Arm made by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY.
- How much does the TFD-R1100 cost?
- The TFD-R1100 is listed at $11,800 USD in the Robolist catalogue, but this figure is unverified and not confirmed by FOSHAN TEFUDE AUTOMATION SCIENCE & TECHNOLOGY — contact them for a quote.
- What are the key specifications of the TFD-R1100?
- Key specifications of the TFD-R1100: arm class medium payload, payload 12 kg, reach 2200 mm, repeatability ±0.1 mm, weight 57 kg.
