Overview

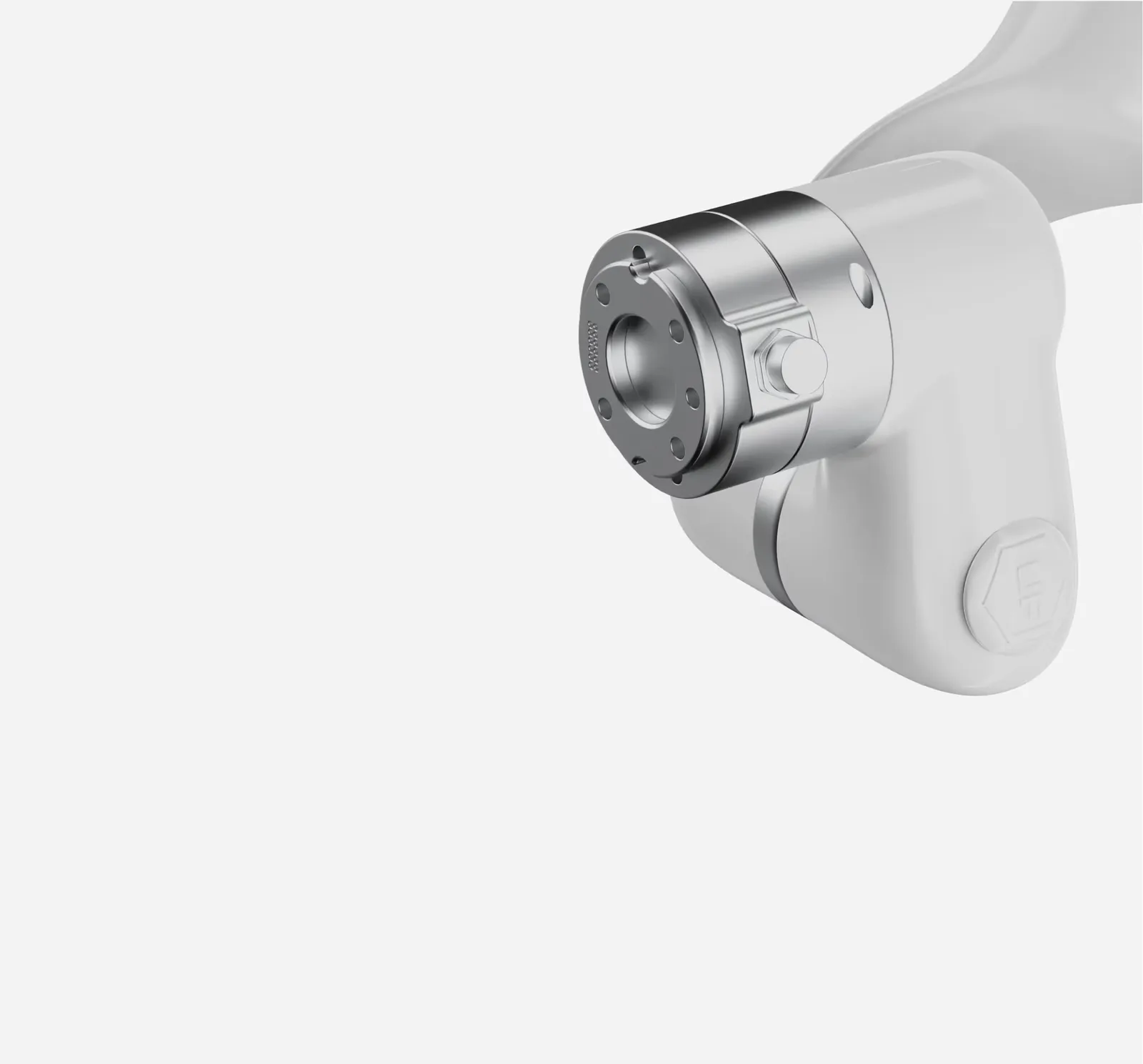

A versatile robotic arm with 7 degrees of freedom and a 3.5kg payload capacity, designed for intricate tasks where flexibility and precision are essential.
Flagship features
- **Software Ecosystem:** Open-source Python/C++ SDK; ROS/ROS2 packages; open-source APIs on GitHub; interfaces with any product that has an API; ModBus RTU (RS485) hardware compatibility
- **Notable Features:** Self-collision free design; safety boundary configuration; trajectory recording; offline task programming; 3D simulation; ISO Class 5 cleanroom rating
- **Certifications:** CE certified; certification available through ATMAE (Association of Technology, Management, and Applied Engineering)
- **Financing:** Standard purchase model
- **Applications:** Pick and place, simple assembly tasks, light industrial automation
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 5
- Payload
- 3 kg
- Reach
- 700 mm
- Repeatability
- ±0.1 mm
- Weight
- 11.2 kg
- TCP speed
- 1 m/s
- Mounting
- any
- Controller
- AC Control Box / DC Control Box
- Programming
- drag and drop,code python,code ros
- Tool flange
- ISO 9409-1-50
- Safety cert.
- CE
- Force limiting
- Yes
- Maturity
- commercial
- Industries
- research, education
Detailed specifications
Other5
- Sub Category
- 6-axis
- Max Speed M S
- 1
- Company Country
- US
- Extras.Contact Emails
- sales@ufactory.us,support@ufactory.us
- Additional Information
- - **Unique Selling Points:** Ultra-cost-effective design for tight budgets; industrial-grade actuators for 24/7 operation; built-in control box saves space; hand teaching capability; collision detection for safety; web-based UFACTORY Studio compatible with macOS, Windows, Ubuntu; drag-and-drop graphical programming - **Software Ecosystem:** Open-source Python/C++ SDK; ROS/ROS2 packages; open-source APIs on GitHub; interfaces with any product that has an API; ModBus RTU (RS485) hardware compatibility - **Notable Features:** Self-collision free design; safety boundary configuration; trajectory recording; offline task programming; 3D simulation; ISO Class 5 cleanroom rating - **Certifications:** CE certified; certification available through ATMAE (Association of Technology, Management, and Applied Engineering) - **Financing:** Standard purchase model - **Competitive Differentiators:** 1/2 the price of comparable 6-axis robot arms with mainstream performance; 1-year warranty against manufacturer defects; stress tested to last minimum 3 years of full-time use - **Applications:** Pick and place, simple assembly tasks, light industrial automation
