Overview

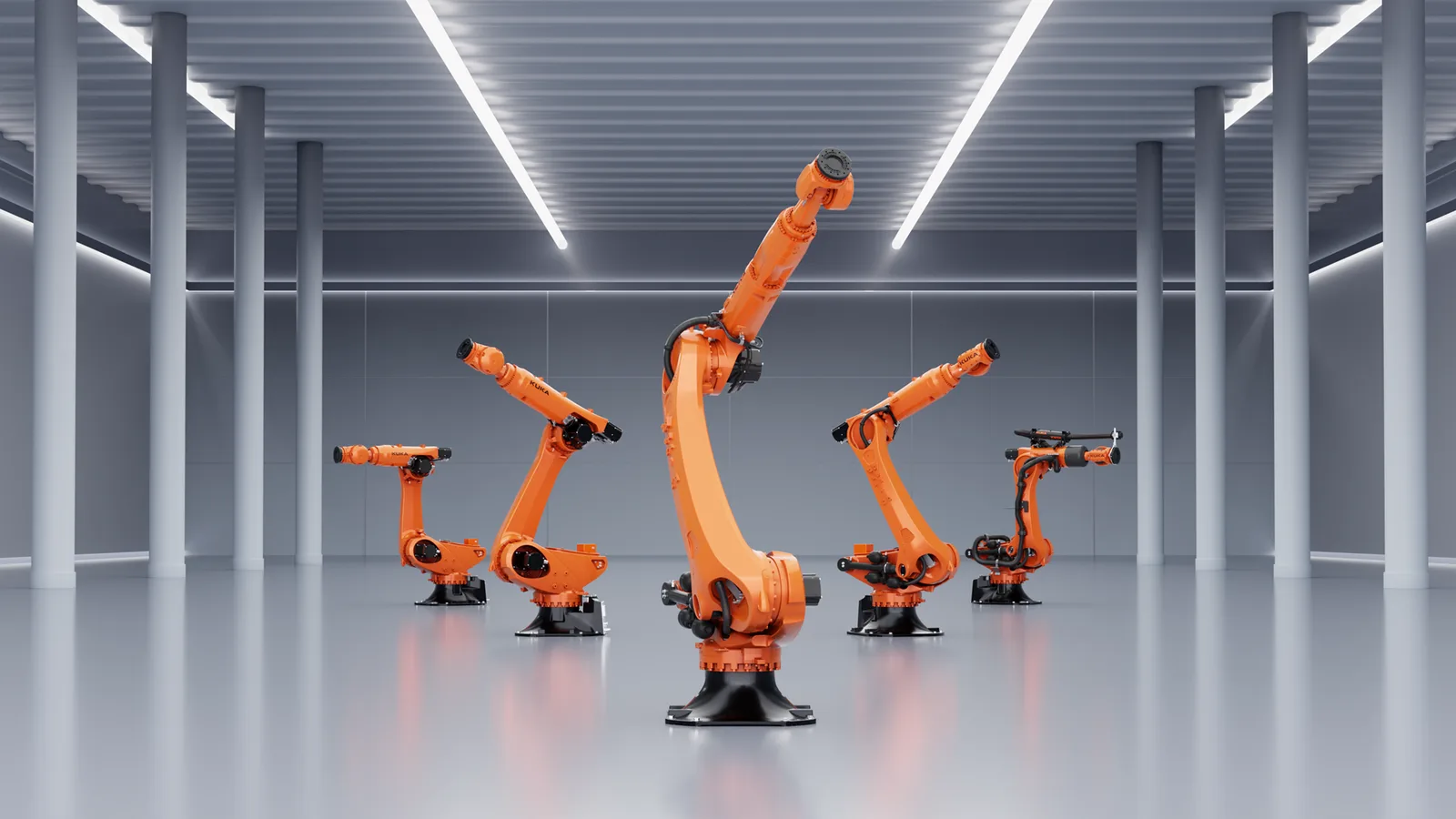

Heavy-duty foundry variant industrial robot with 340 kg payload capacity and 3400 mm maximum reach. Part of KUKA's KR FORTEC series, specifically designed for harsh foundry environments. Features waterproof and dustproof wrist as standard, low maintenance requirements, and high reliability. Can operate in extended temperature ranges and harsh conditions while maintaining energy efficiency and precision for heavy-duty applications.
Specifications
Category: Industrial Arm- Arm class
- palletizing
- Axes
- 6
- Payload
- 340 kg
- Reach
- 3400 mm
- Repeatability
- ±0.08 mm
- Weight
- 1728 kg
- IP rating
- IP65
- Mounting
- floor
- Controller
- KR C5
- Safety cert.
- IP65, IP67
- Force limiting
- No
- Maturity
- scaled
- Industries
- logistics, production of consumer goods, food industry
Detailed specifications
Motion & kinematics1
- Dof
- 6
Safety & certifications1
- Ip Rating Wrist
- IP67
Other12
- Industries
- metal_fabrication,consumer_goods,energy,electronics,automotive
- Price Tier
- 40-80K
- Applications
- palletizing
- Sub Category
- palletizing
- Operating Temp
- 0°C to 55°C
- Cleanroom Class
- Class 5
- Company Country
- DE
- Deployment Notes
- Widely used in logistics and consumer goods production.
- Availability Status
- available
- Additional Information
- High load capacity of up to 340 kg.,Stacking height up to 3195 mm.,Designed for fast, reliable palletizing.,Offers significant cost reductions due to increased efficiency.
- Temperature Range Max C
- 55
- Temperature Range Min C
- 0
