Overview

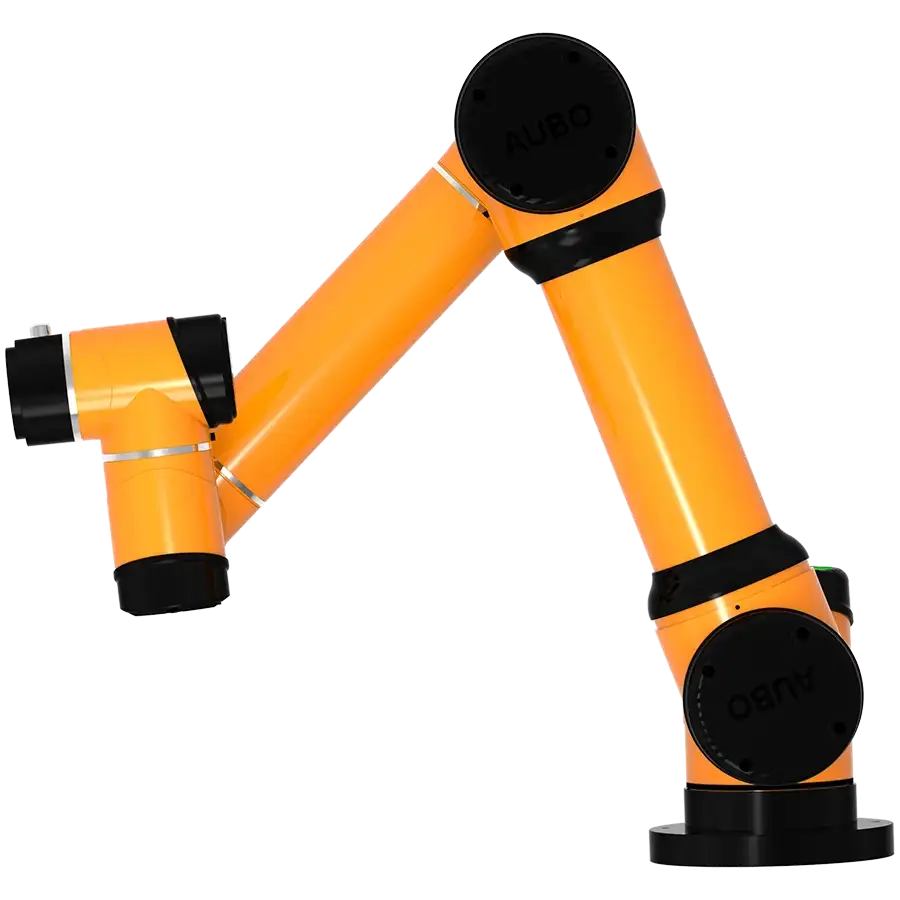

AUBO-E5协作机器人可满足轻量化的作业需求，负载5kg，臂展1008mm，最大工作半径886.5mm，应用范围广泛，配置丰富。
Flagship features
- Open system platform supports multiple communication methods: SDK and API
- Level-10 collision detection and sensor safety testing are supported, so no safety protection is required
- Robots can be operated by dragging teaching, coordinate positioning, path planning, and offline programming
- AUBO collaborative robots are suitable for various industries, including manufacturing, healthcare, and education
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- ≤ 10 kg
- Reach
- ≤ 1350 mm
- Repeatability
- ≤ ±0.1 mm
- Weight
- 38.5 kg
- TCP speed
- 2.8 m/s
- IP rating
- IP54
- Safety cert.
- ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- none
- No-code
- No
- API / SDK
- Yes
Detailed specifications
Power & battery1
- Power Consumption W
- 200
Compute1
- Ros Compatible
- true
Safety & certifications1
- ISO 14644 1 洁净室等级
- 5
Other23
- Price Tier
- 20-40K
- Applications
- pick_and_place,assembly,bagging_palletizing,screwing,polishing,gluing,visual_inspection
- 安装方式
- 任意角度
- 峰值功率
- 1000 W
- 工作半径
- 886.5mm
- 工具速度
- ≤2.8 m/s
- 平均功率
- 200 W
- 最大速度
- 150°/s
- 运动范围
- ±175°
- Pricing Model
- purchase
- Model Variants
- AUBO-E3,AUBO-E5,AUBO-E10
- Operating Temp
- 0-40°C
- Company Country
- CN
- Deployment Notes
- 广泛应用于多个行业。
- Mounting Options
- 任意角度
- Industries Served
- industrial,healthcare,education
- Training Required
- basic_<1day
- Fieldbus Protocols
- Ethernet,Modbus-RTU/TCP,Profinet
- 工作环境湿度
- 90%相对湿度（非冷凝）
- Availability Status
- available
- Extras.Contact Emails
- jiangluya@zjaubo.com
- Programming Interface
- teach_pendant,drag_and_drop,visual_block,code_python,code_ros,no_code_gui,voice,proprietary_app
- Additional Information
- - Open system platform supports multiple communication methods: SDK and API. - Level-10 collision detection and sensor safety testing are supported, so no safety protection is required. - Robots can be operated by dragging teaching, coordinate positioning, path planning, and offline programming. - AUBO collaborative robots are suitable for various industries, including manufacturing, healthcare, and education.
