AUBO-iS25
Built by AUBO Robotics · China· Launched 2023
#65 of 200 ranked Cobot robots (448 listed)
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Strong evidence
No named customers yet. The score uses the rest of its record.
5 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 5 checks with data. Checks without data are left out.
Overview

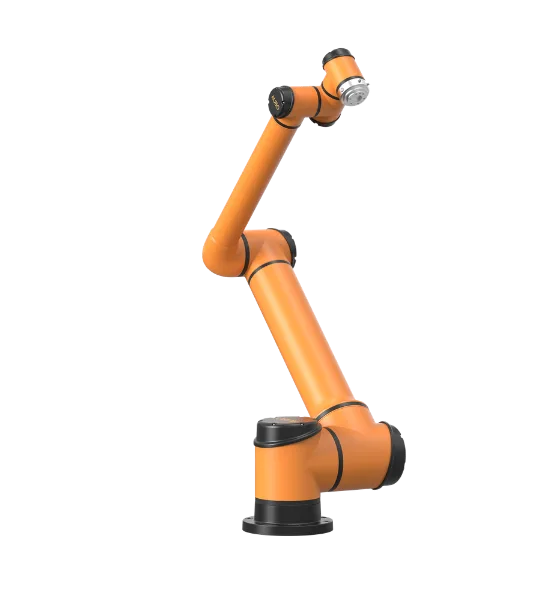

The AUBO-iS25 is a 6-axis collaborative robot with a 25 kg payload and an IP67/68 protection rating, engineered for high-payload applications in environments where exposure to liquids or particulates is a concern. It is part of AUBO Robotics' iS series and supports welding, palletizing, and heavy component handling.
Flagship features
- 该页面为开发者文档页面，主要提供产品规格手册、用户手册、2D/3D图纸下载，未包含详细的技术参数（如负载、臂展、重复精度等）和商业信息（价格、供货、部署案例等）。
- 产品资料下载链接中的PDF手册（约4.77MB）和用户手册（约4.63MB）可能包含完整规格，但文本内容未直接展示。
- 提供每个型号独立的2D尺寸图、运动范围图、基座安装图、末端法兰图以及STEP格式3D模型，方便集成设计。
- 控制器分为AUBO-CB-iS（适配iS3至iS25）和AUBO-CB-iS-H（仅适配iS35）两种型号。
- 产品支持中文页面，主要面向中国市场（公司注册地北京）。
- 属于模块化协作机器人设计，可能支持多种安装方式（根据图纸推测）。
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Six axis collaborative
- 6
- IP67
- CE, ISO/TS 15066, EN ISO 10218-1
- Yes
- None
- Yes
- Yes
- Yes
97% of cobot robots have it
88% of cobot robots have it
63% of cobot robots have it
90% of cobot robots have it
- 25 kg
- 1700 mm
- ±0.05 mm
- 75.6 kg
- ≤ 4 m/s
Carries more than 86% of 430 Cobot robots with this spec
Reaches further than 79% of 402 Cobot robots with this spec
More precise than 27% of 372 Cobot robots with this spec
Heavier than 81% of 259 Cobot robots with this spec
Faster than 84% of 242 Cobot robots with this spec
Detailed specifications
What it is built for1
- 6-axis collaborative robot
Sensing & perception2
- Yes
- Integrated Force Torque Sensor
- not available
Controls & integration4
- Yes
- Compatible Vision
- AUBO smart cameras,VICO industrial lenses
- Training Required
- intermediate_1-5days
- ethernet
Safety & certification1
- 0-50°C
Other details22
- 重量
- 75.6kg
- 产品型号
- AUBO-IS-CB-M
- 供电电源
- 100-240VAC,50-60Hz
- 安装方式
- 任意角度
- 峰值功率
- 3000W
- 工具速度
- ≤3 m/s
- 平均功率
- 1000W
- 最大速度
- {"joint 1":"104°/s","joint 2":"104°/s","joint 3":"178°/s","joint 4":"296°/s","joint 5":"296°/s","joint 6":"296°/s"}
- 运动范围
- {"joint 1":"+-360°","joint 2":"+-360°","joint 3":"+-360°","joint 4":"+-360°","joint 5":"+-360°","joint 6":"+-360°"}
- 通讯协议
- EtherNet、ModBus-RTU/TCP；选配EtherCAT、EtherNet/IP、Profinet
- 防护等级
- IP54（可定制IP67）
- 控制柜尺寸
- 400mm*160mm*320mm
- 控制柜重量
- 12.5kg
- 工作环境湿度
- 90%相对湿度（非冷凝）
- 接口与开放性
- SDK(C++/Pyhton/JavaScript Windows + Linux 系统)，支持ROS/ROS2
- Sdk Language Support
- Python,C++
- Tool Changer Support
- manual
- 控制柜防护等级
- IP43
- 控制柜IO/工具端IO
- {"尺寸":"254mm*213.1mm*40.8mm","重量":"1.0kg","颜色":"橙色+黑色","IP等级":"IP54","产品型号":"AUBO-TP-IS"}
- Offline Programming Support
- proprietary simulator
- 连接机械臂线缆长度
- 5m（可定制，最长8m）
- 连接示教器线缆长度
- 4m
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
14 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2026MilestoneAnnual production milestone
- 2025MilestoneAUBO Robotics corporate profile states company founded in 2015
- Apr 2024MilestoneAUBO Robotics at SIMTOS 2024 in Seoul
- Jul 2023MilestoneAUBO-i3 user manual updated
- Jul 2023MilestoneAUBO-i5 & CB-M user manual published
- 2019MilestoneAUBO-i7 listed in product line at Automate 2019
- Apr 2019DeploymentAUBO at AUTOMATE 2019
- 2015MilestoneCompany founded
Compare with
AUBO Robotics in the news
the maker3 events · last 12 months
- Oct 15CIIF 2026 | From Dexterous Hand to Industrial Dexterous Manipulation: Lingzhang Partners with Aubo Robotics to Showcase Dual-Arm Intelligent Sorting
- Sep 6Aubo Robotics and Black Sesame Intelligence complete first batch product delivery; domestic computing power enables scaled robotics deployment
- Jul 31Equity Transfer: Dongjie Intelligent Takes Over Aubo Robotics with 265 Million Yuan Funding; One of Collaborative Robot 'Big Three' Makes Major Move!
AUBO Robotics in the news
the maker3 events · last 12 months
News about AUBO Robotics, the maker, not about this robot specifically, except rows marked this robot. Collected and classified independently across 2 outlets, so a maker cannot add to it. It never changes this robot's RoboScore (the evidence half of the RoboIndex) and it can move it up a board by at most 15 points. See all AUBO Robotics news
Frequently asked questions
- Who makes the AUBO-iS25?
- The AUBO-iS25 is developed by AUBO Robotics, based in China.
- What type of robot is the AUBO-iS25?
- The AUBO-iS25 is a Cobot made by AUBO Robotics.
- How much does the AUBO-iS25 cost?
- Pricing for the AUBO-iS25 is not publicly listed. Contact AUBO Robotics for a quote.
- When was the AUBO-iS25 launched?
- The AUBO-iS25 was launched in 2023.
- What are the key specifications of the AUBO-iS25?
- Key specifications of the AUBO-iS25: type six axis collaborative, axes 6, payload 25 kg, reach 1700 mm, repeatability ±0.05 mm.
