Overview

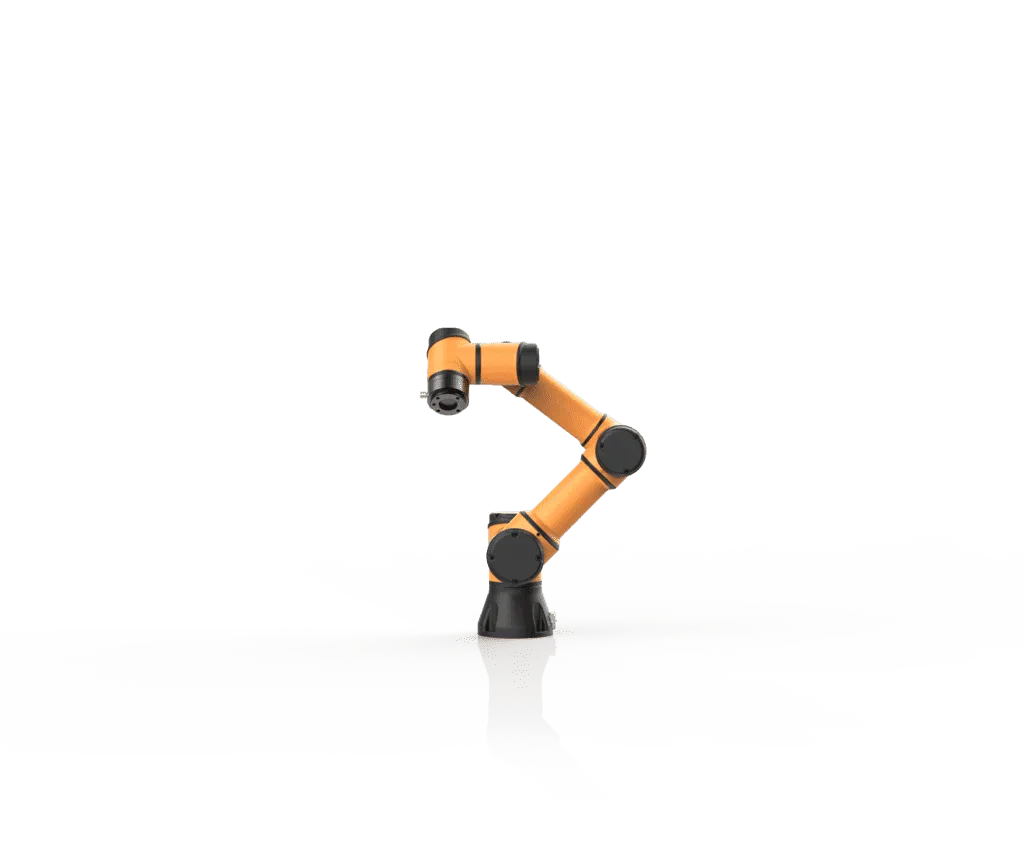

AUBO-i3 is a collaborative robot with a payload capacity of 3kg and a lightweight design of only 16.4kg. It features a working radius of 625mm and can achieve ±360° rotation in all joints. This compact and agile robot is designed for various applications, improving production efficiency while maintaining cost-effectiveness.
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- ≤ 3 kg
- Reach
- 625 mm
- Repeatability
- ±0.05 mm
- Weight
- ≤ 16 kg
- TCP speed
- 1.9 m/s
- IP rating
- IP54
- Safety cert.
- PL=d, CAT 3, CE
- Force limiting
- Yes
- F/T sensing
- none
- No-code
- Yes
- Teach pendant
- teach pendant
- API / SDK
- Yes
Detailed specifications
Motion & kinematics3
- Dof Total
- 6
- Joint Max Speed Deg S
- 237
- Joint Motion Range Degrees
- {"joint_1":360,"joint_2":360,"joint_3":156,"joint_4":360,"joint_5":360,"joint_6":360}
Power & battery2
- Peak Power W
- 1000
- Average Power W
- 150
Compute1
- Ros Compatible
- true
Other11
- Operating Temp
- 0°C to 50°C
- Tool Speed M S
- 2.5
- Company Country
- CN
- Deployment Notes
- Widely applied in sectors such as 3C, automotive, appliance, healthcare, education, and logistics.
- Environment Humidity
- 90% relative humidity (non-condensing)
- Extras.Contact Emails
- support@aubo-usa.com
- Max Working Radius Mm
- 625
- Programming Interface
- code_ros,SDK
- Additional Information
- The i3 features an open SDK supporting C, C++, C#, Lua, and Python.,Designed for integration with various end-of-arm tooling for applications like welding, palletizing, machining, and cutting.,Robust test protocol with over 160 tests ensuring quality and durability before shipping.
- Deployment Environment
- indoor
- Installation Diameter Mm
- 140
