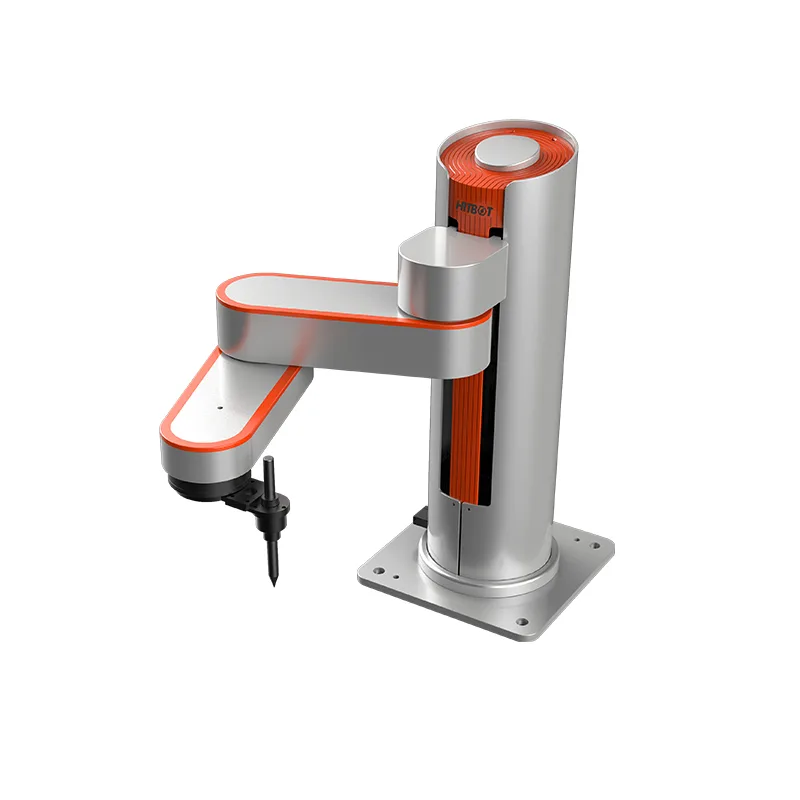

The Z-Arm is a Industrial Arm developed by Hu Nan Qin Feng Robot (China), priced $6,000–$12,000 USD. Key specifications: arm class collaborative, axes 4, payload 3 kg, reach 200 mm.
Robo Index
Strong evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Z-Arm measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview
It is suitable for the stamping site of electronic products, home appliance parts and mechanical parts. The unique invention patent of 'a large-scale workpiece stamping manipulator' and the utility model patent of 'an arm structure for large-scale workpiece stamping manipulator', effectively solve the efficient and stable pick-and-place of large-scale workpieces within 20 kg. The self-developed robot control algorithm is adopted to realize the linkage control of each axis. According to the feeding characteristics of the stamping industry, the optimal motion track is automatically generated, and the action is stable and efficient, with an efficiency of 10-20 times per minute.
Flagship features
- 40% cost reduction due to elimination of traditional reducers
- Supports drag-to-teach (hand-held programming) and SDK
- Collision detection for safe human-robot collaboration
- Applications include 3D printing, welding, laser engraving, screwdriving, dispensing, and visual sorting
- Communication via Wi-Fi and Ethernet
- Built-in motion controller with 22 I/O ports (11 digital inputs, 11 digital outputs)
Buyer decision signals
Viability
Registered establishment date
Specifications
Category: Industrial Arm- Arm class
- collaborative
- Axes
- 4
- Payload
- 3 kg
- Reach
- 200 mm
- Repeatability
- ±0.03 mm
- Weight
- 19 kg
- TCP speed
- 1.25545 m/s
- Mounting
- floor
- Controller
- Built-in Motion Controller
- Programming
- hand-held drag teach, support SDK
- Tool flange
- other
- Force limiting
- Yes
- Maturity
- commercial
- Industries
- manufacturing, education
Company profile
- Founded
- 2006
Detailed specifications
Power & battery4
- Power
- 3.5kw
- Voltage
- Single Phase 220V
- Tool Voltage V
- 24
- Installed Power
- 3.5kilowatt
Compute1
- Ros Industrial Support
- none
Other29
- Shaft
- Four-Axis
- Origin
- China
- HS Code
- 8428909090
- Model NO.
- QF-5043-S3-3
- Trademark
- QINFENG
- Industries
- electronics,general_manufacturing,other
- Hold Firmly
- ≤5kg
- Driving Mode
- Pneumatic
- Sub Category
- SCARA-like collaborative robot
- Specification
- Payload 3kg
- Max Speed M S
- 1.25545
- Core Component
- PLC, Bearing, Motor, Gear
- Price Currency
- USD
- Analog Io Count
- 0
- Company Country
- CN
- Procedure Types
- machine feeding,material handling
- Digital Io Count
- 22
- Price On Request
- true
- Transport Package
- Wood Case
- Arm Rotation Angle
- ±180°
- Repeated Accurancy
- ±0.1mm
- Teach Pendant Type
- wired_button
- Max. Working Radius
- 1650mm
- Production Capacity
- 5000 PCS /Year
- Primary Applications
- assembly,material_handling,other
- Object Rotation Angle
- ±360°
- Additional Information
- - 40% cost reduction due to elimination of traditional reducers. - Supports drag-to-teach (hand-held programming) and SDK. - Collision detection for safe human-robot collaboration. - Applications include 3D printing, welding, laser engraving, screwdriving, dispensing, and visual sorting. - Communication via Wi-Fi and Ethernet. - Built-in motion controller with 22 I/O ports (11 digital inputs, 11 digital outputs). - Marketed as "industrial quality at consumer-grade price." - Multiple unit collaboration and human-machine collaboration supported. - Voltage: 220V/110V 50~60Hz DC 24V. - Height: 578mm, Footprint: 250x250x10mm. - The product listing appears on a B2B marketplace (SCIC) with SEO-spammed keywords like 'high speed automata carrier' and 'programmable swing arm'; actual product is a 4-axis collaborative robot arm.
- Internal Cable Routing
- through_arm
- Service Network Density
- regional
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Hu Nan Qin Feng Robot Corporation Limited or an authorized seller.
Request a quote — goes straight to Hu Nan Qin Feng Robot Corporation Limited.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Dec 2018MilestoneRegistered establishment date
- 2006MilestoneCompany focus begins
Compare with peers
More by Hu Nan Qin Feng Robot
Frequently asked questions
- Who makes the Z-Arm?
- The Z-Arm is developed by Hu Nan Qin Feng Robot, based in China.
- What type of robot is the Z-Arm?
- The Z-Arm is a Industrial Arm made by Hu Nan Qin Feng Robot.
- How much does the Z-Arm cost?
- The Z-Arm is priced $6,000–$12,000 USD.
- What are the key specifications of the Z-Arm?
- Key specifications of the Z-Arm: arm class collaborative, axes 4, payload 3 kg, reach 200 mm, repeatability ±0.03 mm.
