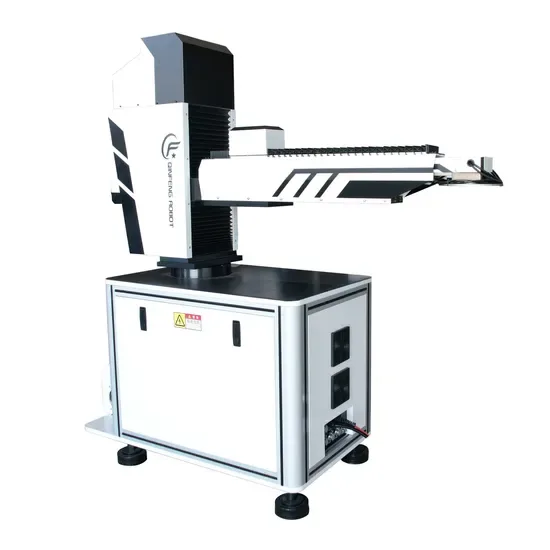

QF-5043-S3-3
Built by Hu Nan Qin Feng Robot · China
The QF-5043-S3-3 is a Industrial Arm developed by Hu Nan Qin Feng Robot (China), priced at $6,000 USD. Key specifications: arm class standard industrial, axes 4, payload ≤ 3 kg, reach 1650 mm.
Robo Index
Speculative — thin evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how QF-5043-S3-3 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview
Suitable for single-axis punching machines with a tonnage of 200T and below, the press center distance is within 3.2m. The size of the grabbed product is recommended to be within 600*600mm. It is suitable for the stamping site of electronic products, home appliance parts and mechanical parts. Unique invention patent of 'a heavy parts staming manipulator' and 'an arm structure for heavy parts stamping manipulator' utility model patent, effectively solve the efficient and stable pick-and-place of major stamping parts within 20kg.
Buyer decision signals
Viability
Registered establishment date
Price
purchase
Availability
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 4
- Payload
- ≤ 3 kg
- Reach
- 1650 mm
- Repeatability
- ±0.1 mm
- Weight
- ~350 kg
- Mounting
- floor
- Programming
- open programmable technology
- Safety cert.
- ISO9001, CE
- Force limiting
- No
- Maturity
- commercial
- Industries
- automotive
Company profile
- Founded
- 2006
Detailed specifications
Motion & kinematics4
- Dof
- 4
- Axis
- Swing axis ±170°, Up and down axis 0~340mm, Front and rear axis 1120~1650mm, Overturn axis ±180°, Revise axis ±360°
- Feeder Accuracy
- ±0.2mm
- Path Accuracy Mm
- 0.2
Power & battery4
- Power
- 3.5KW
- Voltage
- 220V
- Power Frequency
- 50/60Hz
- Power Consumption W
- 3500
Other26
- Duty Cycle
- multi_shift
- Industries
- electronics,home_appliance,mechanical_parts
- Price Tier
- 10-20K
- Robot Weight
- ≈350kg
- Applications
- pick_and_place,assembly
- Cycle Time S
- 4
- Sub Category
- punch_loading_and_unloading
- Pricing Model
- purchase
- Operating Temp
- -20°C to 45°C
- Price Currency
- USD
- Warranty Years
- 1
- Company Country
- CN
- Procedure Types
- flipping,scrapping,side hanging,oblique placing,stacking
- Deployment Notes
- The QF-5043-S3-3 is deployed in various stamping applications, optimizing processes in the automotive and electronics manufacturing industries.
- Price On Request
- false
- Robot Size(L*W*H)
- 1100*600*1750mm
- Working Temperature
- -20~45ºC
- Availability Status
- available
- Compatible Grippers
- suction cup type,pneumatic type,magnetic suction type
- Primary Applications
- material_handling,assembly_line,automotive_stamp
- Additional Information
- * Unique invention patent for large-scale workpiece stamping manipulator. * Self-developed robot control algorithm for optimal motion track generation. * Supports various stamping actions like flipping, scrapping, side hanging, and oblique placing. * Compatible with all types of stamping equipment regardless of tonnage or height. * High-precision core accessories ensure stable and reliable quality with a failure rate lower than 1‰. * Easy installation and mass production within three days with only gripper customization required.
- Temperature Range Max C
- 45
- Temperature Range Min C
- -20
- Expected Service Life Years
- 10
- Productivity (As Per Size Of Product)
- 800~1000 Pcs/h
- Relative Humidity Of Working Environment
- 20~80%
