QF-GJ-H-DL-1800-28-4/5
Built by Hu Nan Qin Feng Robot · China
Not enough evidence to rank. Listed among 1,056 Industrial Arm robots; 231 carry a rank.
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Adequate evidence
No named customers yet. The score uses the rest of its record.
4 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 4 checks with data. Checks without data are left out.
Overview

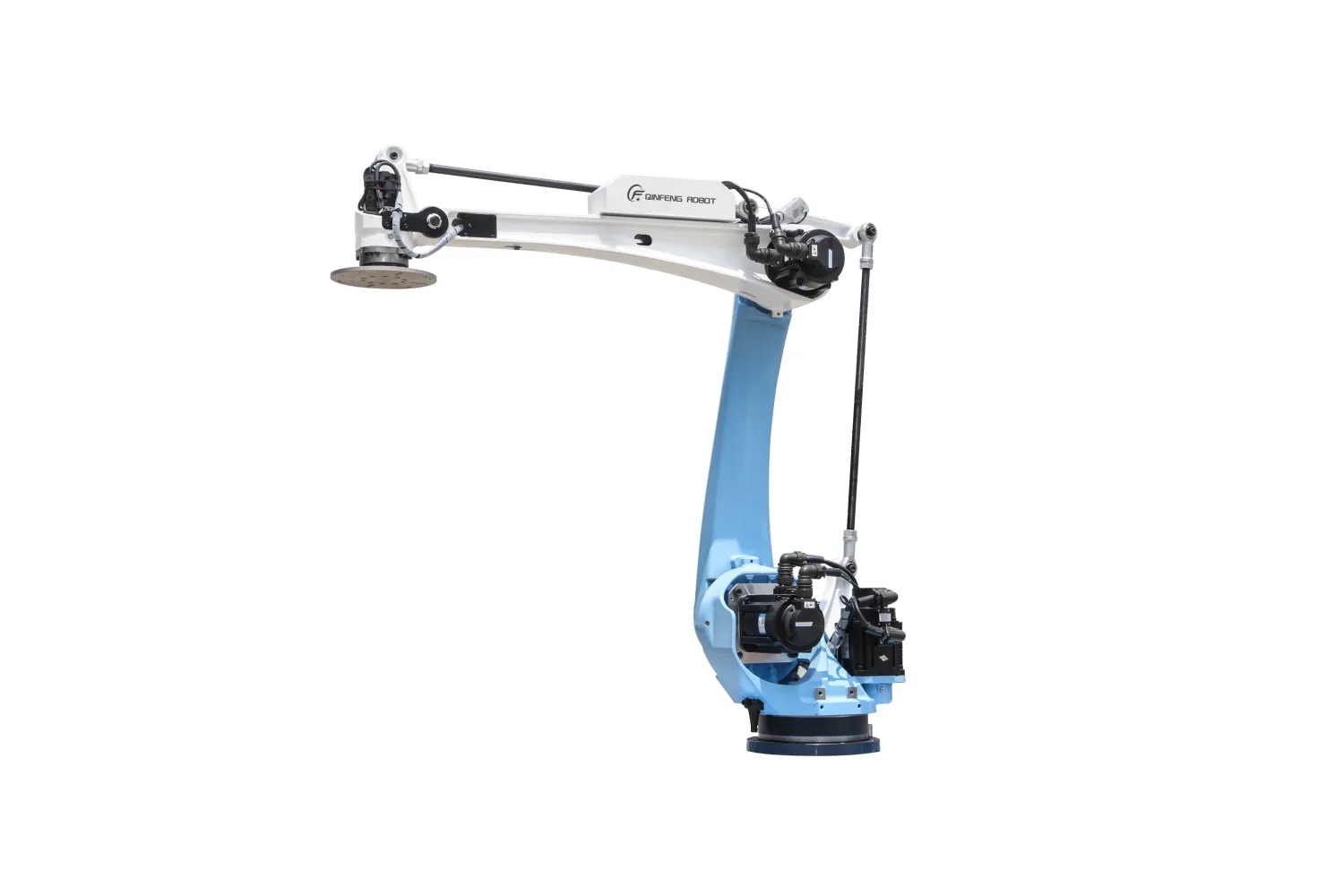

QF-GJ-H-DL-1800-28-4/5 is an industrial arm made by Hu Nan Qin Feng Robot. It weighs 390 kg.
Key specs
- Built for press tending
- Rated for operation at 20~45
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Small payload
- Teach pendant
- Metal fabrication
- ±0.1 mm
More precise than 10% of 646 Industrial Arm robots with this spec
Detailed specifications
What it is built for2
- Applications
- press tending
- stamping manipulator
Movement & precision1
- 4
Safety & certification3
- -20~45
- Temperature Range Max C
- 45
- Temperature Range Min C
- -20
Buying & support3
- 20-40K
- Model Variants
- QF-GJ-H-DL-1800-28-4,QF-GJ-H-DL-1800-28-5
- Price On Request
- Yes
Other details24
- Body Size Mm
- 1470x470x1400 (L*W*H, H is variable)
- Grip Size Mm
- ≤1000x1000
- 抓录度寸
- ≤1000×1000
- 抓录金额
- ≤28 kg
- 电源电压
- 3相5线AC380 50/60HZ
- 装机功率
- 4 KW
- Manufacturer Spec
- QF-GJ-H-DL-1800-28-4/5
- 工作环境温度
- -20–45 ℃
- 最大工作半径
- 1800 mm
- 最大重复精度
- ±0.1 mm
- 最小工作半径
- 350 mm
- 机身尺寸(L*W*H)
- 1470*470*1400(参数H为参函)
- Maximum Spm Pcs Per Min
- 11
- 工作环境相对湿度
- 20-80 %
- Maximum Working Radius Mm
- 1800
- Minimum Working Radius Mm
- 350
- 各关节运动最大范围
- J1 ±160° J2 -35°，+75° J3 -25°，+75° J4 ±300° J5 ±180°(四轴无松)
- 各关节运动最大速度
- J1 174.7 °/S J2 162.1 °/S J3 171.3 °/S J4 455.6 °/S J5 870°(四轴无松)
- 生产效率‘规价多小)
- 11 pcs/min
- Motion Range J1 Deg Speed Deg S
- ±160 (174.7)
- Motion Range J2 Deg Speed Deg S
- -35, +75 (162.1)
- Motion Range J3 Deg Speed Deg S
- -25, +75 (171.3)
- Motion Range J4 Deg Speed Deg S
- ±300 (455.6)
- Motion Range J5 Deg Speed Deg S
- ±180 (870) - Not available on 4-axis models
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- Dec 2018MilestoneRegistered establishment date
- 2006MilestoneCompany focus begins
Compare with
- Compare QF-GJ-H-DL-1800-28-4/5 with ABB IRB-2600RoboScore 80.7
- Compare QF-GJ-H-DL-1800-28-4/5 with KR 120 R3900-2 KRoboScore 78.0
- Compare QF-GJ-H-DL-1800-28-4/5 with YK500TWRoboScore 75.0
- Compare QF-GJ-H-DL-1800-28-4/5 with ABB IRB 120 FlexMoveRoboScore 72.8
- Compare QF-GJ-H-DL-1800-28-4/5 with ABB IRB-4600RoboScore 72.8
Frequently asked questions
- Who makes the QF-GJ-H-DL-1800-28-4/5?
- The QF-GJ-H-DL-1800-28-4/5 is developed by Hu Nan Qin Feng Robot, based in China.
- What type of robot is the QF-GJ-H-DL-1800-28-4/5?
- The QF-GJ-H-DL-1800-28-4/5 is a Industrial Arm made by Hu Nan Qin Feng Robot.
- How much does the QF-GJ-H-DL-1800-28-4/5 cost?
- Pricing for the QF-GJ-H-DL-1800-28-4/5 is not publicly listed. Contact Hu Nan Qin Feng Robot for a quote.
- What are the key specifications of the QF-GJ-H-DL-1800-28-4/5?
- Key specifications of the QF-GJ-H-DL-1800-28-4/5: arm class small payload, repeatability ±0.1 mm, programming teach pendant, industries metal fabrication.
