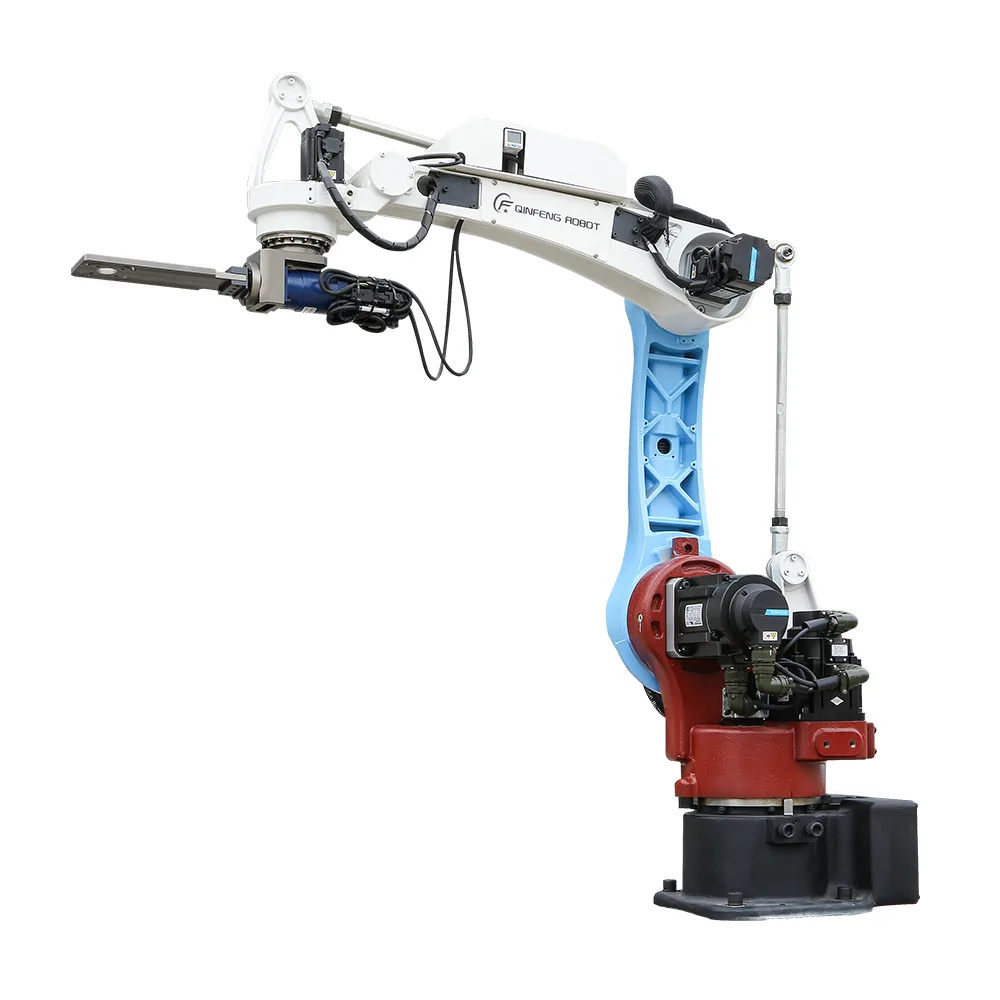

QF-GJ-J-DL-1400-10-4/5
Built by Hu Nan Qin Feng Robot · China
Not enough evidence to rank. Listed among 1,056 Industrial Arm robots; 231 carry a rank.
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Strong evidence
No named customers yet. The score uses the rest of its record.
4 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 4 checks with data. Checks without data are left out.
Overview
The QF-GJ-J-DL-1400-10-4/5 is a joint-type stamping robot designed for press tending and material handling in stamping operations. It features a compact design to save on-site space and uses high-quality domestic key motion components for stable and reliable operation. It is available in 4-axis and 5-axis configurations, with a maximum working radius of 1400mm and the ability to handle workpieces up to 800x800mm.
Key specs
- Built for press tending and material handling
- Used across metal fabrication and automotive
- Rated for operation at 20°C to 45°C
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Small payload
- Floor
- Proprietary app
- Metal fabrication, automotive
- ±0.1 mm
More precise than 10% of 646 Industrial Arm robots with this spec
Detailed specifications
What it is built for4
- Industries
- metal fabrication,automotive
- Applications
- press tending,material handling
- joint stamping robot
- Primary Applications
- press tending,material handling
Movement & precision1
- 5
Controls & integration1
- No
Safety & certification3
- -20°C to 45°C
- Temperature Range Max C
- 45
- Temperature Range Min C
- -20
Buying & support5
- 40-80K
- purchase
- Model Variants
- QF-GJ-J-DL-1400-6-4/5,QF-GJ-H-DL-1600-10-4/5,QF-GJ-Z-DL-3100-80/120-4/5,QF-GJ-H-DL-1800-28-4/5,QF-GJ-J-YT-1400-10-4/5,QF-GJ-J-DL-1200-6-4/5,QF-GJ-H-DL-1400-10-4/5,QF-GJ-H-DL-2400-55-4/5
- Price On Request
- Yes
- Availability Status
- available
Other details24
- Grip Size
- ≤800╳800
- Body Weight
- ≈230
- Maximum SPM
- 15
- Body Size Mm
- 1200x450x1760
- Motion Range J1
- ±160 (143.9)
- Motion Range J2
- -25, +75 (141.3)
- Motion Range J3
- -75, +75 (248.9)
- Motion Range J4
- ±300 (438.7)
- Grip Size Max Mm
- 800x800
- Body Size (L*W*H)
- 1200╳450╳1760
- Centre Grip Weight
- ≤10
- Centre Grip Weight Kg
- 10
- Max Joint Speed Deg S
- 877.5
- Maximum Working Radius
- 1400
- Minimum Working Radius
- 350
- Maximum Spm Pcs Per Min
- 15
- Maximum Working Radius Mm
- 1400
- Minimum Working Radius Mm
- 350
- Motion Range J1 Deg Deg S
- ±160 (143.9)
- Motion Range J2 Deg Deg S
- -25, +75 (141.3)
- Motion Range J3 Deg Deg S
- -75, +75 (248.9)
- Motion Range J4 Deg Deg S
- ±300 (438.7)
- Motion Range J5 Deg Deg S
- ±180 (877.5)
- Motion Range J5 (N/A For 4 Axes Model)
- ±180 (877.5)
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- Dec 2018MilestoneRegistered establishment date
- 2006MilestoneCompany focus begins
Compare with
- Compare QF-GJ-J-DL-1400-10-4/5 with ABB IRB-2600RoboScore 80.7
- Compare QF-GJ-J-DL-1400-10-4/5 with KR 120 R3900-2 KRoboScore 78.0
- Compare QF-GJ-J-DL-1400-10-4/5 with YK500TWRoboScore 75.0
- Compare QF-GJ-J-DL-1400-10-4/5 with ABB IRB 120 FlexMoveRoboScore 72.8
- Compare QF-GJ-J-DL-1400-10-4/5 with ABB IRB-4600RoboScore 72.8
Frequently asked questions
- Who makes the QF-GJ-J-DL-1400-10-4/5?
- The QF-GJ-J-DL-1400-10-4/5 is developed by Hu Nan Qin Feng Robot, based in China.
- What type of robot is the QF-GJ-J-DL-1400-10-4/5?
- The QF-GJ-J-DL-1400-10-4/5 is a Industrial Arm made by Hu Nan Qin Feng Robot.
- How much does the QF-GJ-J-DL-1400-10-4/5 cost?
- Pricing for the QF-GJ-J-DL-1400-10-4/5 is not publicly listed. Contact Hu Nan Qin Feng Robot for a quote.
- What are the key specifications of the QF-GJ-J-DL-1400-10-4/5?
- Key specifications of the QF-GJ-J-DL-1400-10-4/5: arm class small payload, repeatability ±0.1 mm, mounting floor, programming proprietary app, industries metal fabrication, automotive.
