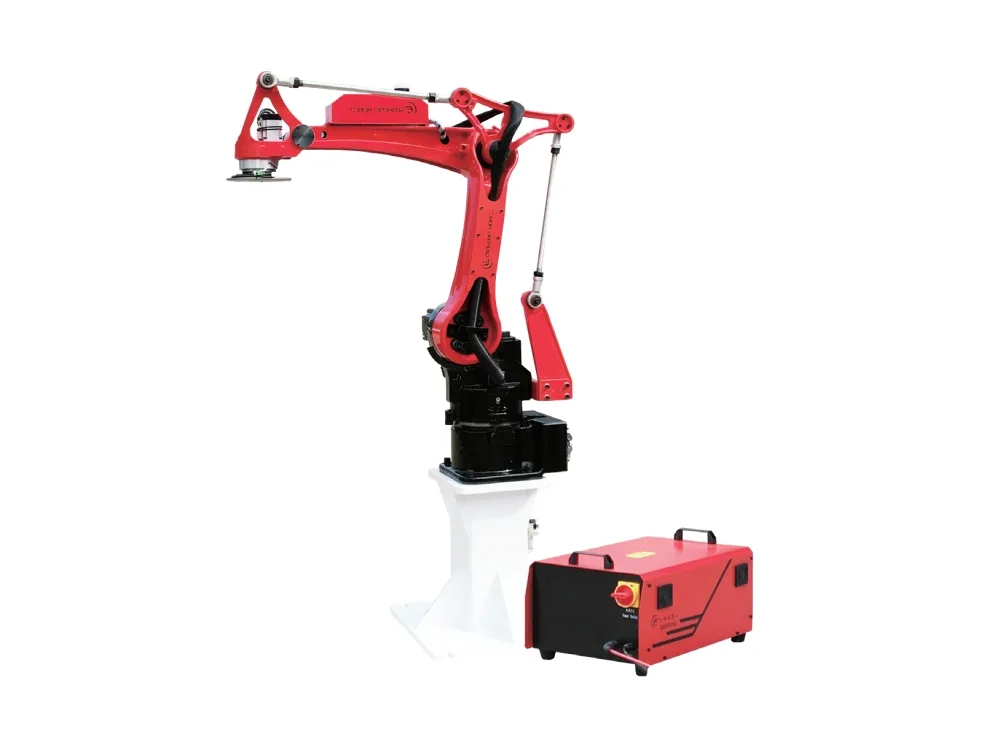

QF-GJ-H-DL-1400-10-4/5
Built by Hu Nan Qin Feng Robot · China
Not enough evidence to rank. Listed among 1,056 Industrial Arm robots; 231 carry a rank.
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Strong evidence
No named customers yet. The score uses the rest of its record.
4 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 4 checks with data. Checks without data are left out.
Overview
A joint stamping robot designed for press tending and stamping automation, with a 1.4-meter maximum working radius and a 10 kg center grip payload. It features built-in cable routing and high-speed motion components from top brands for reliability. The robot offers positioning precision of ±0.1 mm and is available in 4-axis and 5-axis configurations. The 5-axis version reaches up to 15 strokes per minute (SPM) for efficient stamping operations.
Key specs
- Built for spot welding, arc welding and material handling
- Used across metal fabrication
- Rated for operation at 20°C to 45°C
- Backed by a 1-year warranty
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Medium payload
- Proprietary app
- Cat.3 PLd
- Metal fabrication
- ±0.1 mm
More precise than 10% of 646 Industrial Arm robots with this spec
Detailed specifications
What it is built for4
- Industries
- metal fabrication
- Applications
- press tending,pick and place
- joint stamping robot
- Primary Applications
- spot welding,arc welding,material handling
Size & capacity1
- Transport Package
- Wood Case
Movement & precision1
- 5
Safety & certification3
- -20°C to 45°C
- Temperature Range Max C
- 45
- Temperature Range Min C
- -20
Buying & support7
- Origin
- China
- Hs Code
- 8428909090
- Trademark
- QINFENG
- 20-40K
- 1
- Price On Request
- Yes
- Availability Status
- available
Other details30
- Power
- 4KW
- Voltage
- AC 220V
- Condition
- New
- Precision
- High Precision
- Mtbf Hours
- 10000
- Mttr Hours
- 4
- Cycle Time S
- 0.8 kg / 25 mm pick-and-place
- Grip Size Mm
- ≤800×800
- Power Source
- Electric
- Certification
- CE,ISO 9001
- Body Weight Kg
- 275
- Max Speed J1 S
- 152.5/S
- Max Speed J2 S
- 148.7/S
- Max Speed J3 S
- 191.4/S
- Max Speed J4 S
- 360/S
- Max Speed J5 S
- 180/S
- Automatic Grade
- Automatic
- Power Frequency
- 50/60Hz
- 275
- Body Size Lwh Mm
- 1200×450×1920
- Controlling Mode
- Punch Loading and Unloading
- Dual Check Safety
- Yes
- Relative Humidity
- 20% to 80%
- Axis Count Options
- 4 or 5
- Axis Motion Ranges
- {"J1":"±160° (143.9°/s)","J2":"-25°, +75° (141.3°/s)","J3":"-75°, +75° (248.9°/s)","J4":"±300° (438.7°/s)","J5":"±180° (877.5°/s) (N/A for 4-axis model)"}
- Max Spm Pcs Per Min
- 15
- Working Temperature
- -20°C to 45°C
- Maximum Working Radius Mm
- 1400
- Minimum Working Radius Mm
- 350
- Max Precision Repeatability
- ±0.1mm
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- Dec 2018MilestoneRegistered establishment date
- 2006MilestoneCompany focus begins
Compare with
- Compare QF-GJ-H-DL-1400-10-4/5 with ABB IRB-2600RoboScore 80.7
- Compare QF-GJ-H-DL-1400-10-4/5 with KR 120 R3900-2 KRoboScore 78.0
- Compare QF-GJ-H-DL-1400-10-4/5 with YK500TWRoboScore 75.0
- Compare QF-GJ-H-DL-1400-10-4/5 with ABB IRB 120 FlexMoveRoboScore 72.8
- Compare QF-GJ-H-DL-1400-10-4/5 with ABB IRB-4600RoboScore 72.8
Frequently asked questions
- Who makes the QF-GJ-H-DL-1400-10-4/5?
- The QF-GJ-H-DL-1400-10-4/5 is developed by Hu Nan Qin Feng Robot, based in China.
- What type of robot is the QF-GJ-H-DL-1400-10-4/5?
- The QF-GJ-H-DL-1400-10-4/5 is a Industrial Arm made by Hu Nan Qin Feng Robot.
- How much does the QF-GJ-H-DL-1400-10-4/5 cost?
- Pricing for the QF-GJ-H-DL-1400-10-4/5 is not publicly listed. Contact Hu Nan Qin Feng Robot for a quote.
- What are the key specifications of the QF-GJ-H-DL-1400-10-4/5?
- Key specifications of the QF-GJ-H-DL-1400-10-4/5: arm class medium payload, repeatability ±0.1 mm, programming proprietary app, safety cert. Cat.3 PLd, industries metal fabrication.
