QF-GJ-J-DL-1200-6-4/5
Built by Hu Nan Qin Feng Robot · China
Not enough evidence to rank. Listed among 1,056 Industrial Arm robots; 231 carry a rank.
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Adequate evidence
No named customers yet. The score uses the rest of its record.
4 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 4 checks with data. Checks without data are left out.
Overview

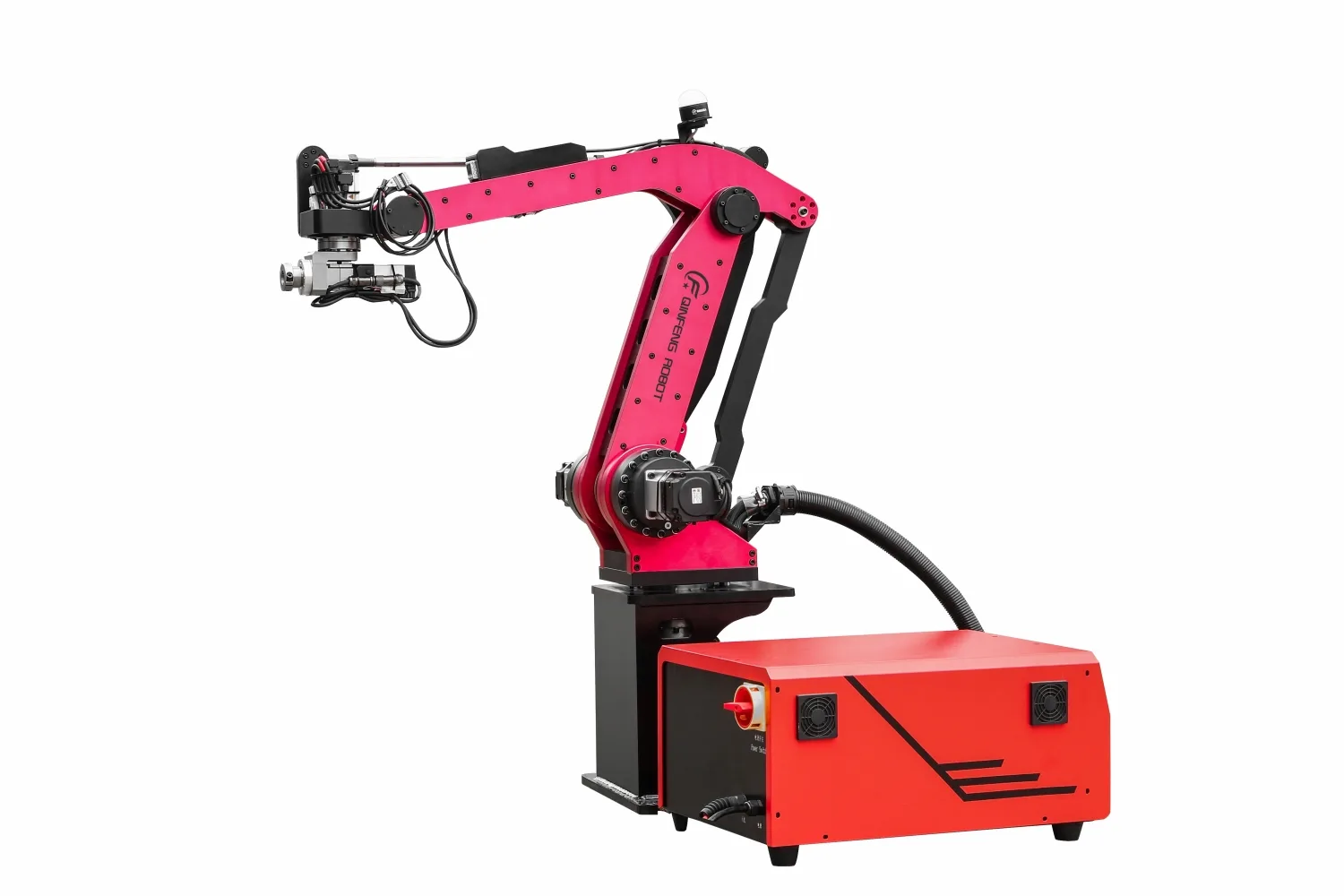

QF-GJ-J-DL-1200-6-4/5 is an industrial arm made by Hu Nan Qin Feng Robot. It weighs 138 kg.
Key specs
- Built for material handling
- Used across metal fabrication
- Rated for operation at 20°C to 45°C
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Medium payload
- Teach pendant
- Metal fabrication
- ±0.2 mm
More precise than 7% of 646 Industrial Arm robots with this spec
Detailed specifications
What it is built for4
- Industries
- metal fabrication
- Applications
- press tending
- stamping manipulator
- Primary Applications
- material handling
Movement & precision1
- 5
Safety & certification3
- -20°C to 45°C
- Temperature Range Max C
- 45
- Temperature Range Min C
- -20
Buying & support5
- 40-80K
- Model Variants
- QF-GJ-J-DL-1200-6-5
- Price Currency
- USD
- Price On Request
- Yes
- Availability Status
- available
Other details15
- 抓取尺寸
- ≤800×800 mm
- 抓取重量
- ≤10 kg
- 电源电压
- 3相5线AC380 50/60HZ
- 装机功率
- 7 KW
- 机器人重量
- ≈300 KG
- 工作环境温度
- -20～45 ℃
- 最大工作半径
- 1400 mm
- 最大重复精度
- ±0.1 mm
- 最小工作半径
- 350 mm
- Max Joint Speed Deg S
- 877.5
- 机身尺寸（L*W*H）
- 1300*800*1650(参数H为变量) mm
- 工作环境相对湿度
- 20-80 %
- 各关节运动最大范围
- J1 ±160°, J2 -25°, +75°, J3 -75°, +75°, J4 ±300°, J5 ±180° (四轴无此项)
- 各关节运动最大速度
- J1 322.2 °/S, J2 215.7 °/S, J3 240.4 °/S, J4 291 °/S, J5 727.5 °/S (四轴无此项)
- 生产效率（视产品大小）
- 15 pcs/min
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- Dec 2018MilestoneRegistered establishment date
- 2006MilestoneCompany focus begins
Compare with
- Compare QF-GJ-J-DL-1200-6-4/5 with ABB IRB-2600RoboScore 80.7
- Compare QF-GJ-J-DL-1200-6-4/5 with KR 120 R3900-2 KRoboScore 78.0
- Compare QF-GJ-J-DL-1200-6-4/5 with YK500TWRoboScore 75.0
- Compare QF-GJ-J-DL-1200-6-4/5 with ABB IRB 120 FlexMoveRoboScore 72.8
- Compare QF-GJ-J-DL-1200-6-4/5 with ABB IRB-4600RoboScore 72.8
Frequently asked questions
- Who makes the QF-GJ-J-DL-1200-6-4/5?
- The QF-GJ-J-DL-1200-6-4/5 is developed by Hu Nan Qin Feng Robot, based in China.
- What type of robot is the QF-GJ-J-DL-1200-6-4/5?
- The QF-GJ-J-DL-1200-6-4/5 is a Industrial Arm made by Hu Nan Qin Feng Robot.
- How much does the QF-GJ-J-DL-1200-6-4/5 cost?
- Pricing for the QF-GJ-J-DL-1200-6-4/5 is not publicly listed. Contact Hu Nan Qin Feng Robot for a quote.
- What are the key specifications of the QF-GJ-J-DL-1200-6-4/5?
- Key specifications of the QF-GJ-J-DL-1200-6-4/5: arm class medium payload, repeatability ±0.2 mm, programming teach pendant, industries metal fabrication.
