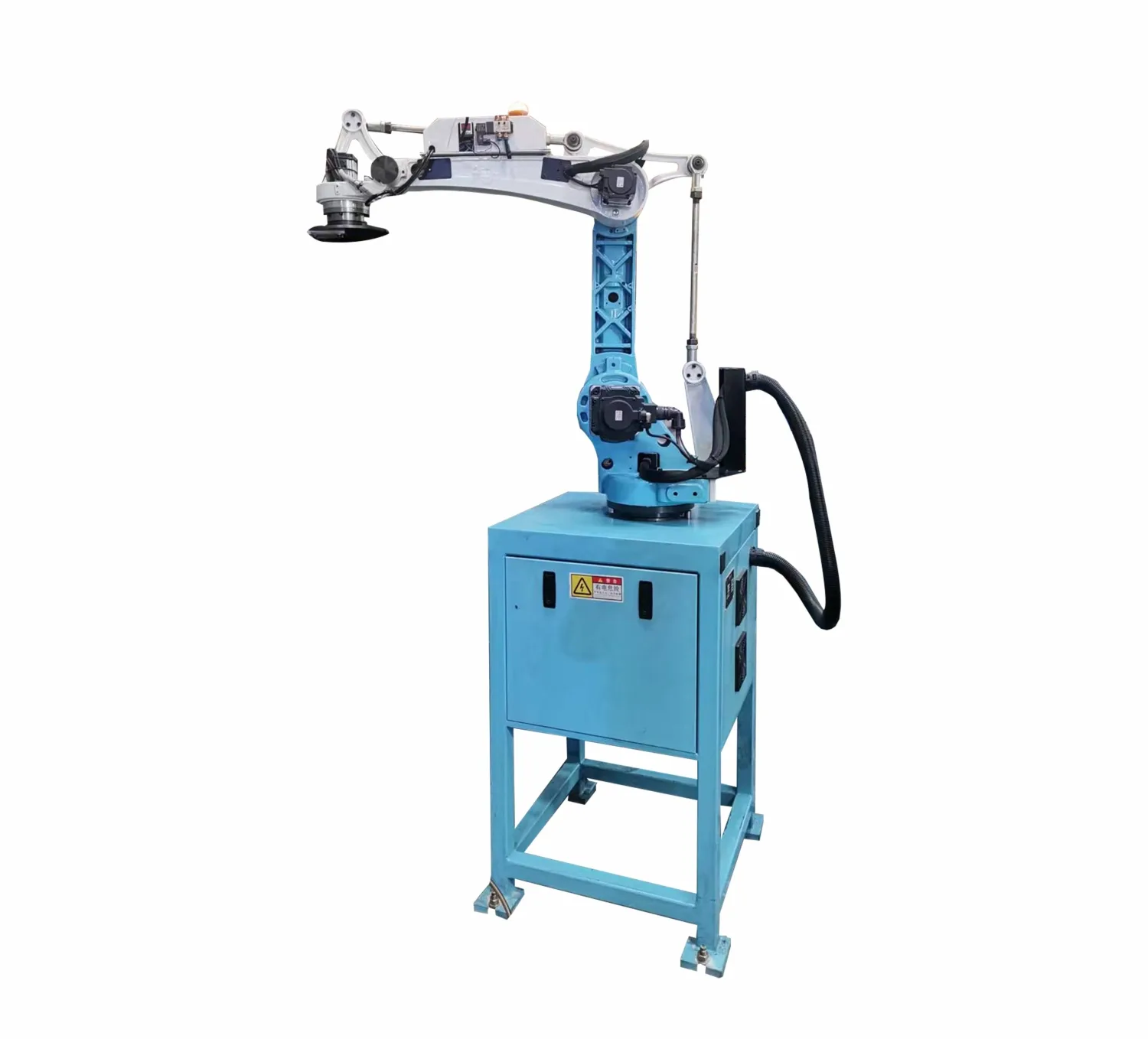

QF-GJ-J-YT-1400-6-4/5 is an industrial arm made by Hu Nan Qin Feng Robot. It weighs 230 kg.

Key specs

  • Built for material handling
  • Used across automotive
  • Rated for operation at 20°C to 45°C

Will it fit your job?

Tell us the job in plain words — we'll show how this robot measures up, line by line.

At a glance

Named customers0No named customers yetCompanyFounded 2006ChinaList priceOn requestNo public price on recordAvailabilityAvailable

Specifications

From the makerCheckedEstimated
Medium payload
Proprietary app
Metal fabrication, automotive
±0.1 mm

More precise than 10% of 646 Industrial Arm robots with this spec

Detailed specifications

What it is built for5
Duty Cycle
continuous 24 7
Industries
automotive
Applications
press tending
stamping
Primary Applications
material handling
Movement & precision1
5
Safety & certification3
-20°C to 45°C
Temperature Range Max C
45
Temperature Range Min C
-20
Buying & support4
20-40K
Model Variants
QF-GJ-J-YT-1400-10-4/5,QF-GJ-J-YT-1400-6-4/5
Price On Request
Yes
Availability Status
available
Other details25
Maximum Spm
15
Grip Size Mm
≤800x800
Gripping Size
≤800×800mm
Image Caption
QF-GJ-J-YT-1400-10-4/5
Gripping Weight
≤10kg
Installed Power
4KW
Robot Dimensions
1220×600×1800mm (H为变量)
Body Size Lxwxh Mm
1220x600x1800
Axis Configurations
4 or 5 axes
Joint 1 Range Speed
±160° (143.9°/s)
Joint 2 Range Speed
-25°, +75° (141.3°/s)
Joint 3 Range Speed
-75°, +75° (248.9°/s)
Joint 4 Range Speed
±300° (438.7°/s)
Joint 5 Range Speed
±180° (877.5°/s) — N/A for 4 axes model
Power Supply Voltage
3相5线AC380 50/60HZ
Maximum Repeatability
±0.1mm
Production Efficiency
15 pcs/min
Maximum Working Radius
1400mm
Minimum Working Radius
350mm
Maximum Working Radius Mm
1400
Minimum Working Radius Mm
350
Maximum Joint Movement Range
{"J1":"±160°","J2":"-25, +75°","J3":"-75, +75°","J4":"±300°","J5":"±180° (四轴无此项)"}
Maximum Joint Movement Speed
{"J1":"143.9°/S","J2":"141.3°/S","J3":"248.9°/S","J4":"438.7°/S","J5":"877.5°/S (四轴无此项)"}
Working Environment Temperature
-20～45℃
Working Environment Relative Humidity
20-80%
